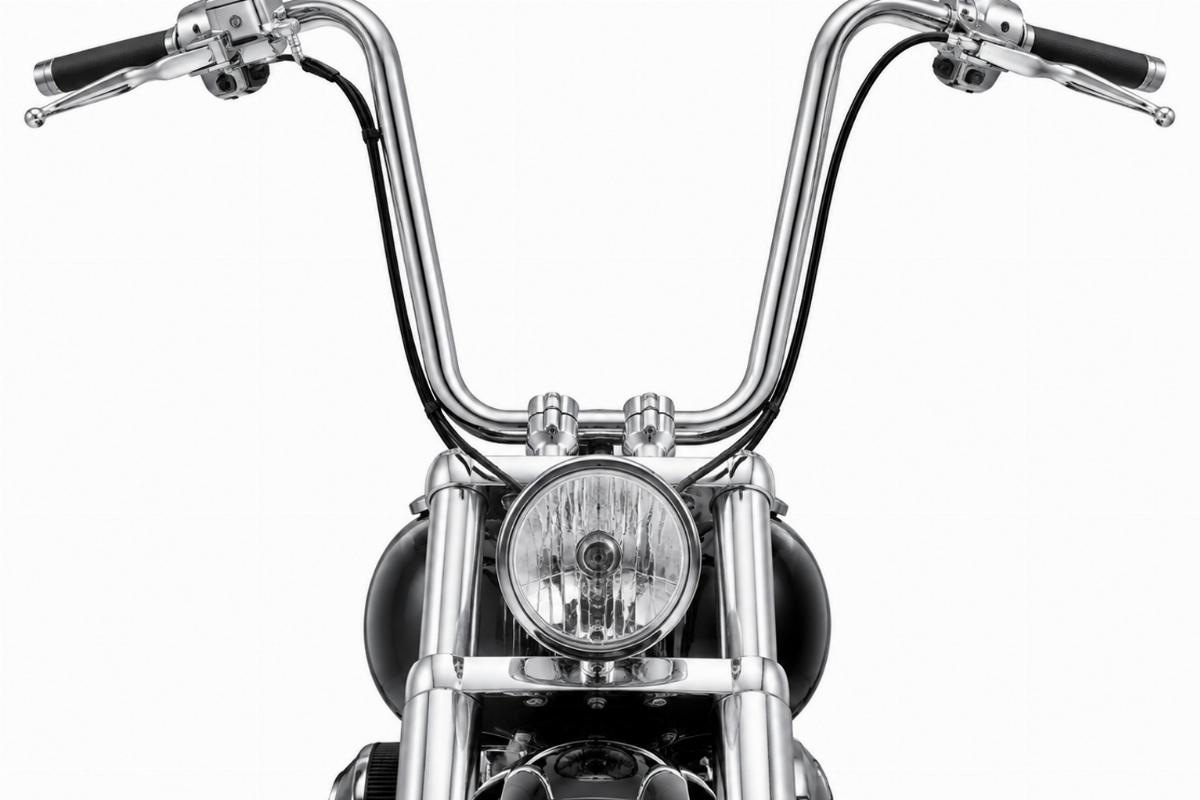

Chrome Ape Hanger Handlebars 16″ Rise – Fits Big Twin 1982-Up
Fitment Verified by Year Range — Every set of ape hanger handlebars for big twin models is checked against the 1982-up platform specifications before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebars |
| Diameter | 1 1/2″ |
| Rise | 16″ |
| Riser Area O.D. | 1″ |
| Pull back | 5″ |
| Finish | Chrome Plated |

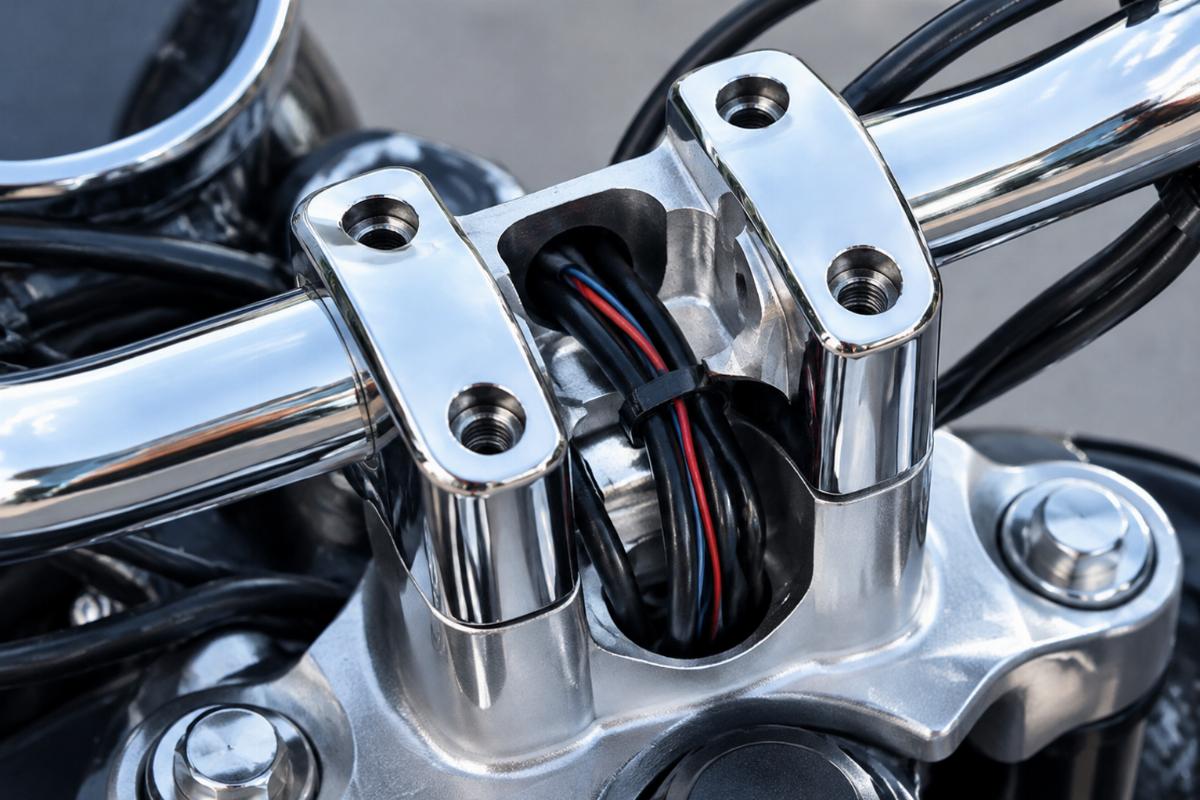

| Wiring | Drilled for internal wiring |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Big Twin | 1982-up | including Fly-By-Wire |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Missing Riser Dimensions Causes Fitment Failures for Ape Hanger Handlebars for Big Twin Builds
Incomplete dimension listings lead to mismatched riser clamps and internal wiring routing failures.
When sourcing ape hanger handlebars for big twin custom projects, buyers often encounter listings that omit the riser area outer diameter or internal wiring drill depth. I still remember a batch of 16″ rise ape hangers shipped to a custom shop where the Fly-By-Wire harness got stuck during routing because the internal wiring drill depth was insufficient for the 1982-up models. We had missed checking the 1″ riser area O.D. against their 1-1/4″ risers, causing a complete halt on the build. Verifying these exact measurements prevents the bike from sitting idle on the lift [NEED_CITE: handlebar dimension variations across custom build requirements].
Checking Riser Area and Control Clamp Compatibility
When fitting these ape hanger handlebars for big twin machines, the 1 1/2″ main diameter must match your control clamps, while the 1″ riser area O.D. dictates which risers will physically seat correctly. If your custom build uses 1-1/4″ risers, this specific 1″ riser area will not fit without an adapter, altering your intended geometry. Always confirm the riser area outer diameter against your existing triple tree setup before finalizing the order.
Routing Fly-By-Wire Harnesses Through Drilled Bars
The internal wiring drill path is critical for 1982-up models equipped with Fly-By-Wire systems. These ape hanger handlebars for big twin applications are drilled for internal wiring, but the depth and exit points must accommodate the specific harness thickness of your model year. A shallow drill depth will trap the harness, while an incorrect exit angle can pinch the wires during full steering lock. Checking the drill specifications against your harness routing plan avoids costly rework [NEED_CITE: wiring harness routing clearances for big twin models].
Interpreting Rise and Pullback for Custom Geometry
A 16″ rise combined with a 5″ pull back significantly changes the rider’s reach and the cable routing path. These dimensions dictate whether your stock brake lines, throttle cables, and Fly-By-Wire harnesses will reach without stretching or kinking. The 1 1/2″ diameter provides the necessary rigidity for this height, but the overall geometry shift means you must verify cable lengths against the new riding position. Ignoring the pull back measurement often results in cables that are too short for the new handlebar placement.
The Hidden Cost of Overlooking Pullback and Drill Depth
Failing to verify the 5″ pull back or the internal wiring drill depth means the handlebars arrive but cannot be safely installed. A mismatched pull back forces the rider into an uncomfortable position or prevents the grips from aligning with the controls. Similarly, if the wiring holes do not align with the triple tree exit points, the harness must be rerouted externally, ruining the clean look of the custom build. These oversights lead to返工, delayed builds, and frustrated customers who blame the parts supplier for poor specification matching [NEED_CITE: custom build delays caused by incorrect handlebar specifications].
Sourcing with Dimensional Certainty
We confirm the fitment of every handlebar against the platform family and model year range before quotation. Our catalog provides key dimensions, including the 1 1/2″ diameter, 16″ rise, and 1″ riser area O.D., ensuring you know exactly what you are ordering. We offer a one-piece minimum order, allowing custom builders to test fit a single set before committing to bulk purchases. Sample supply is available for fitment confirmation, and we cross-reference against Harley-Davidson OEM numbers (reference only) to ensure compatibility with your existing setup.
Documentation Provided with Your Shipment
- Fitment sheet stating the 1982-up Big Twin platform and year range applicability
- Key dimensions sheet detailing the 1 1/2″ diameter, 16″ rise, and 5″ pull back
- Finish specification document for the chrome plated surface
- Cross-reference sheet with Harley-Davidson OEM numbers marked reference only
- Quality inspection record verifying the internal wiring drill depth and clearance
Receiving and Pre-Installation Verification Steps
- Verify the 1 1/2″ diameter and 1″ riser area O.D. match your control clamps and risers
- Measure the 16″ rise and 5″ pull back against your custom build geometry requirements
- Inspect the chrome plated finish for any shipping damage or surface defects
- Check the internal wiring drill holes for depth and clear passage before routing harnesses
- Store the handlebars in a dry environment to preserve the chrome plating before installation
Requesting a Fitment Check for Your Build
Send your specific Big Twin model and year range to verify compatibility with these 16″ rise handlebars. Provide your riser area requirements and confirm if your Fly-By-Wire harness needs specific drill depth clearances. Let us know if you require a single piece sample for a test fit before placing a larger order for your shop.
Frequently Asked Questions
Q: How do I confirm my 1982-up Big Twin model fits these handlebars?
A: Verify that your model falls within the 1982-up Big Twin platform range, including Fly-By-Wire systems. Check that your control clamps accept a 1 1/2″ diameter and your risers match the 1″ riser area O.D. We provide a fitment sheet detailing the exact year ranges and dimensional requirements to ensure proper compatibility before you order.
Q: What key dimensions should I measure to ensure proper fitment?
A: You must measure your existing riser area to confirm it matches the 1″ O.D., and verify your control clamps accept a 1 1/2″ diameter. Additionally, check your cable and harness lengths against the 16″ rise and 5″ pull back to ensure they will reach without stretching. The internal wiring drill depth must also be checked against your specific harness thickness.
Q: Are these handlebars drilled for internal wiring on both sides?
A: Yes, these ape hanger handlebars for big twin models are drilled for internal wiring to support clean custom builds. The drill path is designed to accommodate the harness routing for 1982-up models, including Fly-By-Wire systems. Always verify the drill depth and exit points against your specific harness requirements before installation.
Q: Can I order a single piece for a custom build?
A: Yes, we support a one-piece minimum order, allowing custom builders and repair shops to purchase a single set for a specific project. This is ideal for one-off custom builds where you need to verify the 16″ rise and chrome finish in person. We also offer sample supply for fitment confirmation before you commit to bulk orders.
