Chrome Ape Hanger Handlebars 10″ Rise – Fits Custom Use
Fitment Verified By Platform — Every 1 1/4″ bar is checked against your specific riser spacing and control layout before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Ape Hanger Handlebars |
| Finish | Chrome Plated |
| Outer Diameter | 1 1/4″ O.D. |
| Rise | 10″ |
| Total Width | 35″ |
| Center Width | 10″ |
| Pullback | 9″ |
| Switch Area | Dimpled |
| Riser Area | Knurled |
| Internal Wiring | Drilled |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom use | Confirm with model and year | Designed for risers that mount on 3 1/2″ centers; dimpled at the switch area for use with any year handlebar controls. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Handlebar Listings Fail Custom Builds
Missing dimensions force builders to guess riser compatibility and control placement.
When sourcing ape hanger handlebars motorcycle aftermarket, listings often omit the exact pullback or riser center spacing. I once worked with a builder who ordered 10-inch ape hangers for his Softail build. We shipped them, but he called back because the 9-inch pullback put the grips too far forward, and the 3 1/2-inch riser centers didn’t match his aftermarket trees. He only gave the model, not the exact year or his specific tree spacing [NEED_CITE: frame geometry variations across custom softail builds]. Now I always double-check the rise, pullback, and riser centers before quoting any 1 1/4-inch bars to prevent these geometry mismatches.
Verifying Riser Center Spacing
Before ordering these ape hanger handlebars motorcycle aftermarket, you must confirm your triple tree clamp spacing. These bars require a 3 1/2-inch center width between riser mounts. If your aftermarket trees are set wider or narrower, the 10-inch center width of the bar will not align properly with the clamps. Checking this single dimension prevents the bars from sitting at an awkward angle or stressing the riser mounts during assembly.

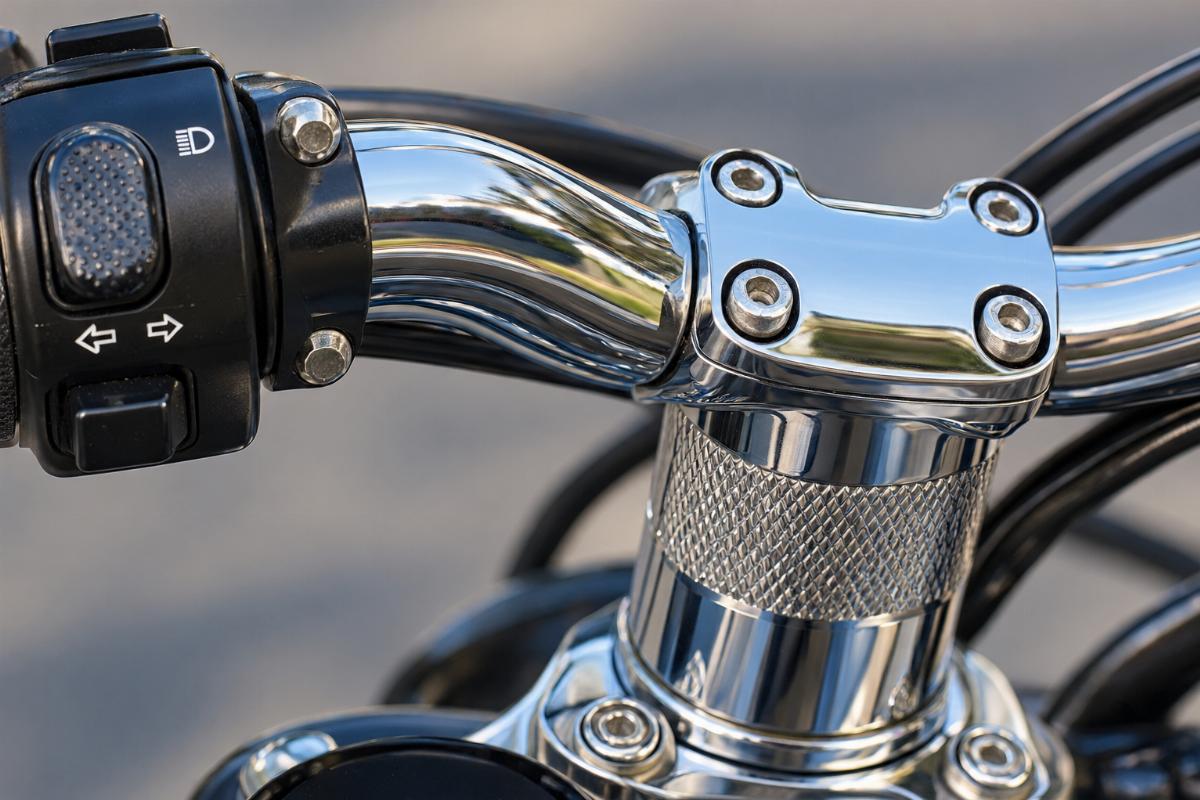

Matching Controls To Dimpled Switch Areas
The switch housing area on these bars is dimpled to accept standard control housings. Because the dimples are placed for any year handlebar controls, you need to verify that your specific switch housings match this standard dimple spacing. If your build uses modified or non-standard switch housings, the dimples might not align, leaving the controls loose or misaligned on the 1 1/4″ O.D. tube [NEED_CITE: switch housing dimple spacing variations by control manufacturer].

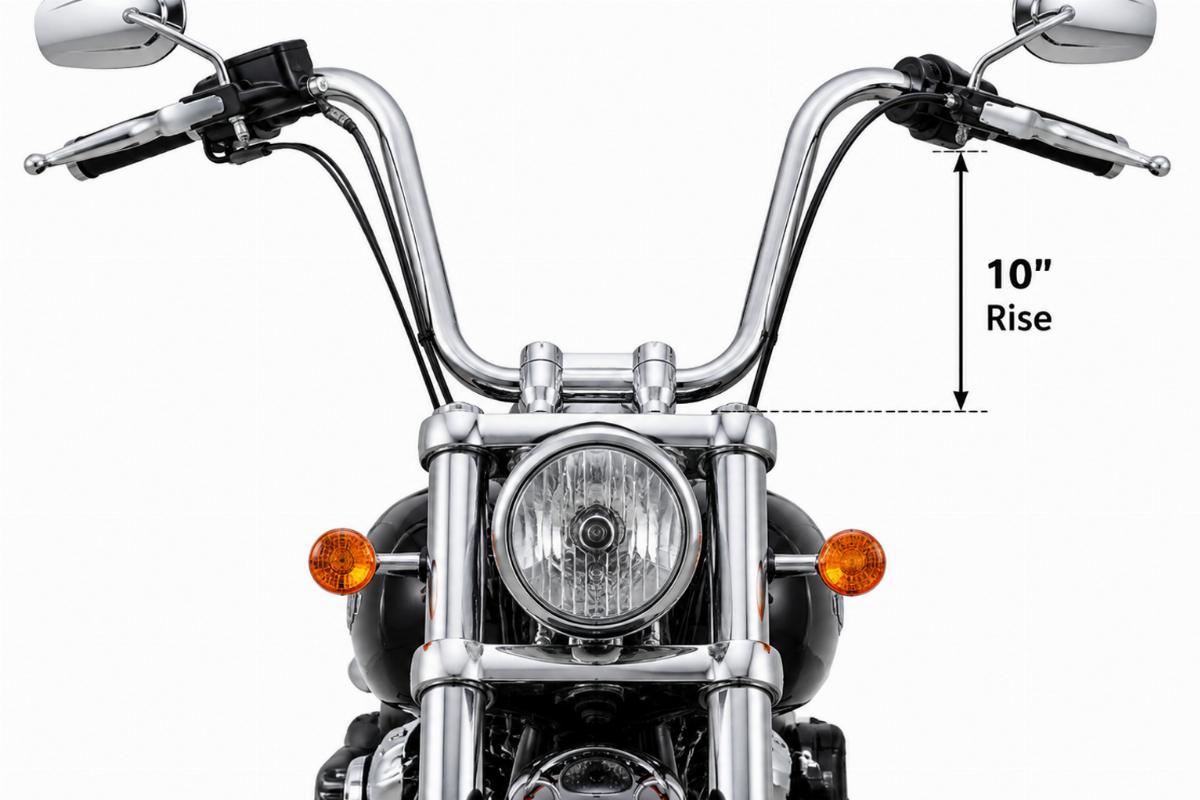

Interpreting The 10-Inch Rise And 9-Inch Pullback
A 10-inch rise combined with a 35-inch total width creates a specific riding posture that changes the steering geometry. The 9-inch pullback brings the grips closer to the rider compared to straight drag bars. When calculating your custom geometry, remember that this pullback alters the reach and can affect how the front end tracks at speed. Always measure your existing setup or mock up the 10-inch rise with temporary risers to confirm the ergonomics suit your build before finalizing the assembly.
The Hidden Cost Of Unchecked Dimensions
Ordering bars without confirming the 3 1/2-inch riser centers means the parts arrive but cannot be mounted without modifying the trees or using offset clamps. A mismatched 9-inch pullback can force the rider into an uncomfortable reach, requiring the bars to be cut or replaced entirely. Furthermore, if the chrome finish varies between batches, mounting mismatched bars side by side ruins the visual symmetry of the front end. These errors stall the build and require returning the parts to find a matching set.
Sourcing From A Fitment-Focused Supplier
We verify the 3 1/2-inch riser center requirement against your specific tree spacing before confirming the order. Every batch of these chrome plated bars is inspected for finish consistency so the plating matches across your entire front end. The 1 1/4″ O.D., 10-inch rise, and 9-inch pullback are measured and recorded on the fitment sheet provided with your shipment. We support single-piece orders, allowing custom builders to purchase exactly one set for a specific project without meeting high minimums. Cross-referencing against your old bar dimensions ensures the new ape hanger handlebars motorcycle aftermarket match your intended geometry.
Documentation Included With Your Shipment
- Fitment sheet stating the 3 1/2-inch riser center requirement and custom use application
- Dimension record confirming the 10-inch rise, 35-inch width, and 9-inch pullback
- Finish specification detailing the chrome plated surface treatment
- Quality inspection record verifying the dimpled switch and knurled riser areas
- Warranty terms covering the chrome finish and structural integrity
Pre-Installation Checks For Builders
- Measure your riser tree spacing to confirm it matches the 3 1/2-inch center width requirement
- Verify the 1 1/4″ O.D. matches your existing riser clamp inner diameter
- Check the dimpled switch area against your specific control housings for proper alignment
- Inspect the chrome plated finish for any plating defects before mounting the bars
- Ensure the drilled holes for internal wiring are clear of debris before routing cables
- Have a qualified technician install the bars to ensure proper clamping without damaging the knurled area
Requesting A Fitment Check
Send your exact model, year, and a photograph of your current riser tree spacing to verify the 3 1/2-inch center requirement. Provide the outer diameter of your risers to confirm compatibility with the 1 1/4″ O.D. tubes. Let us know if you need a single pair for a custom build or multiple sets for inventory, and we will confirm the chrome finish availability.
Frequently Asked Questions
Q: How do I verify these bars will fit my specific riser tree spacing?
A: Measure the distance between the center of your left and right riser mounts on the triple tree. These bars require a 3 1/2-inch center width. If your trees match this spacing, the 10-inch center width of the bars will align correctly with your clamps.
Q: Will the dimpled switch area work with my older control housings?
A: The switch area is dimpled to accept standard handlebar controls across various years. You must compare the dimple spacing on these bars to the clamp width of your specific switch housings to ensure they seat properly without slipping on the 1 1/4″ O.D. tube.
Q: Can I order a single set of these bars for a custom project?
A: Yes, we support single-piece orders for custom builders and repair shops. You can order exactly one pair of these chrome plated bars for your specific build without needing to meet a high minimum quantity requirement for your shop.
Q: How do you ensure the chrome finish matches other front-end parts?
A: We inspect the chrome plated finish on every batch to maintain consistency. When you order these bars alongside other front-end components from our catalogue, we verify the finish specifications so the plating matches visually across your entire custom front end assembly.
