Chrome Ape Hanger Handlebars 1 1/4″ 12″ Rise – Fits Custom Motorcycles
Chrome Finish Verification — Every chrome plated handlebar is inspected for surface consistency before dispatch to ensure uniform appearance across custom builds.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Ape Hanger Handlebars |
| Finish | Chrome plated |
| Diameter | 1 1/4″ O.D. |
| Rise | 12″ |
| Total Width | 35″ |
| Center Width | 10″ |
| Pullback | 9″ |
| Riser Centers | 3 1/2″ |
| Switch Area | Dimpled |
| Riser Area | Knurled |
| Wiring | Drilled for internal wiring |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom motorcycles | Confirm with model and year | Designed for risers that mount on 3 1/2″ centers; compatible with any year handlebar controls. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Do Handlebar Listings Fail at the Triple Tree?
Missing critical dimensions like rise, pullback, or riser center spacing leads to parts that do not fit your specific triple tree or control setup.
I once handled a case where a builder ordered 12-inch ape hanger handlebars for harley-davidson custom projects, but the 1 1/4″ O.D. completely mismatched his 1-inch riser clamps. Worse, the 3 1/2″ riser centers clashed with his 4-inch setup, and the switch area dimples did not align with his controls. He was stuck with unusable bars because the listing omitted basic geometry data [NEED_CITE: triple tree spacing and clamp diameter variations across custom frames].
Verifying Riser Center Spacing and Clamp Diameter
When sourcing ape hanger handlebars for harley-davidson custom platforms, the 3 1/2″ riser centers must perfectly match your triple tree drilling. A mismatch forces builders to drill new holes or use offset risers, compromising the front-end geometry. Additionally, the 1 1/4″ O.D. requires matching riser clamps; mixing 1-inch and 1 1/4″ components guarantees a failed mount.

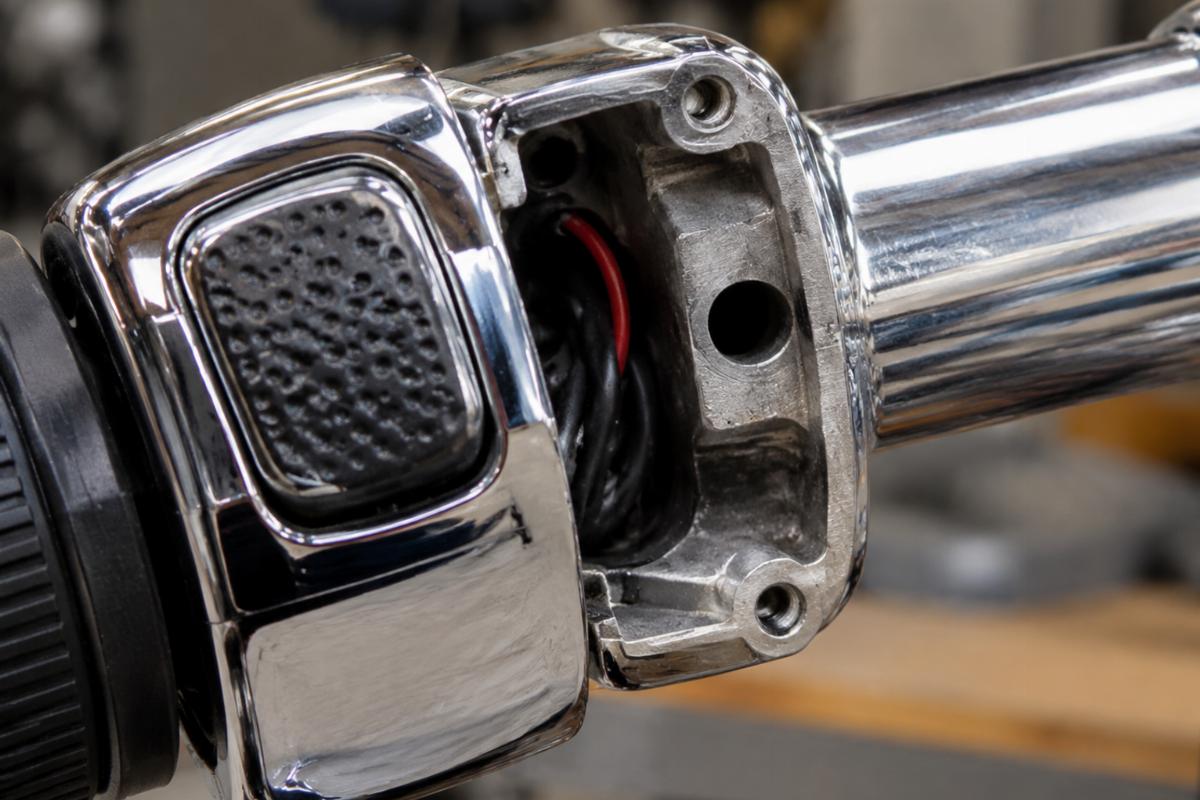

Aligning Switch Dimples and Internal Wiring
The dimpled switch area on these bars is positioned to accept standard handlebar controls without modification. If the dimples are placed incorrectly, the switches will sit at an awkward angle, making operation difficult. The drilled internals allow wiring to pass cleanly through the 1 1/4″ O.D. tube, but the entry holes must align with the riser area to avoid pinching wires during installation [NEED_CITE: wiring routing clearances for 1 1/4 inch handlebars].
Decoding the 12-Inch Rise and 9-Inch Pullback
A 12″ rise combined with a 35″ total width creates a specific stance that changes the rider’s weight distribution. The 9″ pullback brings the grips closer to the rider, which is crucial for comfort on longer rides. The 10″ center width dictates how the bars span across the tank, ensuring adequate clearance for fuel tanks and gauges. These dimensions must be measured against your frame’s neck angle to ensure the bike remains manageable at low speeds [NEED_CITE: steering geometry impacts of high rise handlebars].
The Hidden Cost of Incorrect Handlebar Geometry
Ordering bars without verifying the knurled riser area or pullback often results in the bike sitting in the shop bay for weeks. If the riser centers are off by even a fraction of an inch, the front end cannot be assembled without modifying the triple tree. Furthermore, if the chrome finish varies between batches, mismatched bars ruin the visual symmetry of a custom build. Relying on incomplete listings means paying for return shipping and losing valuable build time.
Securing Fitment and Finish Before Dispatch
We verify the 3 1/2″ riser centers and 1 1/4″ O.D. against your specific triple tree requirements before quoting. Our chrome plated finish is inspected for consistency to ensure both bars match perfectly side by side. We support a minimum order from one piece, allowing custom builders to order a single set for a specific project without bulk commitments. Every dimension, from the 12″ rise to the 9″ pullback, is confirmed against your build specifications prior to dispatch.
Documentation and Inspection Records
- Fitment sheet stating applicable platforms and year ranges for custom motorcycles.
- Key dimensions including 12″ rise, 35″ width, and 3 1/2″ riser centers.
- Chrome finish specification and quality inspection record for surface consistency.
- Cross-reference sheet with OEM numbers marked reference only.
- Warranty terms covering manufacturing and finish defects.
Receiving and Pre-Installation Checks
- Verify the 1 1/4″ O.D. matches your riser clamps before removing the protective wrapping.
- Measure the 3 1/2″ riser centers against your triple tree to confirm alignment.
- Check the dimpled switch area to ensure it aligns with your specific control housings.
- Inspect the chrome plated finish for any shipping damage or surface inconsistencies.
- Confirm the drilled internals are clear of debris before routing wiring.
- Store the handlebars in a dry environment to prevent moisture affecting the chrome.
Requesting a Fitment Check
Send your model and year for a fitment check to ensure these ape hanger handlebars for harley-davidson custom applications match your triple tree. Provide your required finish, quantity, and any specific pullback or rise adjustments needed for your build. We can also supply a sample for fitment confirmation before you commit to a bulk order for your shop.
Frequently Asked Questions
Q: How do I measure my riser centers to confirm these handlebars will fit?
A: Measure the distance between the center of the left riser hole to the center of the right riser hole on your triple tree. These ape hanger handlebars require exactly 3 1/2″ centers. If your measurement differs, the bars will not align properly without modifying the triple tree or using offset risers.
Q: What is the difference between 1″ and 1 1/4″ handlebar diameters for custom builds?
A: The 1 1/4″ O.D. requires matching 1 1/4″ riser clamps and control housings. If your current setup uses 1-inch bars, you must upgrade your risers and potentially your switch housings or use reduction bushings to mount these 1 1/4″ bars correctly.
Q: Are the dimples and wiring holes compatible with my specific year handlebar controls?
A: The switch area is dimpled to fit standard handlebar controls used across most model years. The drilled internals accommodate internal wiring for 1 1/4″ bars. However, you must verify that your specific control housings match the dimple placement and that your wiring harness is long enough for the 12″ rise.
Q: Can I order a single set of handlebars for a custom build without a minimum order quantity?
A: Yes, we support a minimum order from one piece. You can order a single set of these 12″ rise chrome bars for a specific custom build. We also offer sample supply for fitment confirmation if you need to verify the 3 1/2″ riser centers before placing a larger order.
Q: How do I verify the rise and pullback dimensions will suit my bike’s geometry?
A: Compare the 12″ rise and 9″ pullback against your current handlebars or frame geometry. A 12″ rise significantly changes the rider’s posture and weight distribution. Ensure the 35″ total width provides adequate clearance for your fuel tank and does not interfere with the front forks at full lock.
