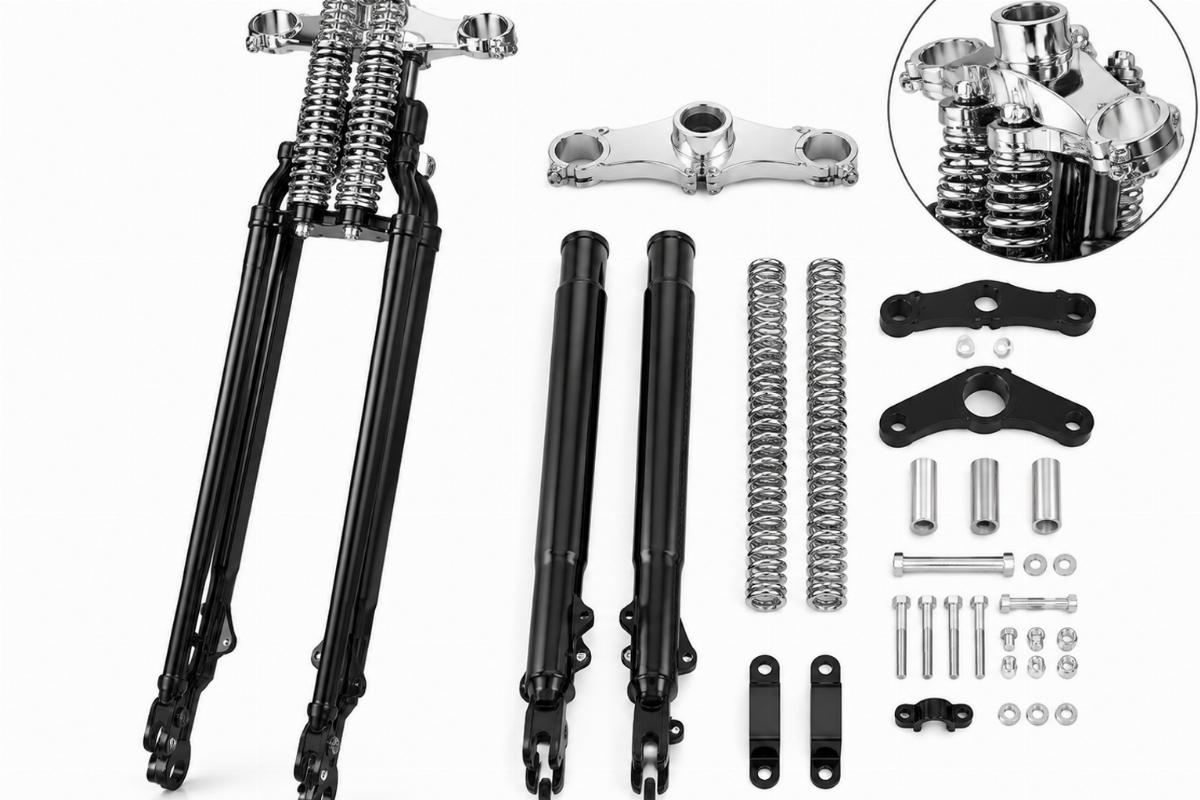

Black Springer Fork Kit 24″ Offset – Fits Custom Springer
Verified Front-End Production — Every 24″ offset springer fork kit is manufactured and inspected under a single account, ensuring consistent geometry and finish across the assembly.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Kit |
| Finish | Black (forks), Chrome (springs, top triple tree) |
| Length | 24″ |
| Offset | Yes (forks are offset; right rocker is NOT offset) |
| Top Triple Tree | Machined chrome design without ears |
| Riser Type | Post risers with stud to top of rear fork legs |
| Leg Thread | 1/2″ x 20 |
| Axle Assembly | 3/4″ (included) |
| Bearing Kit | 1″ taper bearing kit (available separately) |
| Wheel Centering | Use spacers for axle as required |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom springer applications | Confirm with model and year | Designed for custom brake and spool wheel installation |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why a 24″ Offset Springer Fork Kit Demands Strict Tree and Rocker Verification
Over-stock lengths and offset designs alter steering geometry and riser compatibility if frame clearances are not checked first.
When builders select a 24″ offset springer fork kit, the added length changes the rake and trail, which can cause the front fender to interfere with the frame neck or the tank to sit at an incorrect angle. Furthermore, the offset fork tubes combined with a non-offset right rocker mean the axle position shifts relative to the steering stem. If the triple tree width and rocker offset are not measured against the exact frame geometry and custom spool wheel setup, the wheel will sit off-center, ruining the build before it even rolls out [NEED_CITE: frame geometry calculations for over-stock springer lengths].
Checking Triple Tree Width and Riser Compatibility
A machined chrome top triple tree without ears requires specific post risers that mount via a stud to the top of the rear fork legs. If a builder assumes standard clamp-on risers will fit, the assembly fails immediately. Verifying the tree spacing and the stud thread ensures the handlebars align correctly with the rider’s ergonomics and the steering stem bearings seat properly without binding.
Evaluating Rocker Offset for Spool Wheel Centering
The forks on this 24″ offset springer fork kit are offset, but the right rocker is explicitly NOT offset. This specific configuration is designed for custom brake and spool wheel installations where the wheel must be centered using axle spacers. Failing to account for this non-offset rocker when measuring the spool wheel hub width will result in the axle sitting completely off-center, requiring custom spacers or a completely different rocker setup to correct [NEED_CITE: axle spacer requirements for custom spool wheels on offset springers].
Understanding Key Dimensions and Thread Specifications
The 1/2″ x 20 leg threads dictate the compatibility of the fork stops and any custom damping hardware. The included 3/4″ axle assembly must be paired with the correct 1″ taper bearing kit, which is available separately, to ensure the steering head cups and neck bearings match the frame’s steering stem diameter. Mixing up the axle diameter or bearing taper will prevent the front end from assembling or steering smoothly.
The Hidden Cost of Ignoring Offset and Length Details
Ordering a 24″ offset springer fork kit without confirming the triple tree design often leads to the bike sitting on the shop floor for weeks while custom risers are machined or the wheel is re-laced. If the offset is misunderstood, the custom brake caliper mount will not align with the spool wheel rotor, forcing the builder to fabricate new mounts or return the entire front end. These fitment errors compound quickly, turning a straightforward custom build into an expensive delay [NEED_CITE: shop delays caused by mismatched springer fork offsets and triple tree designs].
Sourcing from a Fitment-Focused Front-End Specialist
We confirm fitment against the platform family and model year range before quoting any 24″ offset springer fork kit. Our own production facility handles the springer front ends and chassis hardware, ensuring the black fork finish and chrome components are inspected for batch consistency. We offer a one-piece minimum order, allowing custom builders to purchase a single kit for a specific project without being blocked by bulk requirements. Cross-referencing against Harley-Davidson OEM numbers is provided for identification, marked reference only, to help match the part to the original frame specifications.
Documentation and Inspection Records
- Fitment sheet stating applicable platforms and year ranges for the 24″ length
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions including fork length, offset, and leg thread documented
- Finish specification for black forks and chrome springs
- Quality inspection record verifying batch consistency
- Warranty terms covering the front-end assembly
Receiving and Pre-Installation Checks
- Verify the 24″ overall length and offset design against your frame geometry
- Confirm the machined top triple tree lacks ears and requires post risers
- Check that the right rocker is non-offset for your custom spool wheel
- Ensure the 3/4″ axle assembly and 1/2″ x 20 leg threads match your hardware
- Inspect the black finish on forks and chrome on springs for batch consistency
- Have a qualified technician verify steering head bearing fitment before assembly
Requesting a Fitment Check and Quote
Send your exact model and year, along with photographs or measurements of your current triple tree spacing and spool wheel hub width, to verify if this 24″ offset springer fork kit matches your frame geometry. Let us know if you require the 1″ taper bearing kit or specific axle spacers, and whether you need a sample for fitment confirmation before placing a bulk order for your shop.
Frequently Asked Questions
Q: How does the 24″ over-stock length and offset design affect frame geometry?
A: The 24″ length increases rake and trail, which can alter steering feel and fender clearance. The offset design shifts the axle position, requiring careful measurement of the frame neck and custom spool wheel to ensure the wheel centers correctly and the brake caliper aligns with the rotor.
Q: What riser type is required for the machined top triple tree without ears?
A: Because the top triple tree lacks ears for standard clamps, you must use post risers that mount via a stud to the top of the rear fork legs. This ensures the handlebars are secured directly to the steering stem assembly without relying on ear-based clamping.
Q: Are axle spacers included to center the wheel on this custom front end?
A: The kit includes the 3/4″ axle assembly, but axle spacers are not included. Since the right rocker is not offset, you must source or fabricate the specific spacers required to center your custom spool wheel between the fork legs.
Q: Can I order a single springer fork kit for a custom build?
A: Yes, we support a one-piece minimum order. This allows custom builders and repair shops to purchase a single 24″ offset springer fork kit for a specific project without meeting high volume requirements, and we can supply a sample for fitment confirmation.
Q: How is finish consistency maintained between the black forks and chrome components?
A: The black finish on the fork tubes and the chrome finish on the springs and top triple tree are inspected under our unified quality control process. We provide a finish specification and quality inspection record with your order to ensure batch consistency across the entire front-end assembly.
