Black Springer Fork Kit 18″ – Fits Custom V-Twin
Single Piece Order — We supply this 18 inch springer fork kit for custom v-twin builds with no minimum quantity blocking a one-off project, backed by strict dimensional checks before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Kit |
| Overall Length | 18″ |

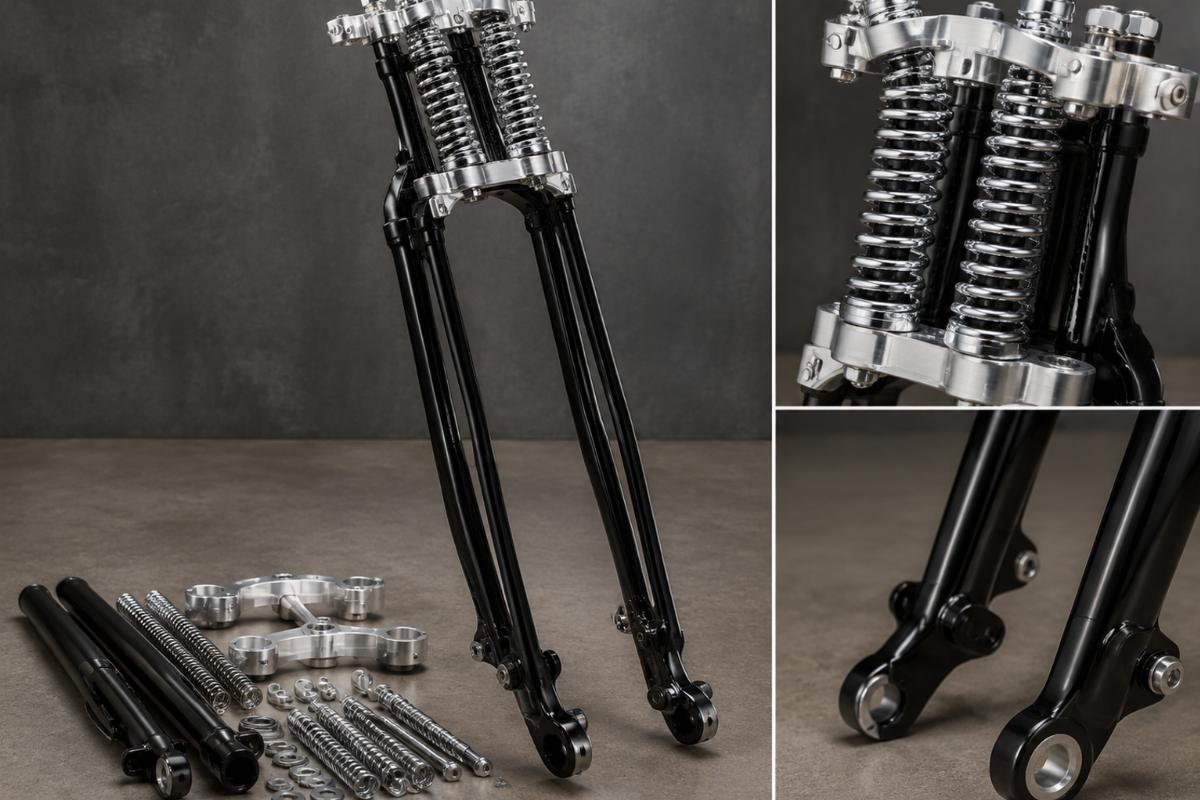

| Finish | Black (fork kit), Chrome (springs), Machined chrome (top triple tree without ears) |

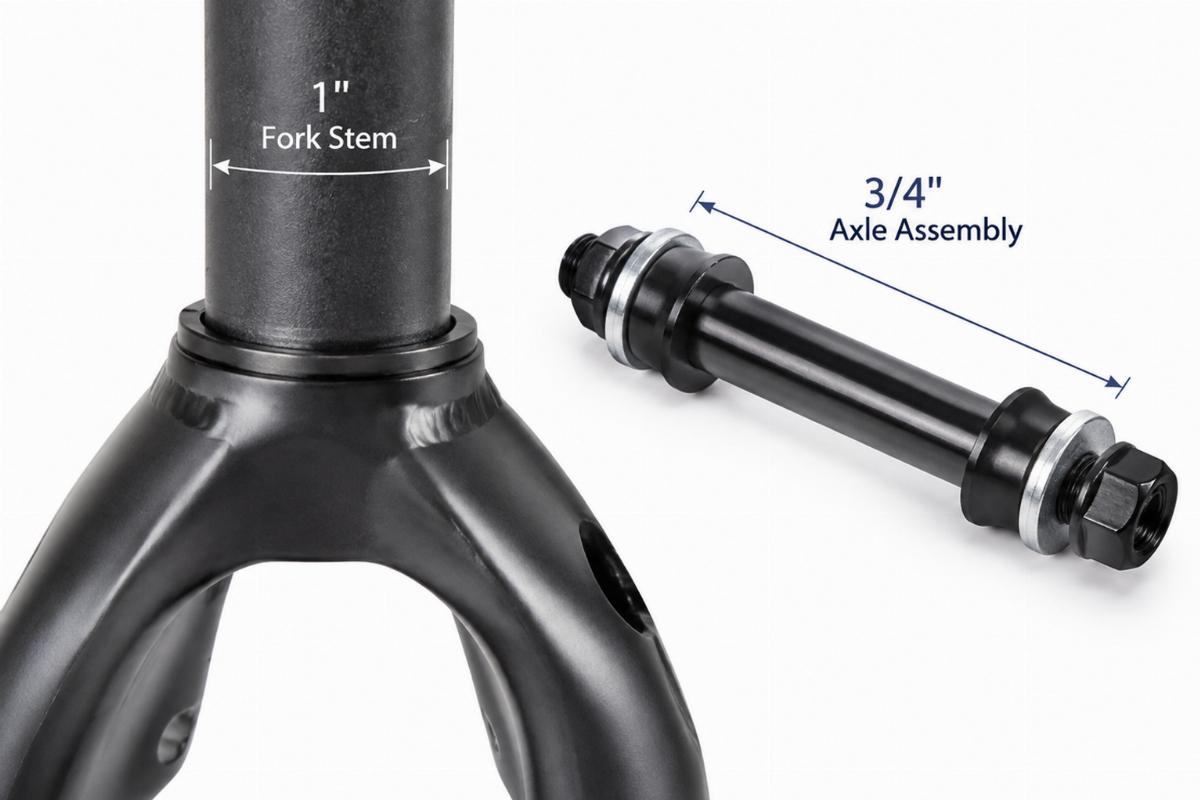

| Fork Stem | 1″ |
| Axle Assembly | 3/4″ |
| Leg Thread | 1/2″ x 20 |
| Rocker Design | Right rocker is NOT offset |
| Kit Contents | Fork kit, 1″ fork stem, 3/4″ axle assembly |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom V-Twin builds | Confirm with model and year | For custom brake and spool wheel installation; use spacers for axle as required to center wheel. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Geometry Details Matter Before Ordering an 18 Inch Springer Fork Kit for Custom V-Twin
Missing stem and rocker specs turn a finished front end into unusable scrap.
Builders often order based purely on visual style, ignoring the 1″ fork stem diameter or the lack of offset on the right rocker. When the 1/2″ x 20 leg thread meets a mismatched post riser, or the 3/4″ axle fails to center a custom spool wheel, the entire assembly must be torn down. Verifying these exact dimensions against your frame neck and hub spacing prevents costly teardowns and idle shop bays [NEED_CITE: frame neck dimension variations across custom hardtail and softail chassis].
Checking Frame Neck and Stem Compatibility
Before mounting this 18 inch springer fork kit for custom v-twin chassis, you must verify the steering head bore matches the included 1″ fork stem. A mismatch here prevents the top triple tree from seating correctly, ruining the steering geometry. We recommend measuring your neck ID and confirming the 1″ taper bearing kit requirement, as bearings are sold separately and vary by frame manufacturer [NEED_CITE: steering head bearing size changes across different custom frame builders].
Verifying Axle and Rocker Offset for Wheel Centering
The 3/4″ axle assembly and the non-offset right rocker design dictate how your custom brake and spool wheel will sit. Because the right rocker lacks offset, you must calculate the exact spacer thickness needed to center the wheel within the fork legs. Failing to measure the hub width and leg spacing before assembly leads to severe alignment issues and uneven brake rotor clearance.
Interpreting Critical Dimensions for Your Build
The 18″ overall length directly alters your ride height and steering rake compared to stock setups. The 1/2″ x 20 leg thread requires matching post risers; if your setup uses a different thread pitch, the studs will not engage safely. The machined chrome top triple tree without ears means you must source compatible handlebar mounts that clamp directly to the tree or use specific riser blocks designed for this exact profile.
The Hidden Cost of Ignoring Rocker and Thread Specs
Ordering a front end without confirming the right rocker offset and leg thread often results in the brake caliper mounting points failing to align with the rotor. Shops frequently face situations where the 1/2″ x 20 thread does not match aftermarket post risers, forcing builders to either re-tap the legs or scrap the kit. These oversights delay project completion and waste material costs on parts that physically cannot bolt together without irreversible modification [NEED_CITE: thread pitch variations in aftermarket custom fork legs].
Sourcing Front Ends with Verified Dimensions
We confirm the 1″ stem, 3/4″ axle, and 18″ length against your specific custom V-twin platform before quoting. Our production covers complete springer assemblies, ensuring the black finish on the legs and chrome on the springs are documented for batch consistency. You can order a single kit for a one-off build, and we provide a fitment sheet detailing every dimension checked prior to dispatch.
Documentation Provided
- Fitment sheet stating applicable custom V-twin platforms and year ranges.
- Key dimensions including 18″ length, 1″ stem, and 3/4″ axle confirmed.
- Finish specification detailing black fork and chrome spring components.
- Cross-reference sheet available if matching against older manual numbers.
- Quality inspection record verifying right rocker non-offset design.
Receiving and Pre-Installation Checks
- Verify the 1″ fork stem and 3/4″ axle assembly are included in the shipping box.
- Measure the 1/2″ x 20 leg thread to ensure compatibility with your post risers.
- Check the black finish and chrome springs for any transit damage before assembly.
- Confirm the right rocker is NOT offset to plan your custom brake mounting.
- Store the kit in a dry environment to prevent surface corrosion before installation.
- Have a qualified technician verify frame neck dimensions for the 1″ taper bearing kit.
Requesting a Fitment Check
Send your custom V-twin frame model, year, and a photo of your current steering neck to confirm the 1″ stem compatibility. Provide your rear hub width and brake rotor spacing so we can verify the 3/4″ axle and spacer requirements for the non-offset right rocker. Let us know if you need a sample kit to test fit your custom brake and spool wheel setup before committing to the final order.
Frequently Asked Questions
Q: How do I confirm this 18 inch springer fork kit for custom v-twin fits my frame geometry?
A: Measure your steering head bore to ensure it accepts the 1″ fork stem. Verify your rear hub width to calculate the spacers needed for the 3/4″ axle, keeping in mind the right rocker is not offset. We provide a fitment sheet confirming these dimensions against your specific custom chassis before dispatch.
Q: What critical dimensions must I measure before ordering this custom springer front end?
A: You must measure the steering neck inner diameter for the 1″ stem and the rear hub width for the 3/4″ axle. Check your post riser thread pitch to ensure it matches the 1/2″ x 20 leg thread. These measurements guarantee the wheel centers correctly and the brake mounts align.
Q: Does the kit include the steering head bearings, or do I need to order them separately?
A: The kit includes the fork kit, 1″ fork stem, and 3/4″ axle assembly. The 1″ taper bearing kit is available separately and is not included. You must order the bearing kit separately to match your specific frame neck dimensions and ensure proper steering function.
Q: Can I order a single springer fork kit for a one-off custom build?
A: Yes, we support a one-piece minimum order for custom builders and shops working on a single project. You do not need to meet a high volume threshold. We will still perform a full fitment check and provide dimensional documentation for your specific custom V-twin application before shipping.
Q: How do you ensure finish consistency between the black fork and chrome springs?
A: We document the finish specification for both the black fork components and the chrome springs to ensure batch consistency. Our production facility tracks these finishes to prevent visible mismatches when parts are fitted side by side. This specification is included in the documentation provided with your order.
