Black Inline Spring Fork Kit 20″ – Fits Custom Springer
Own Springer Production — Direct manufacturing of front-end assemblies ensures exact rocker offsets and triple tree spacing for custom brake setups.
Product Specification
Part Type | Inline Spring Fork Kit
| Parameter | Value |
|---|---|

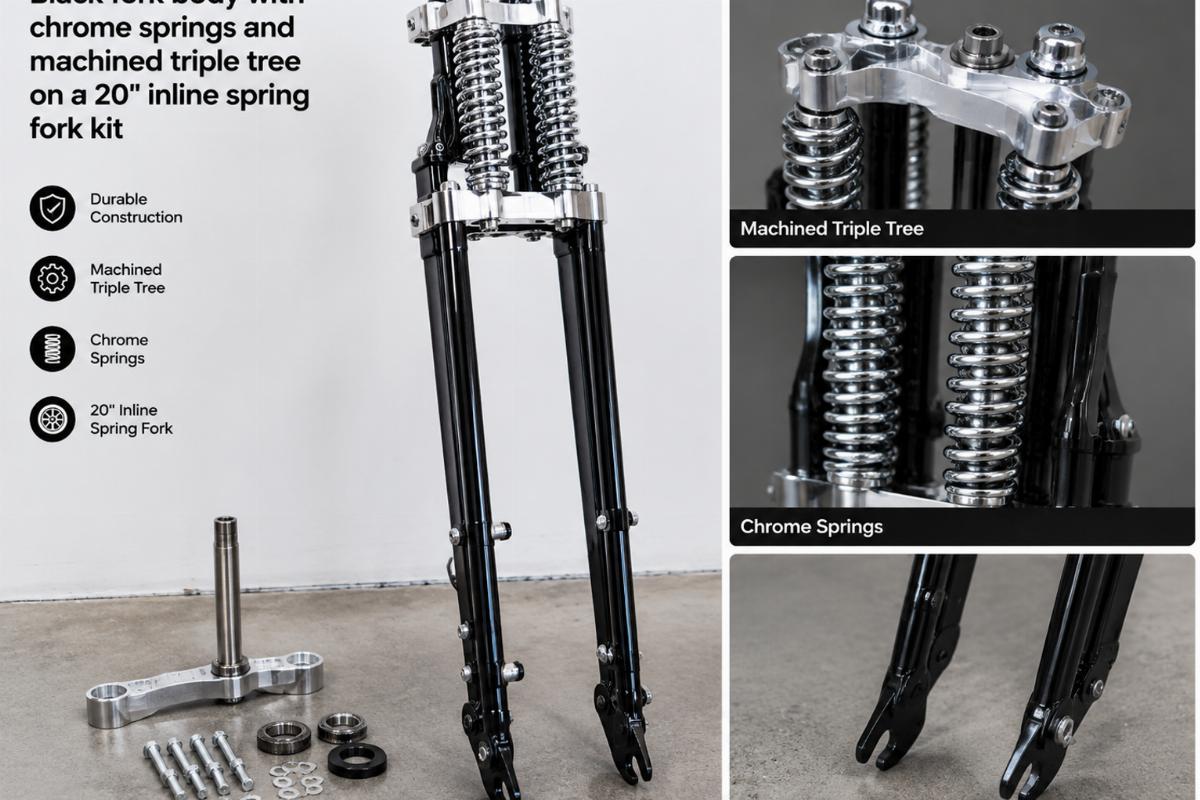

| Finish | Black (fork body), Chrome (springs and top triple tree) |
| Length | 20″ |
| Triple Tree Design | Machined chrome design without ears |
| Riser Compatibility | Post risers with stud to top of rear fork legs |
| Leg Thread | 1/2″ x 20 |
| Axle Assembly | 3/4″ included |
| Rocker Offset | Right rocker is not offset |
| Brake Tab Location | Right side |
| Bearing Kit | 1″ taper bearing kit available separately |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom springer front end applications | Confirm with model and year | Fits custom brake and spool wheel setups; right rocker is not offset; brake tab located on the right side. |
