Black Inline Spring Fork Assembly 22″ 4″ Over Stock – Fitment Checked Custom Springer
In-house Springer Production — Every inline spring fork assembly for custom springer is manufactured in our own facility, ensuring strict dimensional control for accurate fitment and geometry alignment.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Inline Spring Fork Assembly |
| Finish | Black (parkerized springs, rockers, front and rear leg) |

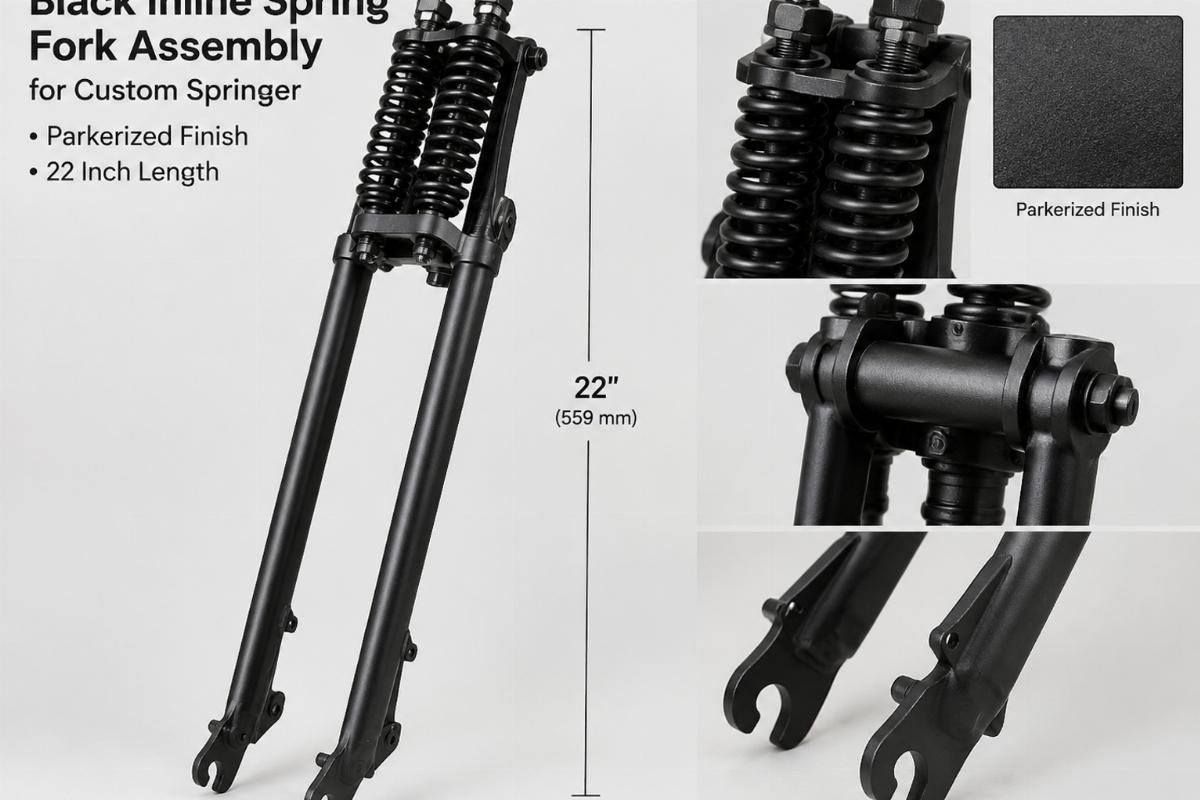

| Overall Length | 22″ (4″ over stock) |
| Stem Type | 1″ inline stem |
| Rocker Mount | Offset outside mount |
| Construction | Electric welded and brazed |
| Measurement Method | From the top of the rear leg (tube) to the front axle center line |

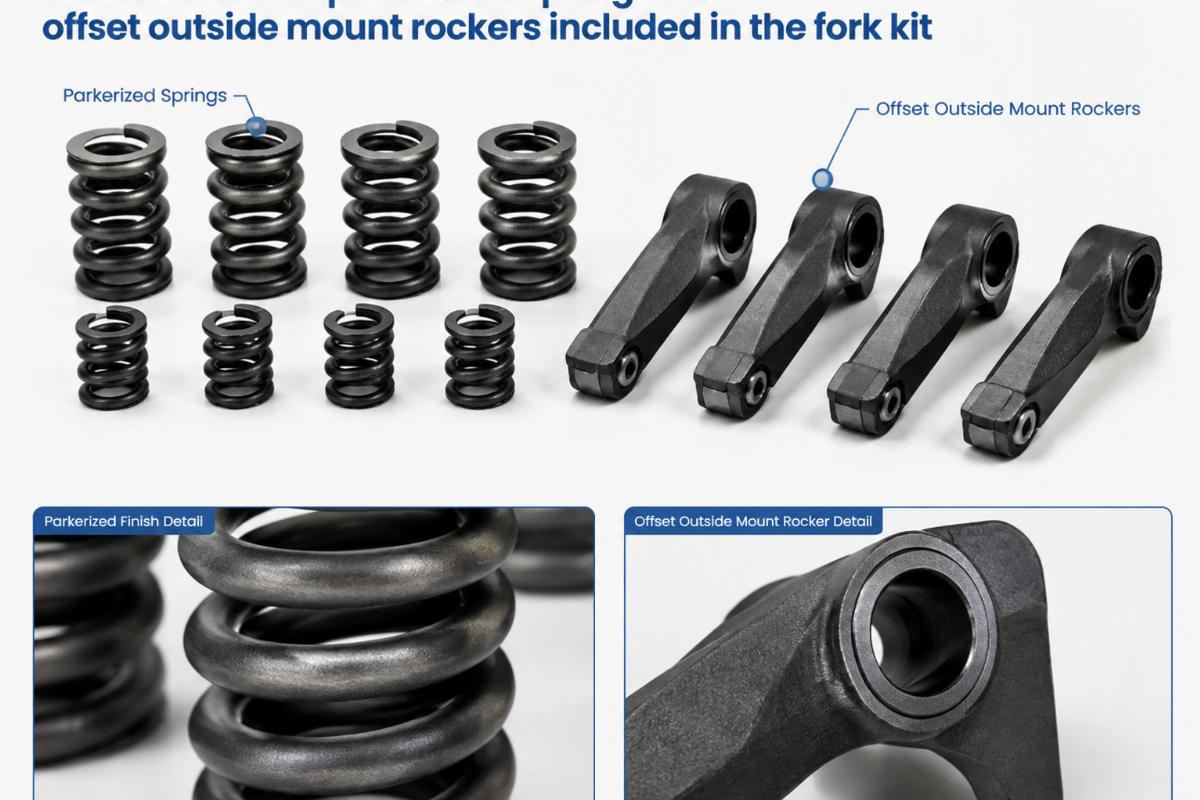

| Kit Contents | Inner and outer springs, front and rear legs, 1″ inline stem, offset outside mount rockers, studs and bushings, spring rods with bushings |
| Not Included | Top clamp, neck races, cone nut |
Fitment Verification
| Platform | Year Range | Notes |
|---|---|---|
| Not stated in source | Confirm with model and year | Replicas of stock units; 4″ over stock length; 22″ assembly. Verify 1″ stem spacing and overall length against specific frame geometry. |
