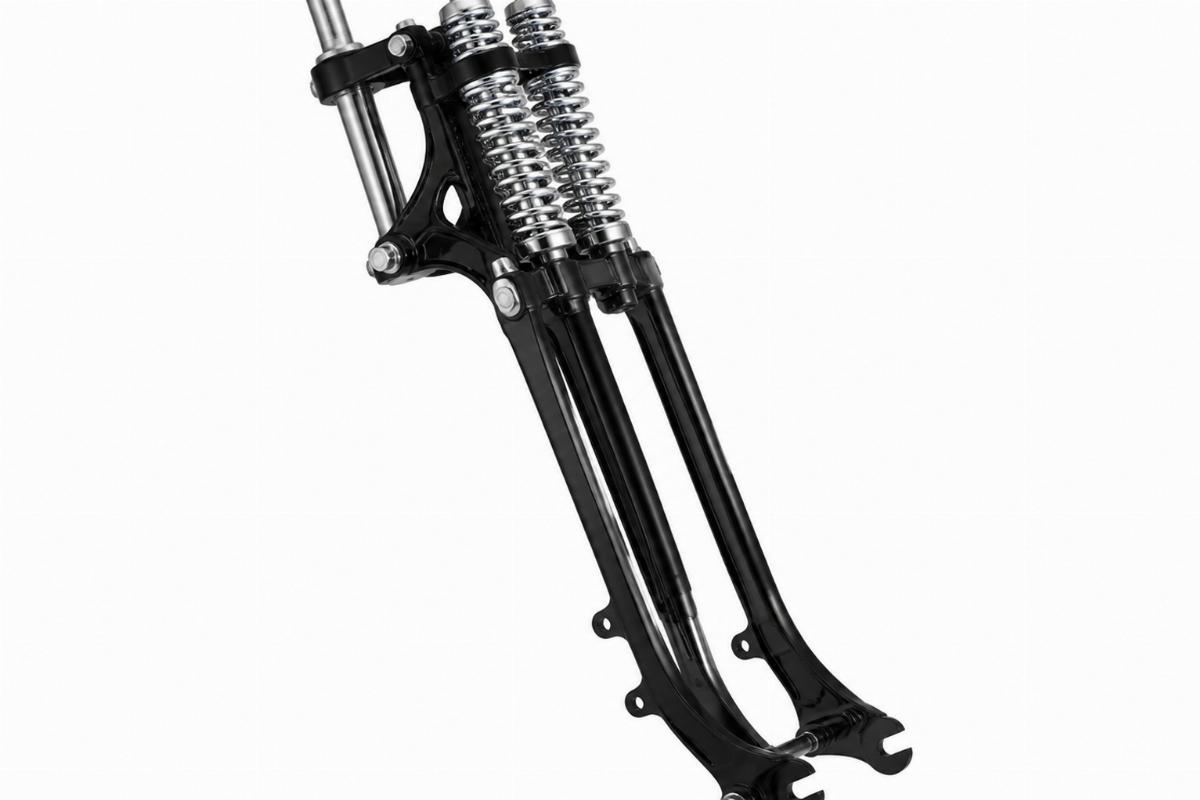

Black Inline Spring Fork Assembly 20″ – Fits Custom Springer Front End
Single-Piece Build Support — Ordering a single inline spring fork assembly for custom springer builds is fully supported without minimum quantity barriers.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Inline Spring Fork Assembly |
| Overall Length | 20″ (2″ over stock) |
| Lower Bearing to Axle Center | 22″ |
| Stem Diameter | 1″ inline stem |
| Front and Rear Legs Finish | Black |
| Springs and Rockers Finish | Chrome |
| Construction | Electric welded and brazed |
| Kit Contents | Inner and outer springs, front and rear legs, 1″ inline stem, offset outside mount rockers, studs and bushings, spring rods with bushings |
| Exclusions | Top clamp, neck races, cone nut |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom Springer Front End | Confirm with model and year | 1″ inline stem; accepts standard style components and accessories |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Over-Stock Measurements Dictate Your Build Geometry
A 20″ overall length with a 22″ lower bearing-to-axle distance defines your steering geometry.
Pulling apart old Springer Softail front ends for years taught me how critical exact measurements are. I once sourced a custom inline spring fork for a build, assuming a standard plus two inch over stock length would just bolt on. The listing failed to specify the measurement from the top of the rear leg to the axle center. When it arrived, the incorrect lower bearing-to-axle distance threw off the rake and trail, completely ruining the steering geometry and messing up the fender clearance. Now I always verify the overall length and stem specs before clearing any inline spring fork assembly for custom springer projects [NEED_CITE: frame geometry specifications by model year].
Verifying the 22-inch Axle Distance
Before installing this inline spring fork assembly for custom springer applications, you must confirm the 22″ lower bearing to axle center measurement matches your frame requirements. This specific dimension directly dictates how the front wheel sits relative to the steering neck. If your frame was designed for a different axle distance, the wheel will sit too far forward or too far back, altering the trail and making the steering feel unstable or overly heavy.
Matching the 1-Inch Inline Stem
The 1″ inline stem on this assembly requires exact compatibility with your steering head dimensions. An inline stem sits directly in line with the fork tubes, unlike offset stems. You need to measure your existing neck bearing spacing and triple tree bore to ensure the 1″ diameter fits perfectly. Forcing an incompatible stem will damage the neck bearings and misalign the entire front end [NEED_CITE: steering head cup dimensions across custom frames].
Decoding the Mixed Finish and Construction

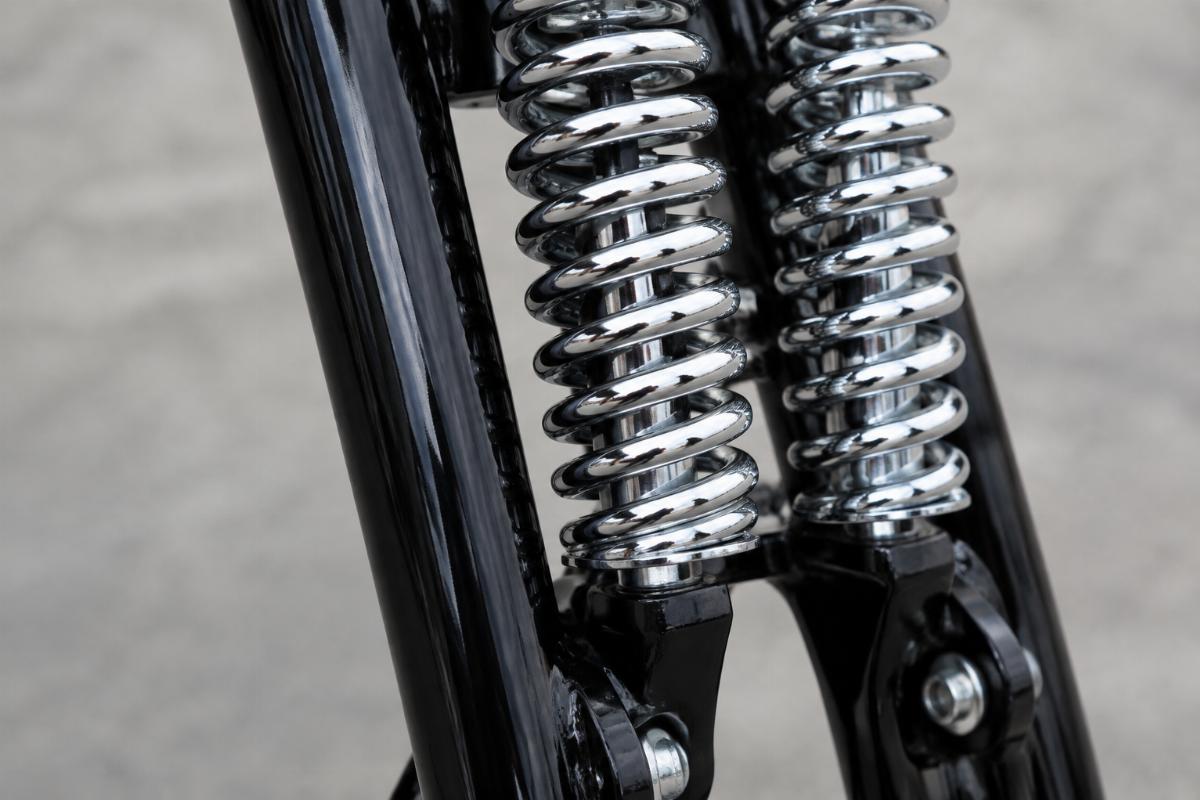

This kit pairs black front and rear legs with chrome inner and outer springs and rockers. The legs are electric welded and brazed, providing the structural foundation for the front end. The mixed finish is a deliberate aesthetic choice for custom builds, but it also means you must inspect the transition points between the black legs and chrome rockers for consistent plating and welding quality before assembly.
The Hidden Cost of Unverified Dimensions
Ordering a front end without confirming the lower bearing-to-axle distance often leads to catastrophic fitment failures. If the 22″ measurement does not align with your frame’s designed geometry, the fender will not clear the tire, or the steering will bind at full lock. This forces you to halt the build, source a different stem or leg length, and pay for redundant shipping and machining. Verifying these dimensions prevents the bike from sitting on the lift for weeks waiting for the correct parts [NEED_CITE: common fitment errors in custom springer conversions].
Sourcing from a Fitment-Focused Supplier
We confirm fitment against platform and measurement before providing a quotation for your inline spring fork assembly for custom springer needs. Our minimum order starts from one piece, making it ideal for single custom builds rather than forcing bulk purchases. We offer sample supply for fitment confirmation before you commit to bulk orders. Our front-end depth ensures you get complete assemblies with multiple over-stock lengths in one catalogue, backed by consistent chrome and black finish options across production batches.
Documentation Provided
- Fitment sheet stating applicable platforms and year ranges for this 20″ assembly
- Key dimensions sheet detailing the 22″ lower bearing to axle center measurement
- Finish specification document for the black legs and chrome springs
- Kit contents list confirming included springs, legs, stem, and rockers
- Quality inspection record verifying electric welded and brazed construction
Receiving and Pre-Installation Checks
- Verify the 20″ overall length and 22″ lower bearing to axle center with a tape measure
- Inspect the black finish on the front and rear legs for welding defects or plating flaws
- Check the chrome inner and outer springs for consistent coating and correct tension
- Confirm the 1″ inline stem is straight and free of threading damage
- Ensure the offset outside mount rockers and spring rods are included in the kit
- Store the assembly in a dry environment to prevent rust on the exposed steel components
Requesting a Fitment Check
Send your model and year, along with a photograph or measurements of your current steering neck, for a fitment check. Specify if you need the 20″ length or require a different over-stock dimension for your project. Let us know if you need a single piece order or a sample for trial fitting before proceeding.
Frequently Asked Questions
Q: How do I measure my current fork to confirm the 2″ over stock length will fit my frame?
A: Measure the overall length from the top of the stem to the center of the axle. Then, measure the distance from the lower bearing seat to the axle center. Compare these numbers to the 20″ overall and 22″ axle distances of this assembly to ensure your frame geometry can accommodate the 2″ over stock extension without fender clearance issues.
Q: What components are excluded from this fork kit and need to be purchased separately?
A: This kit does not include the top clamp, neck races, or the cone nut. You must source these components separately to complete the steering assembly. The kit does include the inner and outer springs, front and rear legs, 1″ inline stem, offset outside mount rockers, studs, bushings, and spring rods.
Q: How does the 22″ lower bearing to axle center measurement affect my custom build geometry?
A: The 22″ distance determines the spatial relationship between the steering neck and the front axle. If your frame was designed for a shorter or longer distance, this measurement will alter the rake and trail. Incorrect trail makes the steering feel unstable or excessively heavy, so verifying this dimension against your frame specifications is critical before installation.
Q: Can I order a single fork assembly for a one-off custom project?
A: Yes, we support single-piece orders without minimum quantity requirements. This is ideal for custom builders working on a one-off project who need a complete 20″ inline spring fork assembly for custom springer applications. We can also provide a sample for fitment confirmation before you finalize your order.
