Black Custom Spring Fork Assembly 20″ – Fitment Checked
Front-End Depth Verified — This 20″ narrow spring fork assembly is part of a comprehensive catalogue covering complete springer assemblies and multiple over-stock lengths, ensuring exact dimensional matching for custom builds.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Spring Fork Assembly |
| Finish | Black with chrome springs |
| Overall Length | 20″ |
| Stem Diameter | 1″ |
| Axle Outer Diameter | 3/4″ |
| Rocker Width | 6″ |
| Leg Thread | 3/4″-18 |
| Top Triple Tree | Standard stem and tube locations, inline |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Not stated | Confirm with model and year | Accepts standard spring fork components, headlamp bracket, shock assembly or ride control; left side rocker is offset for brake system applications. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving Springer Fork Fitment Uncertainties Before Assembly
Confirming rocker width and axle spacing prevents mismatched front hubs and brake setups.
Custom builders often face delays when springer parts lack clear dimensional data. A 6″ rocker width and 3/4″ axle outer diameter must align perfectly with the front hub and brake configuration. Overlooking these specific measurements leads to parts sitting on the workbench while waiting for correct replacements. [NEED_CITE: common dimensional mismatches in custom springer front ends]

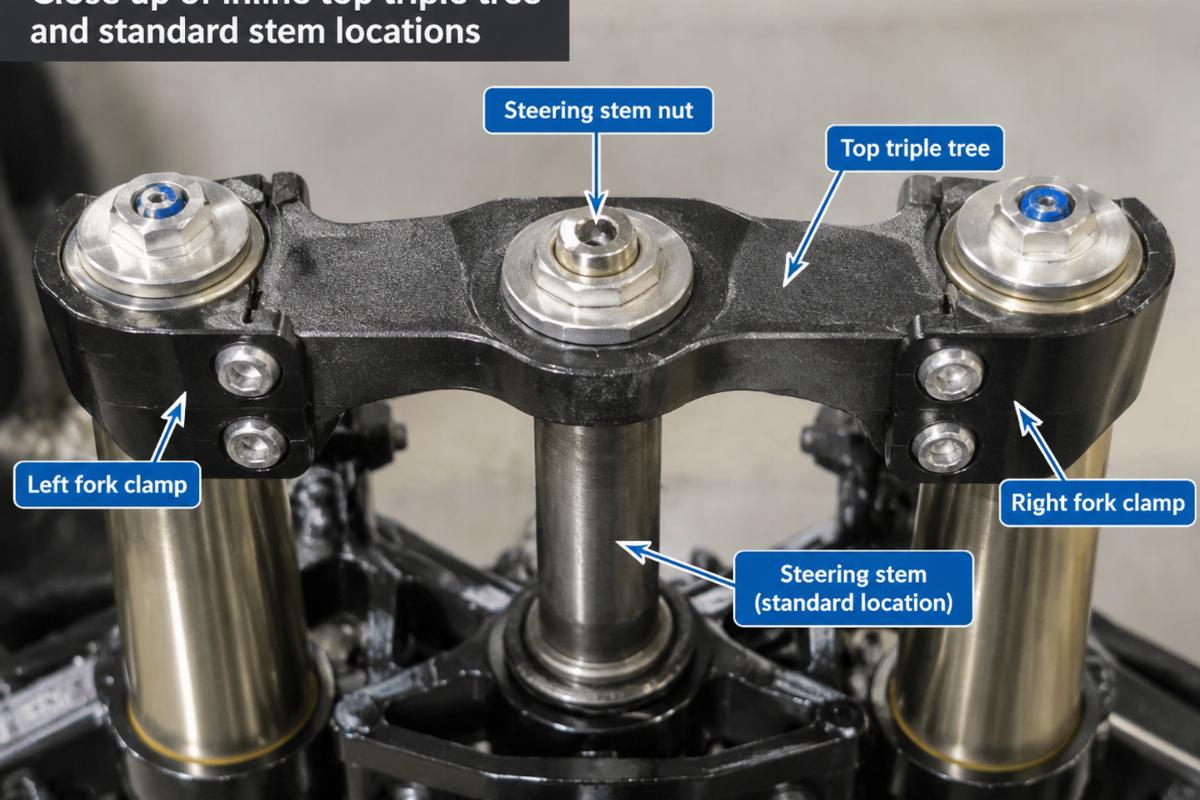

Verifying Triple Tree Alignment for Steering Necks
An inline top triple tree with standard stem and tube locations requires precise steering neck matching. The 1″ stem diameter must slide smoothly into the neck bearings without binding. Verifying this alignment ensures the 20″ narrow spring fork assembly tracks correctly and maintains the intended geometry of the custom build.
Checking Brake System Clearances on Offset Rockers
The left side rocker on this unit is specifically offset to provide necessary clearance for brake system applications. Failing to account for this offset can result in the brake components rubbing against the fork legs during compression. Always check the brake caliper and rotor placement against the 6″ rocker width before finalizing the front end setup. [NEED_CITE: brake clearance requirements for offset springer rockers]
Interpreting Key Dimensions for Custom Builds
The 20″ overall length directly influences the ride height and visual stance of the motorcycle. The 3/4″-18 leg thread is designed to accept standard spring fork handlebars and risers, allowing for customized bar placement. Understanding how the stem diameter and axle outer diameter interact with your specific frame and wheel hub is critical for a successful installation.
The Hidden Costs of Incorrect Front End Dimensions
Ordering a springer assembly without confirmed dimensions often results in the motorcycle remaining on the lift. If the axle diameter does not match the wheel hub, or if the rocker width interferes with the tire, the entire front end must be disassembled and re-sourced. This leads to lost billable hours and delayed project completion for custom shops. [NEED_CITE: shop downtime caused by incorrect front end fitment]
Sourcing from a Dedicated Front End Specialist
We manufacture our own springer front ends and chassis hardware, ensuring direct control over dimensions and finish consistency. The black finish with chrome springs on this 20″ narrow spring fork assembly is inspected for uniformity before dispatch. We offer a one-piece minimum order, allowing custom builders to source exact replacements without bulk purchasing requirements. Fitment is verified against platform dimensions before any quotation is issued.
Included Documentation and Specifications
- Fitment sheet stating applicable platforms and confirmed year ranges
- Key dimensions including 20″ length, 6″ rocker width, and 3/4″ axle diameter
- Finish specification detailing black legs and chrome springs
- Quality inspection record verifying stem and tube locations
- Warranty terms covering manufacturing defects
Pre-Installation Inspection and Verification
- Verify the 1″ stem diameter matches your steering neck bearings
- Measure the 6″ rocker width against your front wheel hub
- Check the 3/4″ axle outer diameter for proper wheel bearing fitment
- Inspect the black finish and chrome springs for any transit damage
- Ensure the left side rocker offset aligns with your brake components
- Confirm the 3/4″-18 leg thread accepts your chosen handlebars
Requesting a Fitment Check for Your Project
Send your model and year, along with photographs or measurements of your current steering neck and front hub, for a fitment check. Specify if you require the black finish with chrome springs or need to verify the 20″ narrow spring fork assembly dimensions against your custom frame. We can also arrange a sample for fitment confirmation before you commit to a bulk order for your shop.
Frequently Asked Questions
Q: How do I measure rocker width and axle spacing to confirm fitment?
A: Measure the distance between the inner faces of the left and right rockers to get the 6″ width. For axle spacing, measure the outer diameter of the axle shaft, which must match the 3/4″ specification, and check the distance between the rocker mounting holes against your wheel hub.
Q: What components are included in the spring fork assembly kit?
A: The kit includes the complete 20″ fork assembly with black legs and chrome springs, featuring an inline top triple tree. It is designed to accept standard spring fork components, headlamp brackets, and handlebars, but specific handlebars or brake components are not included.
Q: Can I order a single spring fork assembly for a custom build?
A: Yes, we support custom builders and independent shops with a minimum order of one piece. You can order this 20″ narrow spring fork assembly individually for a specific project without needing to meet bulk quantity requirements.
Q: How do I verify the stem diameter matches my frame neck?
A: Measure the inner diameter of your steering neck bearings or the outer diameter of your existing fork stem. The stem on this assembly is 1″, so your frame must accommodate this exact diameter to ensure proper bearing fitment and steering function.
Q: Does the assembly accept standard spring fork handlebars and brackets?
A: Yes, the fork legs are drilled and tapped with a 3/4″-18 thread specifically to accept standard spring fork handlebars and risers. The top triple tree also features standard stem and tube locations for mounting headlamp brackets and related hardware.
