Black Ape Hanger Handlebars 12″ Rise – Fits 1982-Later
Black Finish Consistency — Every batch of these handlebars undergoes strict visual inspection to ensure the black coating matches perfectly across the entire 35″ width, preventing mismatched aesthetics when fitted side by side on a custom build.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebars |
| Material | Steel |
| Diameter | 1″ O.D. |
| Finish | Black |
| Rise | 12″ |
| Total Width | 35″ |
| Center Width | 8″ |
| Pullback | 8 5/8″ |
| Knurling | Knurled for risers mounted on 3 1/2″ centers |
| Throttle Cable Design | Designed to be used with external throttle cables |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson | 1982-Later | Dimpled for 1982-Later switch housings and drilled for wire harness clips |
| Harley-Davidson | 1972-1981 | Pre-1982 type available; smooth design for 1972-1981 switch housings |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Switch Housing Dimple Placement Ruins Custom Builds
Failing to match the handlebar dimple pattern to the exact switch housing style leaves controls loose and wiring exposed.
I still remember a batch of 1″ ape hanger handlebars we shipped out to a custom builder. He just asked for custom bars without specifying the exact year range. We sent the smooth type. When the bars arrived, his 1982-Later switch housings would not sit right because the bars lacked the dimples, and there were no drilled holes for his wire harness clips. That mistake taught me to always check if the bars match the exact switch housing style and year range before dispatch. Handlebar listings often miss critical details like bar diameter, rise, pullback, or wiring-hole specifics, leading to parts that arrive but fail to accommodate your switch housings or riser spacing [NEED_CITE: factory service manual specifications by model year].
Verifying Switch Housing Compatibility

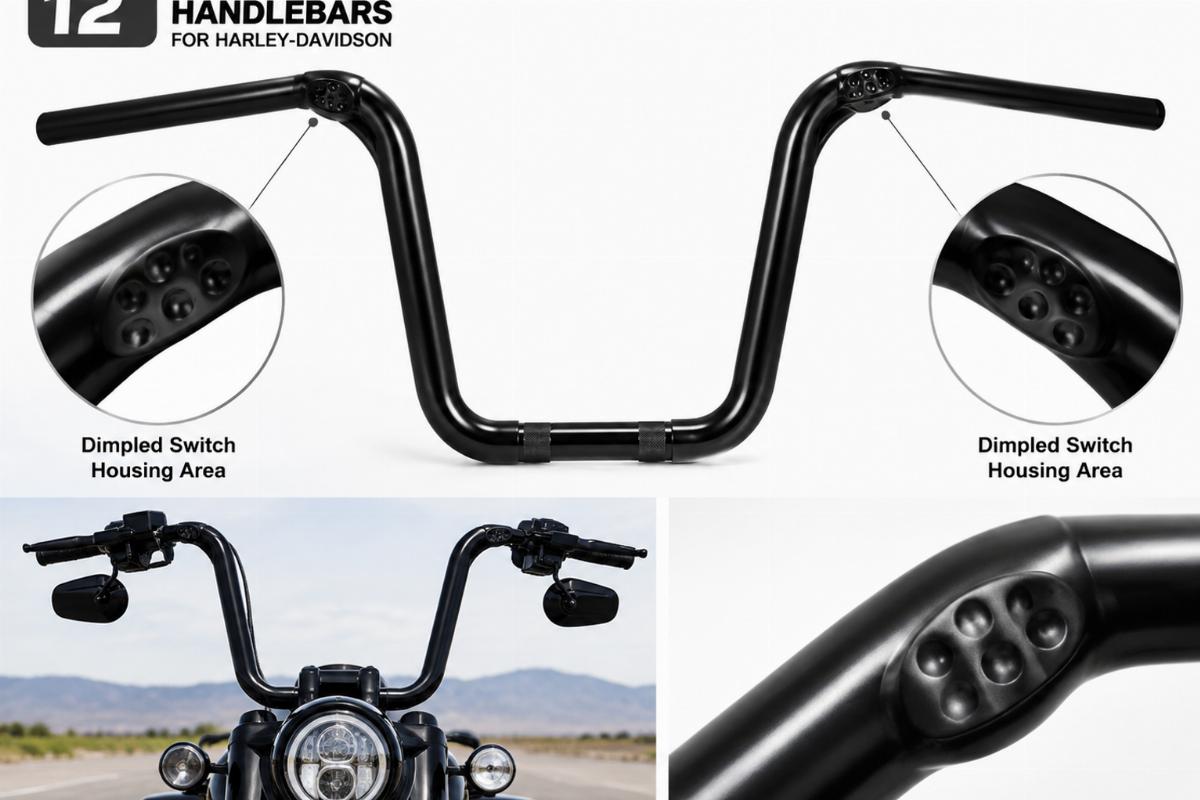

When sourcing ape hanger handlebars for harley-davidson, the transition between smooth and dimpled bars is a strict mechanical boundary. The 1982-Later type features specific dimples to lock the switch housings in place, whereas the pre-1982 type relies on a smooth surface. If you install a smooth bar on a later model, the switches will rotate under load. Confirming your switch housing style against the year range prevents this exact failure point [NEED_CITE: switch housing design changes across model years].
Routing Wire Harness Clips Correctly
Beyond the switch housings, the wiring path requires precise drilling. These 12″ rise bars are drilled specifically to accept wire harness clips, keeping the cables tight against the steel. Without these holes, the wiring hangs loose, risking chafing against the risers or the tank. Checking the drilling pattern ensures your electrical routing remains clean and secure on the bike.
Interpreting the 12″ Rise and 8 5/8″ Pullback

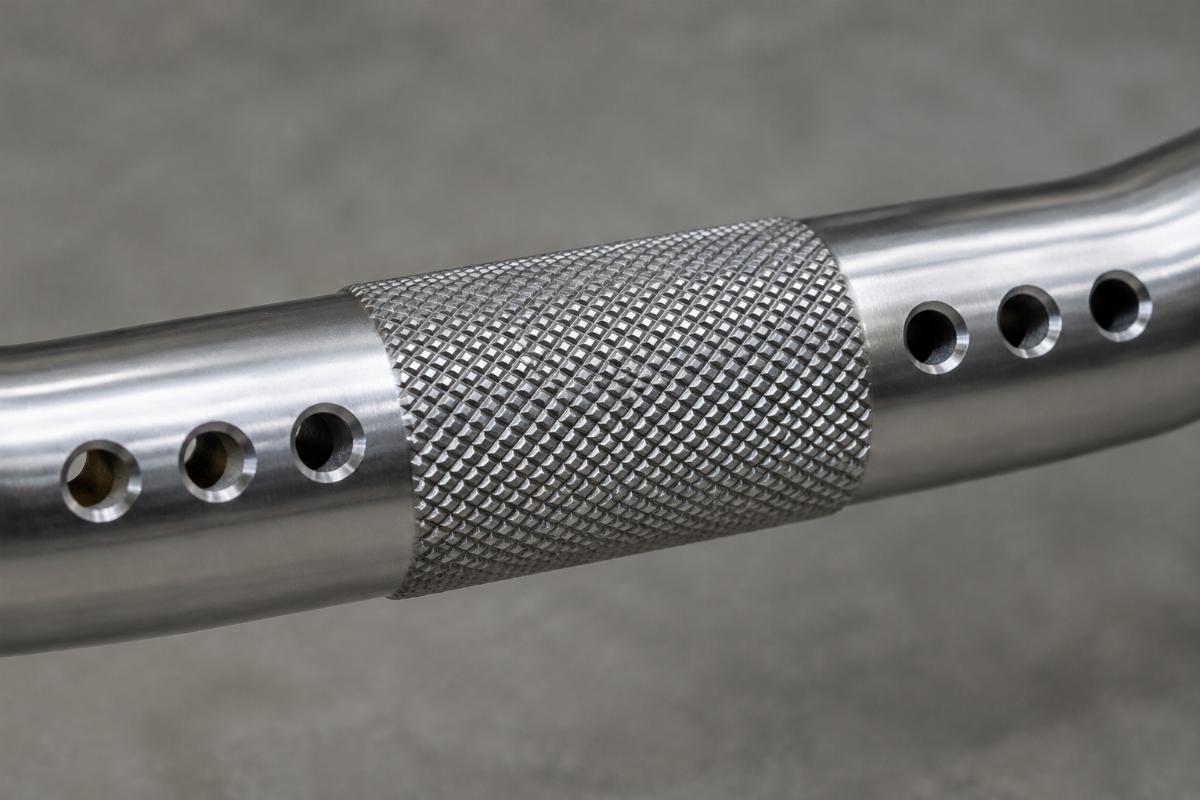

The 12″ rise combined with an 8 5/8″ pullback drastically alters the rider’s reach and steering geometry. A 35″ total width with an 8″ center section dictates how the front end tracks through corners. The 1″ O.D. steel construction must be paired with the correct risers; the center section is knurled specifically for risers mounted on 3 1/2″ centers. If your riser clamp spacing does not match this knurled section, the bars will slip inside the clamps [NEED_CITE: riser clamp spacing and knurling standards].
The Hidden Cost of Overlooked Riser Spacing
Installing handlebars with the wrong center width or missing knurling forces the builder to halt the assembly. If the riser spacing does not align with the 3 1/2″ knurled section, the bars slip, requiring a complete teardown to source the correct clamps or bars. Furthermore, if the throttle cable design does not match your setup—these are designed to be used with external throttle cables—the routing will fail. Overlooking these dimensional details turns a simple swap into a multi-day delay on the shop floor [NEED_CITE: handlebar dimensional tolerances and riser compatibility].
Securing Fitment and Finish Before Dispatch
We verify fitment against the platform family and model year range before quotation, ensuring you receive the dimpled 1982-Later type or the smooth 1972-1981 type as needed. Our own production and qualified sourced supply operate under one account, meaning the black finish consistency is checked across the entire 35″ width. We support minimum orders from one piece, allowing a single-piece order for a shop building one bike without blocking your procurement. We also provide cross-reference against Harley-Davidson OEM numbers, marked reference only, to help identify superseded part numbers accurately.
Documentation Provided
- Fitment sheet stating applicable platforms and 1982-Later or 1972-1981 year ranges
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions including 1″ O.D., 12″ rise, 35″ width, and 8 5/8″ pullback
- Finish specification for the black coating
- Quality inspection record covering dimple and drilling placement
- Packing photographs showing the knurled center and external cable design
Receiving and Pre-Installation Checks
- Verify the 12″ rise and 35″ total width match your custom geometry requirements
- Confirm the center section is knurled for your 3 1/2″ riser mounting centers
- Check that the bar is dimpled for 1982-Later switch housings if applicable
- Inspect the black finish for consistency across the entire steel surface
- Ensure the drilled holes align with your wire harness clip spacing
- Store the steel bars in a dry environment to protect the black finish before fitting
Requesting a Fitment Check
Send your model and year for a fitment check to confirm whether you need the dimpled 1982-Later type or the smooth pre-1982 version. Provide your riser center spacing and switch housing style to ensure the 1″ O.D. and 8″ center width align with your build. Let us know if you require a sample for fitment confirmation before placing a bulk order for your shop.
Frequently Asked Questions
Q: How do I confirm the switch housing style for my specific model year?
A: Check the switch housings on your bike. If they have recessed indentations to sit flush against the metal, you need the dimpled 1982-Later type. If the back of the housing is completely flat, you need the smooth 1972-1981 type. We can verify this if you send a photo of your controls.
Q: What are the exact center width and pullback dimensions?
A: The center width is 8″, and the pullback is 8 5/8″. The total width is 35″. The center section is knurled specifically for risers mounted on 3 1/2″ centers. Measure your riser clamp spacing to ensure it matches this knurled section before ordering.
Q: Can I order a single set of handlebars for a custom build?
A: Yes, we accept minimum orders from one piece. You do not need to meet a high minimum order quantity to get a single set for a custom build. We also offer sample supply for fitment confirmation before you commit to larger bulk orders for your shop.
Q: Do you provide dimensional drawings before dispatch?
A: We provide a fitment sheet and key dimensions, including the 1″ O.D., 12″ rise, 35″ width, and 8 5/8″ pullback, before quotation. If you need to verify riser spacing compatibility, we can confirm the 3 1/2″ knurled center section details based on your specific requirements.
