Ape Hanger Handlebars for Harley-Davidson 1982-Up
Fitment Checked Before Quotation — Every set of ape hanger handlebars for Harley-Davidson 1982-up models is verified against the specific platform family and year range before we issue a quotation.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebars |
| Diameter | 1 1/2″ |
| Riser Area O.D. | 1 1/4″ |
| Rise | 14″ |
| Pullback | 5″ |
| Wiring | Drilled for internal wiring |
| Finish | Available in chrome or black |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson models (including Fly-By-Wire) | 1982-up | Confirm riser clamp diameter and wiring routing for specific Fly-By-Wire setups. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Riser Area Diameter Matters for Fly-By-Wire Setups
A 1 1/4″ riser area O.D. is required to properly clamp these 14″ rise bars without pinching the sensor harness.
When builders order ape hanger handlebars for Harley-Davidson 1982-up models, the listing often misses the riser area diameter. I once saw a set of 14-inch ape hangers sent to a shop that only provided the year range. They did not realize their late-model Fly-By-Wire setup needed a 1 1/4″ riser area to clear the sensors. The 1 1/2″ main diameter with standard internal wiring drilling ended up pinching the harness when clamped in standard risers. Now, verifying the riser clamp diameter and wiring hole placement is mandatory before shipping handlebars [NEED_CITE: connector changes across model years for this platform].
Verifying Clamp Fitment on 1982-Up Platforms

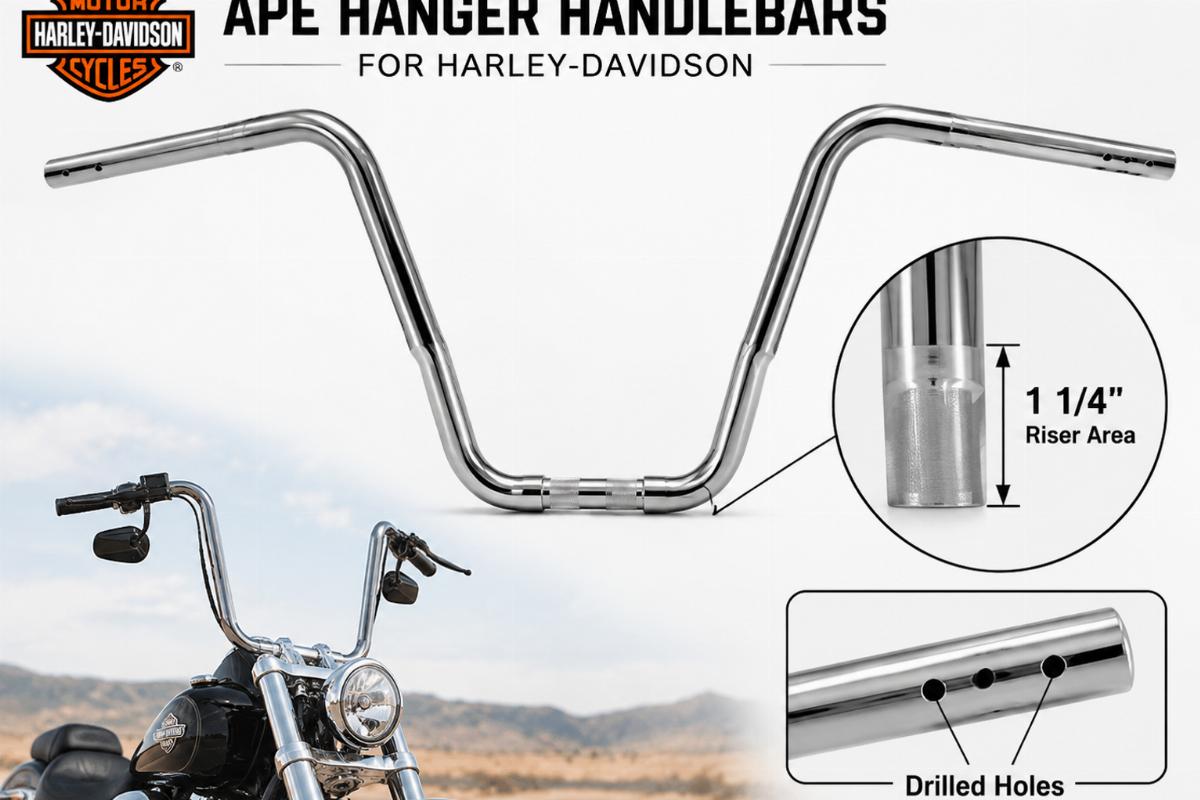

These ape hanger handlebars for Harley-Davidson 1982-up models feature a 1 1/2″ overall diameter that steps down to a 1 1/4″ riser area O.D. This specific dimension ensures the bars sit securely in aftermarket or modified risers designed for Fly-By-Wire sensor clearance. If the riser area is too large, the clamp slips; if it is too small, the wiring harness gets crushed during tightening.
Checking Internal Wiring Hole Placement

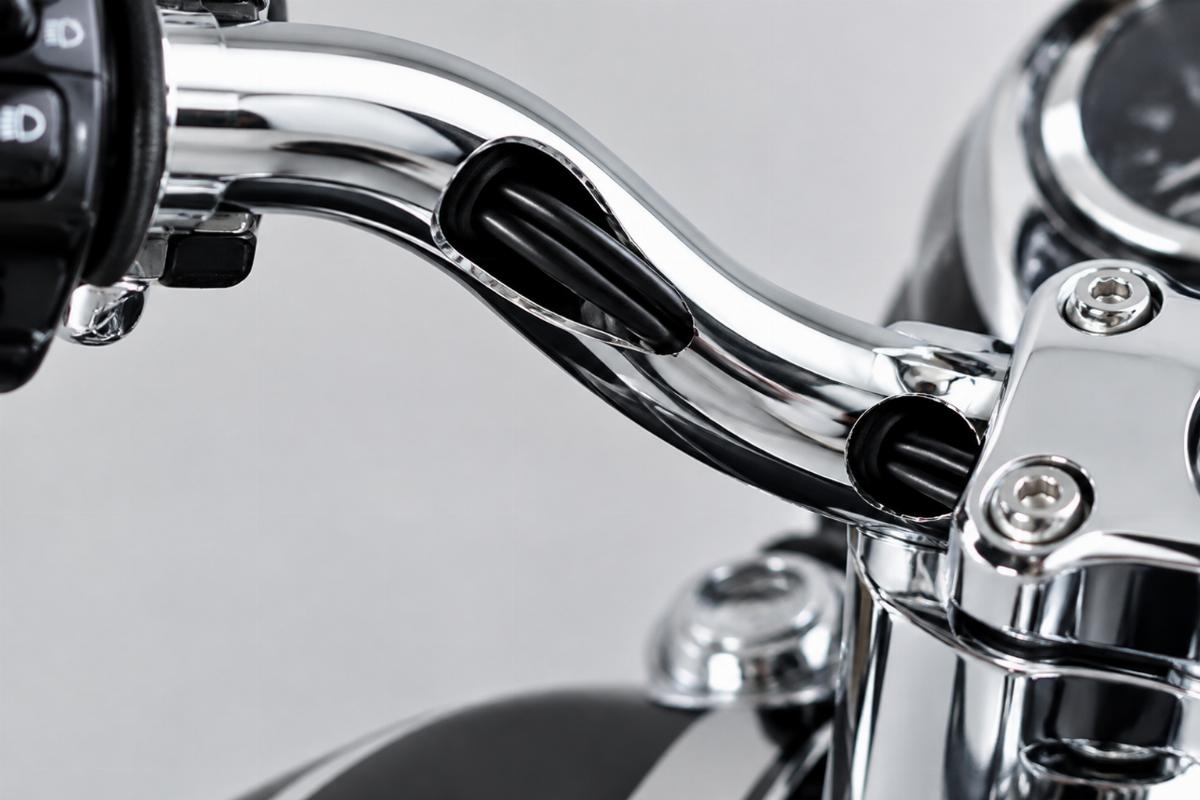

The bars are pre-drilled for internal wiring to maintain a clean front-end setup. However, the exact exit point of these holes varies based on the 14″ rise and 5″ pullback geometry. You must check if the drilled holes align with your specific riser base and triple tree routing paths. Overlooking this detail means the harness cannot reach the headlight bucket or switch housings without external zip-ties [NEED_CITE: factory service manual specifications by model year].
Understanding the 14-Inch Rise and 5-Inch Pullback
A 14″ rise combined with a 5″ pullback significantly alters the rider’s reach and the cable routing path. This geometry moves the hand controls further back and higher than stock handlebars. Consequently, the stock brake lines, clutch cables, and throttle cables will be too short. You must measure the required extension or order custom-length lines before mounting the bars to avoid stretching the cables.
The Hidden Cost of Incorrect Handlebar Dimensions
Ordering ape hanger handlebars for Harley-Davidson 1982-up models without confirming the riser area O.D. often leads to the bike sitting on the lift. If the bars do not fit the risers, the shop has to wait for a replacement, delaying the build. Furthermore, if the wiring holes are drilled in the wrong location for your specific triple tree, you either have to drill new holes or run the wires externally, ruining the clean look of the custom build.
Sourcing Handlebars with Verified Dimensions
We confirm the fitment of these handlebars against the platform family and model year range before quotation. The 1 1/2″ diameter and 1 1/4″ riser area are measured and documented to ensure they match your riser requirements. We offer these ape hangers in chrome or black finishes, with batch consistency checked to ensure the plating matches across your front-end components. You can order a single piece for a custom build without meeting high minimum order quantities.
Documentation Provided
- Fitment sheet stating the 1982-up platform and Fly-By-Wire compatibility
- Key dimensions including 14″ rise, 5″ pullback, and 1 1/4″ riser area O.D.
- Finish specification for the selected chrome or black option
- Quality inspection record verifying the internal wiring drill placement
- Packing photographs showing the handlebars and protective wrapping
Receiving and Pre-Installation Checks
- Verify the 1 1/4″ riser area O.D. matches your riser clamp inner diameter.
- Check that the internal wiring holes align with your triple tree routing.
- Inspect the chrome or black finish for any shipping damage or plating defects.
- Measure the 14″ rise and 5″ pullback to confirm cable length requirements.
- Store the handlebars in a dry environment to prevent surface corrosion before installation.
Requesting a Fitment Check
Send your specific Harley-Davidson model and year to verify if these 1 1/2″ handlebars fit your Fly-By-Wire setup. Provide your riser clamp diameter and a photo of your current wiring routing if the part number is unknown. Let us know if you require a sample pair to confirm the 14″ rise and 1 1/4″ riser area before placing a bulk order for your shop.
Frequently Asked Questions
Q: How do I confirm my specific 1982-up Harley-Davidson model and Fly-By-Wire setup will fit these 1 1/2″ handlebars?
A: You must verify that your risers accept a 1 1/4″ riser area O.D. to ensure a secure clamp fit without pinching the Fly-By-Wire sensor harness. Check the internal wiring drill placement against your triple tree routing to ensure the cables can reach the switch housings without external routing.
Q: What is the difference between the 1 1/2″ overall diameter and the 1 1/4″ riser area O.D. on these ape hangers?
A: The 1 1/2″ diameter applies to the main section of the handlebars where the grips and controls mount. The center section steps down to a 1 1/4″ riser area O.D., which is specifically designed to fit standard riser clamps and clear Fly-By-Wire sensors without crushing the wiring harness.
Q: Do I need to purchase longer brake lines and clutch cables for a 14″ rise and 5″ pullback handlebar?
A: Yes, a 14″ rise and 5″ pullback significantly increases the distance from the hand controls to the master cylinders and throttle body. Stock cables will be too short and may stretch or snap. You must measure the required extension or order custom-length lines before mounting these ape hanger handlebars.
Q: Can I order a single pair of handlebars for a custom build, or is there a minimum order quantity?
A: We support a one-piece minimum order, allowing custom builders and repair shops to purchase a single pair of handlebars for an individual bike build. There are no high volume requirements, and we provide a fitment sheet confirming the 1982-up compatibility before you finalize the purchase.
