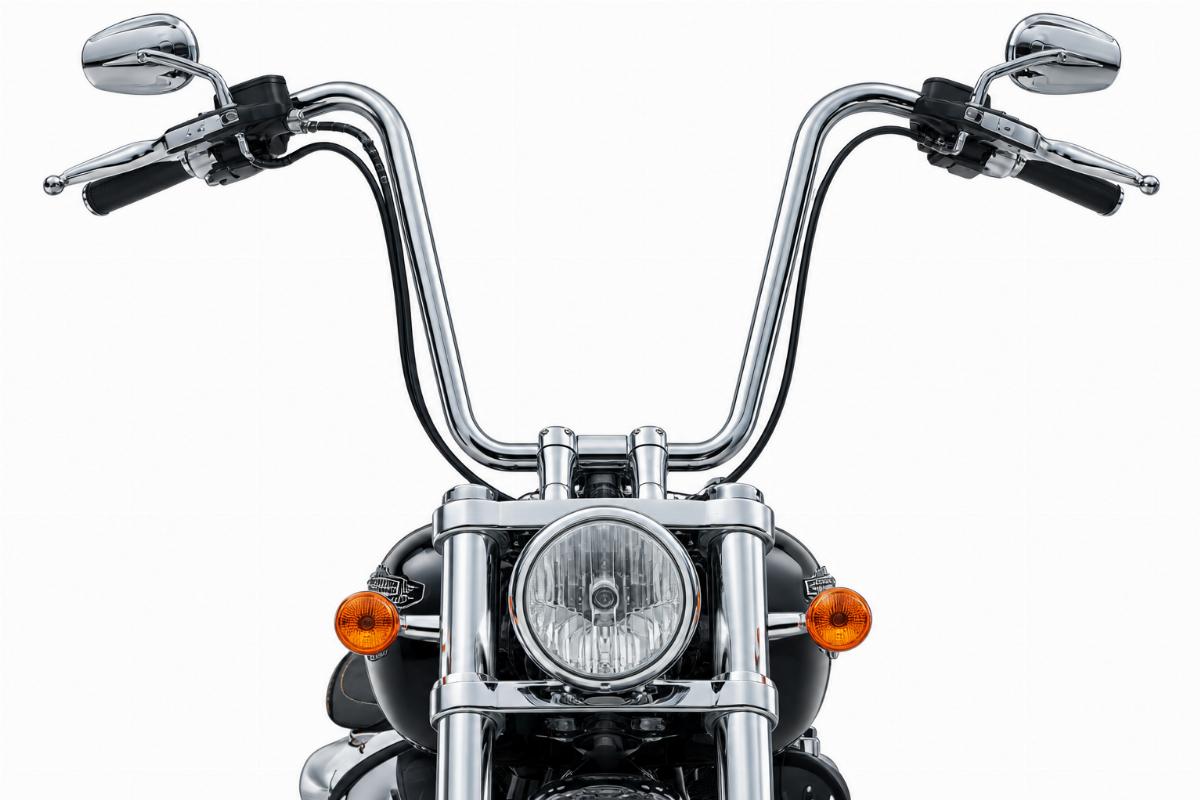

Ape Hanger Handlebars for Harley-Davidson 1982-Later
Dimension verification before quotation — Every control component is checked against platform family and model year range to confirm rise, width, and switch housing compatibility before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebars |
| Material | Steel |
| Diameter | 1″ O.D. |
| Finish | Chrome Plated |
| Rise | 20″ |
| Total Width | 34″ |
| Center Width | 8 1/2″ |
| Pullback | 7 1/2″ |
| Knurling | Knurled for risers mounted on 3 1/2″ centers |
| Switch Housing Compatibility | Dimpled for 1982/Later style switch housings, drilled for wire harness clips |
| Installation Notes | Designed to be used with external throttle cables |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson | 1982-Later | Dimpled for 1982/Later style switch housings. Pre-1982 type available for 1972-1981 style switch housings. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Switch Housing Dimple Placement Matters for Ape Hanger Handlebars for Harley-Davidson
Dimpled tubing ensures switch housings sit flush and wire harness clips stay secured.
Handlebar listings often miss bar diameter, rise, width, pullback or knurling and wiring-hole details, leaving builders guessing if the bars will actually fit their risers and switch housings. When the dimple placement is wrong, the switch housing tilts, and the wiring clips have nowhere to anchor. This forces builders to drill new holes or swap bars entirely, wasting shop time and delaying the build [NEED_CITE: switch housing mounting specifications by model year].
Verifying Riser Center Spacing for 20 Inch Rise Bars
When ordering ape hanger handlebars for harley-davidson models, the center section must match your specific riser setup. These bars feature a knurled center section specifically designed for risers mounted on 3 1/2″ centers. If your triple tree spacing differs, the knurling will not align with the riser clamp, preventing a secure grip on the 1″ O.D. steel tubing. Always measure your existing riser centers before confirming the order to avoid clamp slippage.
Differentiating Dimpled and Smooth Tubing Sections
I started on the shop floor tearing down bikes, which taught me to trust measurements over part numbers. Over the years, I have seen smooth handlebars for 1972 to 1981 switch housings mistakenly swapped with dimpled 1982 and later bars. A customer ordered bars for a late model, but the smooth pre-1982 type was shipped. The switch housings would not sit flush, and the wire harness clips had nowhere to go. This specific variant is dimpled for 1982/Later style switch housings and drilled for wire harness clips, ensuring a direct fit for late-model controls [NEED_CITE: handlebar tubing changes across model years for this platform].
Interpreting Width and Pullback Dimensions
The 34″ total width and 7 1/2″ pullback define the rider’s reach and shoulder position. A 34″ width provides adequate leverage for steering while keeping the controls within comfortable reach for most riders. The 8 1/2″ center width dictates the space available for mounting the speedometer, ignition switch, and other center-console components. Verifying these dimensions against your tank and fuel line clearance prevents interference issues once the bars are clamped into the risers.
The Hidden Cost of Incorrect Switch Housing Fitment
Ordering the wrong tubing style for your model year often results in the bike sitting on the lift while the shop waits for replacement parts. If smooth bars are installed on a 1982-Later model, the switch housings rock back and forth, making it impossible to route the wire harness correctly. Builders then face the choice of modifying the housings or waiting for a replacement set, which delays the entire project timeline and increases labor costs [NEED_CITE: wiring harness routing requirements by model year].
Sourcing Control Parts with Fitment Certainty
We verify fitment against platform family and model year range before quotation to ensure these ape hanger handlebars for harley-davidson match your build. Our catalogue maintains depth across control lines, keeping both dimpled and smooth variants in stock to cover different eras. We offer chrome plated and black finish options to match your bike’s aesthetic without compromising the 1″ O.D. steel construction. You can cross-reference against Harley-Davidson OEM numbers marked reference only, and we support a minimum order from one piece for custom builders and repair shops.
Documentation Provided with Your Shipment
- Fitment sheet listing each year range this part was checked against
- Key dimensions sheet confirming rise, width, pullback, and center spacing
- Cross-reference sheet with Harley-Davidson OEM numbers marked reference only
- Finish specification detailing the chrome plating process
- Quality inspection record verifying dimple and knurling placement
Inspection Steps Before Installation
- Verify the 1″ O.D. steel tubing is dimpled for 1982/Later style switch housings
- Measure the 3 1/2″ knurled center section to confirm riser compatibility
- Check the 20″ rise and 34″ total width against your frame and tank clearance
- Inspect the chrome plated finish for any shipping damage or surface defects
- Confirm the drilled holes align with your specific wire harness clip layout
- Store the bars in a dry environment to prevent surface oxidation before fitting
Requesting a Fitment Check and Quotation
Send your model and year for a fitment check to confirm these ape hanger handlebars for harley-davidson match your switch housing style. Provide your riser center spacing and required finish to ensure the dimensions align with your build. Let us know if you need a sample pair for fitment confirmation before placing a bulk order for your shop.
Frequently Asked Questions
Q: How do I confirm if these handlebars fit my specific model year and switch housing style?
A: Check your switch housing design. These bars are dimpled for 1982/Later style housings and drilled for wire harness clips. If your bike uses a 1972-1981 style housing, you need the smooth tubing variant. Always verify your model year and housing type before ordering to ensure a flush mount.
Q: What is the difference between the 1982/Later dimpled bars and the pre-1982 smooth bars?
A: The 1982/Later bars feature dimples cut into the 1″ O.D. steel tubing where the switch housings clamp, allowing them to sit flush. They also have pre-drilled holes for wire harness clips. Pre-1982 smooth bars lack these dimples and holes, requiring different switch housings or custom drilling.
Q: How do I measure my riser center spacing to ensure compatibility with the knurled section?
A: Measure the distance between the center points of your existing riser mounting holes on the triple tree. These bars feature a knurled section specifically sized for risers mounted on 3 1/2″ centers. If your measurement differs, the riser clamps will not grip the knurling properly.
Q: Can I order a single pair of handlebars for a custom build?
A: Yes, we support a minimum order from one piece. This allows custom builders and independent repair shops to order exactly what they need for a single bike project without meeting high bulk thresholds. We verify the fitment against your platform before dispatching the single pair.
