Ape Hanger Handlebars for Harley-Davidson 1982-Later – Fitment Checked
Fitment verified by model year — Every ape hanger handlebars for harley-davidson order is checked against the exact switch housing style and riser center spacing before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Ape Hanger Handlebars |
| Material | Steel |
| Diameter | 1″ O.D. |
| Finish | Chrome Plated |
| Rise | 12″ |
| Total Width | 35″ |
| Center Width | 8″ |
| Pullback | 8 5/8″ |
| Control Mount | Knurled for risers mounted on 3 1/2″ centers |
| Throttle Cable | Designed to be used with external throttle cables |
| Switch Housing | Dimpled for 1982/Later style switch housings |
| Wiring | Drilled for wire harness clips |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson | 1982-Later | Dimpled for 1982/Later style switch housings and drilled for wire harness clips. |
| Harley-Davidson | 1972-1981 | Pre-1982 type is smooth for 1972-1981 style switch housings; confirm variant before ordering. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Incomplete Specs Lead to Switch Housing Mismatches
Missing control dimensions force complete returns when bars fail to seat against specific switch housings or risers.
Listings that omit bar diameter, rise, width, pullback, knurling, or wiring-hole details create a false sense of compatibility. A shop ordering ape hanger handlebars for harley-davidson without verifying the switch housing style will receive dimpled bars for a bike that requires smooth housings, leaving the controls unmountable and the build stalled on the lift [NEED_CITE: switch housing design changes across model years for this platform].
Verifying Switch Housing Styles Before Dispatch

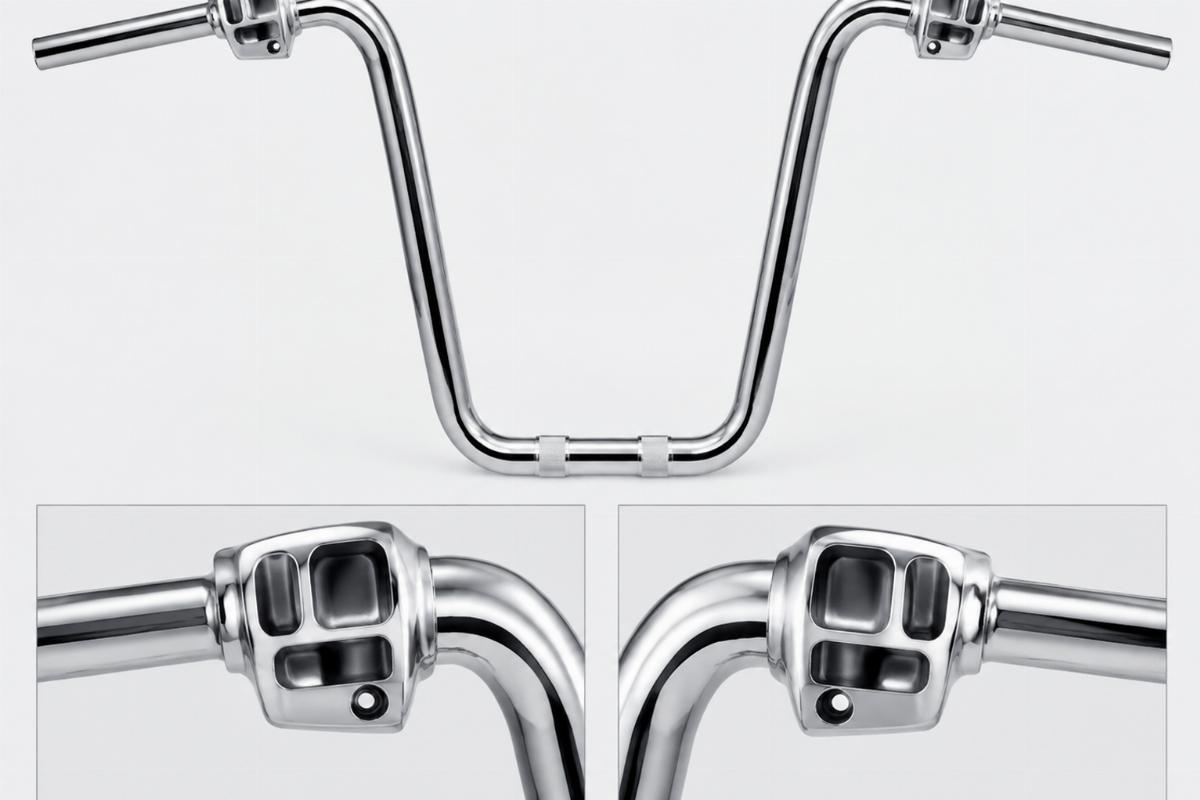

The transition between smooth and dimpled control mounting surfaces dictates which handlebar variant your specific build requires. When sourcing ape hanger handlebars for harley-davidson, confirming the exact model year ensures the dimpled sections align perfectly with 1982/Later style switch housings, preventing forced modifications to the controls.
Matching Riser Centers to the Knurled Section

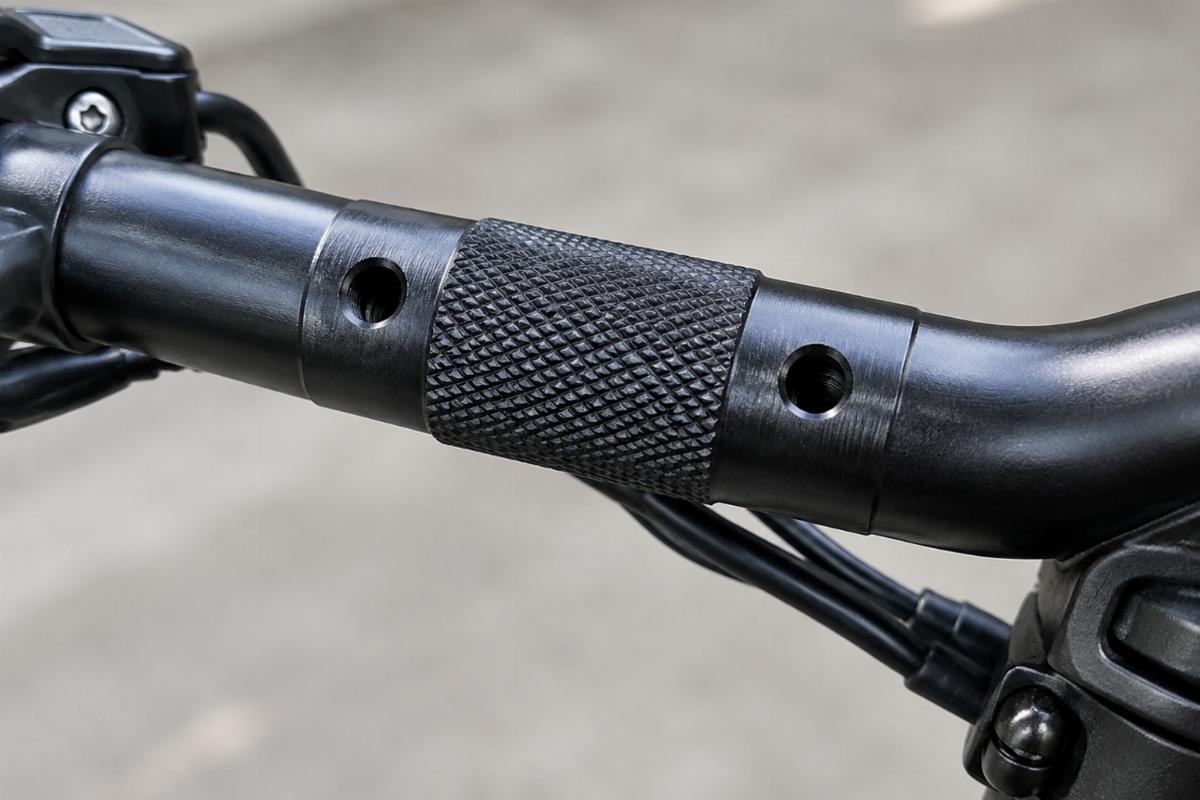

The center section of these bars is knurled specifically for risers mounted on 3 1/2″ centers. If your custom geometry uses a different riser spacing, the knurling will not grip correctly, leading to handlebar rotation under load. Always measure your existing riser mounting distance before finalizing the order [NEED_CITE: riser mounting center variations in custom front-end setups].
Interpreting Rise, Width, and Pullback Dimensions
A 12″ rise combined with a 35″ total width and 8 5/8″ pullback significantly alters rider positioning and cable routing. These dimensions dictate whether your existing external throttle cables will reach without stretching or kinking. The 8″ center width ensures the control cluster sits squarely within the riser clamp area, maintaining structural integrity across the 1″ O.D. steel construction.
Hidden Costs of Incorrect Handlebar Fitment
Ordering the wrong switch housing variant means the bike sits on the shop floor while replacement parts are sourced and shipped. If the pullback or width does not match your custom geometry, you face additional costs for extended cables or modified risers. Furthermore, receiving a finish with inconsistent chrome plating requires stripping and re-plating, delaying the entire build timeline and frustrating the end customer [NEED_CITE: finish quality variations across aftermarket batches].
Sourcing Controls With Documented Compatibility
We verify fitment against the platform family and model year range before quoting any handlebar order. Our qualified sourced supply for control parts ensures you receive a fitment sheet detailing the exact year ranges and switch housing styles supported. You can order a single pair for a custom build without facing minimum order quantities, and we provide sample supply for fitment confirmation before you commit to bulk inventory.
Documentation Provided With Your Shipment
- Fitment sheet stating applicable platforms and year ranges for the specific dimpled variant
- Key dimensions sheet listing bar diameter, rise, width, pullback, and center width
- Finish specification detailing the chrome plating standard applied to the steel construction
- Quality inspection record confirming the knurling and drilling operations
- Packing photographs showing the protective wrapping and hardware included
Pre-Installation Checks For Your Shop
- Verify the dimpled sections align with your 1982/Later style switch housings before tightening
- Measure your riser centers to confirm they match the 3 1/2″ knurled section
- Check the 12″ rise and 8 5/8″ pullback against your custom geometry requirements
- Inspect the chrome plated finish for any shipping damage or surface inconsistencies
- Ensure the drilled holes align with your wire harness clips for clean routing
- Store the steel handlebars in a dry environment to prevent surface oxidation before installation
Requesting A Fitment Check For Your Build
Send your exact model and year to confirm whether the 1982/Later dimpled variant matches your switch housing style. Provide your riser center measurements and required cable lengths to verify the 12″ rise and 8 5/8″ pullback will work with your setup. Let us know if you need a single pair for a custom build or a sample for fitment confirmation before placing a larger order.
Frequently Asked Questions
Q: How do I confirm if the 1982/Later dimpled handlebars will fit my specific switch housings?
A: Check your motorcycle’s model year and switch housing design. The 1982/Later variant features dimples specifically machined to accept the mounting bolts of late-style switch housings. If your bike uses early-style smooth housings, you will need the pre-1982 smooth variant instead.
Q: What is the difference between the pre-1982 smooth bars and the 1982/Later dimpled bars?
A: The primary difference is the control mounting surface. The 1982/Later bars have dimples to accommodate the specific bolt pattern of late-style switch housings, while the pre-1982 bars feature a completely smooth surface designed to clamp against early-style housings without dimples.
Q: How do I measure my riser centers to ensure the 3 1/2″ knurling will fit?
A: Measure the distance between the center points of your riser mounting holes on your triple tree. The knurled section on these handlebars is exactly 3 1/2″ wide, so your riser centers must match this dimension to ensure the clamping force grips the knurling properly.
Q: Can I order a single pair of handlebars for a custom build without a minimum order quantity?
A: Yes, we support single-piece orders for custom builders and independent repair shops. You can order exactly one pair of these ape hanger handlebars for your specific build without being forced to meet a high minimum order quantity.
Q: How do I verify the overall rise and pullback dimensions before placing a bulk order?
A: We provide a key dimensions sheet with every quotation that lists the exact 12″ rise, 35″ total width, and 8 5/8″ pullback. You can also request a sample pair to physically measure and test the geometry against your custom frame and cable routing requirements before committing to bulk inventory.
