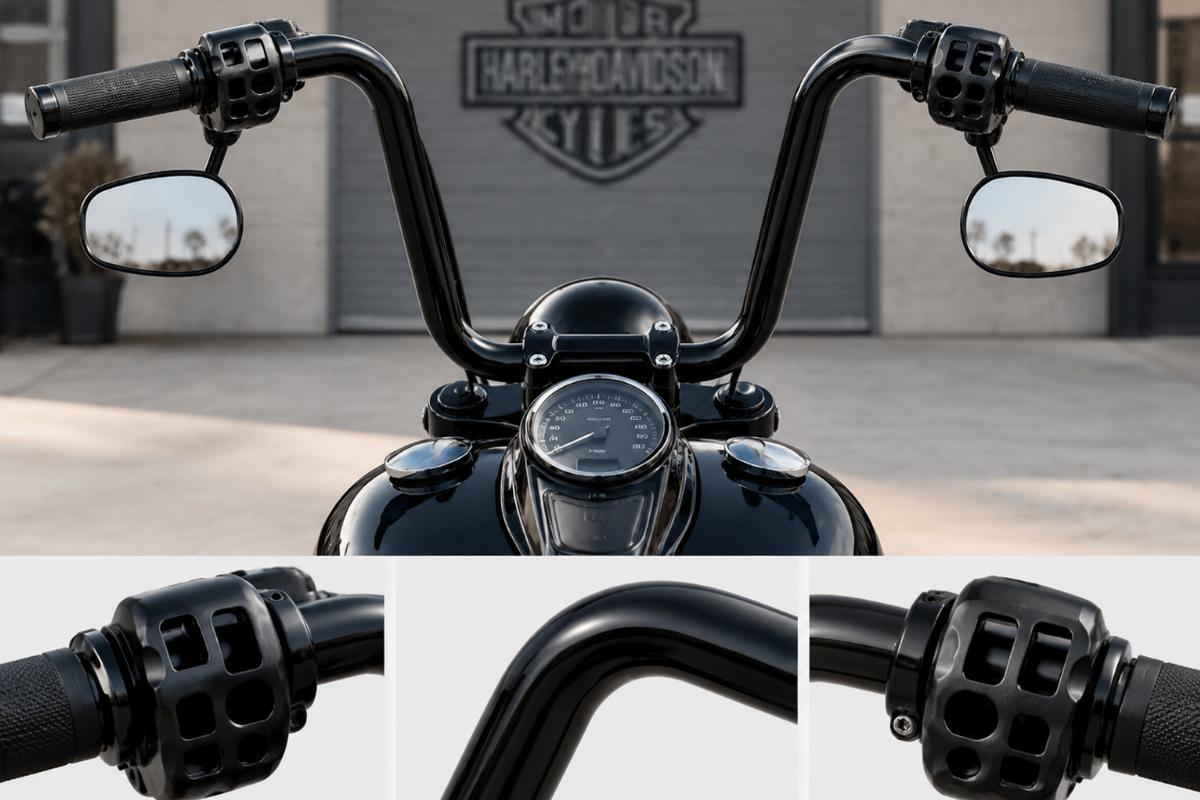

Ape Hanger Handlebars for Harley-Davidson 1982-Later
Fitment Checked Before Quotation — We verify the exact model year and switch housing style to ensure the dimpled sections match your build before sending a quote.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | handlebars |
| Material | steel |
| Diameter | 1″ O.D. |
| Finish | Black |
| Rise | 16″ |
| Total Width | 35″ |
| Center Width | 9″ |
| Pullback | 7 3/8″ |
| Knurling | Knurled for risers mounted on 3 1/2″ centers |
| Design | Designed to be used with external throttle cables |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson | 1982-Later | 1982/Later type is dimpled for 1982/Later style switch housings and drilled for wire harness clips |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Dimpled Cutouts Matter for 1982-Later Ape Hanger Handlebars for Harley-Davidson
Switch housings will not seat correctly on smooth bars, leaving wire harness clips with nowhere to attach.
I started on the shop floor tearing down bikes and supplying parts from the Pearl River Delta. Over the years, I learned to identify handlebars by their actual machining, not just the listing. I remember a batch of ape hangers where a buyer just said Harley without the year. We sent smooth bars for pre-1982 switch housings, but his bike was a 1982/Later model needing dimpled bars drilled for wire harness clips. The switch housings would not seat right, and the wiring had nowhere to clip [NEED_CITE: switch housing mounting changes across model years for this platform]. Since then, I always check if the bar is smooth or dimpled, and verify the exact year range before quoting.
Verifying Switch Housing Compatibility
When sourcing ape hanger handlebars for harley-davidson, the transition year dictates the machining required on the control surface. Pre-1982 models use smooth bars, while 1982 and later models require specific dimpled cutouts to accept the updated switch housing design. If you install smooth bars on a later model, the housings sit flush against the steel but lack the recessed pockets needed for the internal switches, causing binding and misalignment [NEED_CITE: control housing dimensional changes by model year].
Drilling for Wire Harness Routing
Beyond the dimples, these 1982-Later bars feature pre-drilled holes specifically positioned for wire harness clips. This routing detail keeps the internal wiring tight against the steel, preventing chafing against the risers or the fuel tank. Listing descriptions often omit these drilling details, leaving builders to guess if the bars will actually clear their specific wiring setup without custom modifications [NEED_CITE: wire harness clip placement standards for custom builds].
Decoding the 16-Inch Rise and 35-Inch Width
A 16″ rise combined with a 35″ total width and 7 3/8″ pullback creates a specific riding geometry that directly impacts cable routing. When moving to this height, stock throttle, clutch, and brake cables will likely be too short, requiring aftermarket extended cables to reach the controls safely. The 9″ center width and 3 1/2″ knurled section ensure the bars clamp securely into standard risers without slipping under load [NEED_CITE: cable length requirements for high-rise handlebar setups].
The Hidden Cost of Incorrect Riser Center Spacing

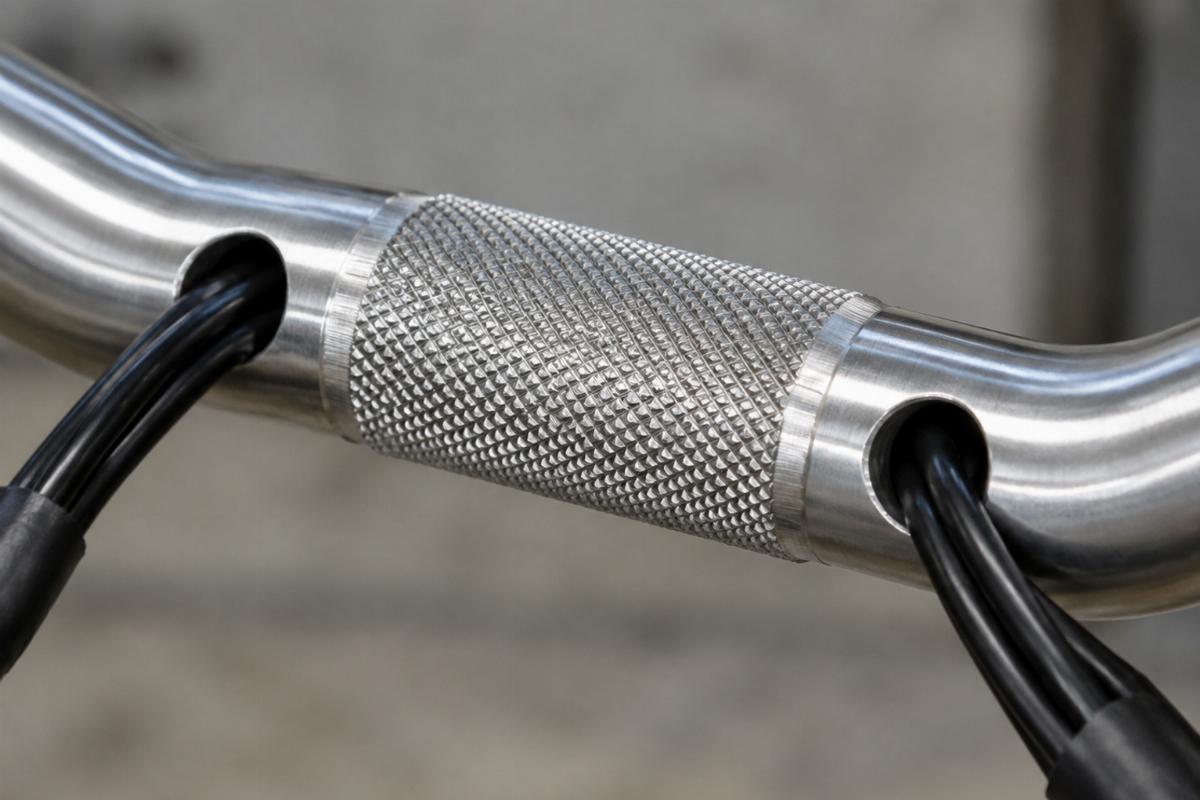

The center section of these ape hanger handlebars for harley-davidson is knurled specifically for risers mounted on 3 1/2″ centers. If your risers are spaced differently, the knurled grip zone will not align with the clamp blocks, leaving smooth steel in the clamping area. This mismatch reduces friction, allowing the bars to rotate forward under heavy braking or when hitting road imperfections, forcing a complete teardown to re-drill or replace the risers [NEED_CITE: riser clamp spacing variations in aftermarket chassis parts].
Sourcing with Fitment Certainty
We confirm fitment against the platform family and model year range before issuing any quotation for these handlebars. Our catalogue supports single-piece orders, meaning a custom shop building one bike does not need to meet bulk minimums just to get the right part. We cross-reference against factory numbers marked reference only, ensuring you get the exact 1″ O.D. dimpled steel bar your 1982-Later model requires, complete with a fitment sheet detailing the 16″ rise and 35″ width.
Documentation and Build Records
- Fitment sheet stating applicable platforms and 1982-Later year ranges
- Cross-reference sheet with factory numbers marked reference only
- Key dimensions including 16″ rise, 35″ width, and 7 3/8″ pullback
- Finish specification for the black coating
- Quality inspection record verifying dimple and drill placement
- Packing photographs showing the knurled center and external cable design
Receiving and Pre-Installation Checks
- Verify the 16″ rise and 35″ total width match your custom riding position requirements
- Confirm the 3 1/2″ knurled center aligns with your riser mounting blocks
- Inspect the dimpled cutouts to ensure they match your 1982/Later style switch housings
- Check the drilled holes for wire harness clips to ensure they are clear of steel burrs
- Ensure the black finish is uniform across the 1″ O.D. steel tubing before mounting
- Have a qualified technician measure cable lengths before final assembly
Requesting a Fitment Check
Send your model and year for a fitment check to confirm these ape hanger handlebars for harley-davidson match your build. Provide your exact model designation, year, and a photo of your current switch housings or riser setup if the year is unknown. Let us know if you need a sample for fitment confirmation before placing a bulk order for your shop.
Frequently Asked Questions
Q: How do I confirm my 1982-Later Harley-Davidson model will fit these dimpled handlebars?
A: Verify your model year falls within the 1982-Later range and uses the updated switch housing design. These bars feature dimples and drilled holes specifically machined for that era. If your bike is pre-1982, it requires smooth bars without these cutouts. Send your model and year for a fitment check to be absolutely certain before ordering.
Q: What is the difference between pre-1982 smooth bars and 1982/Later dimpled bars for switch housings?
A: Pre-1982 models use smooth handlebars where the switch housings clamp directly onto the steel. Starting in 1982, the housings changed to require dimpled cutouts for proper seating and alignment. Installing smooth bars on a later model prevents the switches from sitting flush, while dimpled bars on an early model leave empty recesses that collect moisture.
Q: How do I measure my riser centers to ensure they match the 3 1/2″ knurled section?
A: Measure the distance between the center of the left riser mount to the center of the right riser mount on your triple tree. The center section of these bars is knurled specifically for a 3 1/2″ spacing. If your measurement differs, the knurled grip zone will not align with your clamp blocks, reducing holding friction.
Q: Can I order a single pair of handlebars for a custom build without meeting a high minimum order quantity?
A: Yes, we support single-piece orders for custom shops and independent builders. You do not need to meet a bulk minimum to purchase one pair of these 16-inch rise handlebars. We provide the same fitment verification, dimension sheets, and finish inspection records for a single unit as we do for a large distributor order.
Q: Do you provide a fitment sheet with key dimensions like rise, pullback, and width before I place a bulk order?
A: Yes, we provide a detailed fitment sheet before quotation that lists the applicable platforms and year ranges. This document includes key dimensions such as the 16″ rise, 35″ total width, 9″ center width, and 7 3/8″ pullback. We also supply finish specifications and quality inspection records to ensure batch consistency for your catalogue or build requirements.
