Ape Hanger Handlebars 14″ Rise for Harley-Davidson 1982-Up
Fitment Checked — Every ape hanger handlebars for harley-davidson is mapped against switch housing styles and riser centers before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Ape Hanger Handlebars |
| Diameter | 1″ O.D. |
| Material | Steel |
| Finish | Black |
| Rise | 14″ |
| Total Width | 34″ |
| Center Width | 9″ |
| Pullback | 8 1/4″ |
| Risers Compatibility | Knurled for 3 1/2″ centers |
| Throttle Cable Design | External throttle cables |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson | 1982-Up | Dimpled for 1982/Later style switch housings; drilled for wire harness clips. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Switch Housing Dimples Dictate Your Ape Hanger Handlebars for Harley-Davidson
Dimple placement must match the switch housing year, or the housing will not seat.
I still remember a batch of 14-inch rise bars sent to a custom shop in Latin America. They ordered the bars but did not specify the switch housing year. We shipped smooth pre-1982 type bars, but their 1982/Later switch housings would not seat without the dimples. The risers also slipped because the center lacked the 3 1/2″ knurling. Now, I always map the exact bar diameter, rise, pullback, and wiring-hole details against the specific switch housing style before any trial fit. Listing catalogs often miss these wiring-hole details, causing fitment issues with switch housings and risers [NEED_CITE: switch housing dimple changes across model years for this platform].

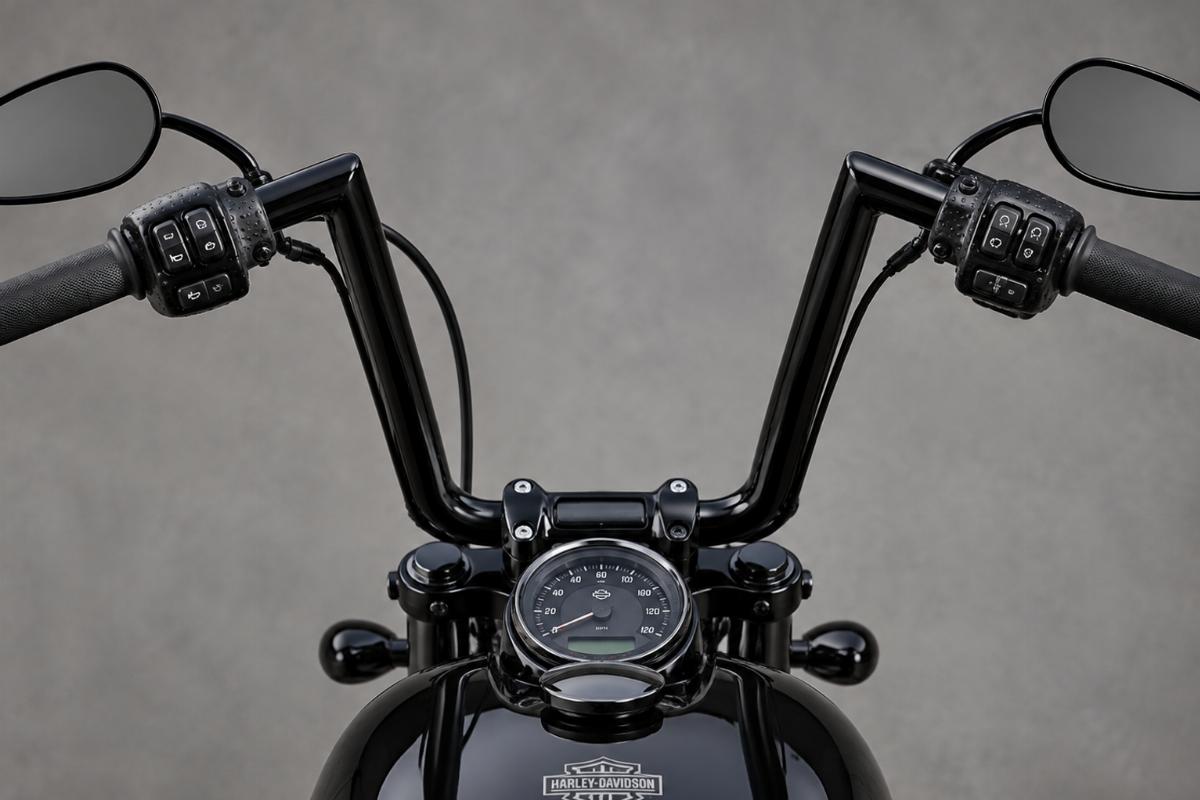

Verifying the 1982-Up Dimple Pattern
When sourcing ape hanger handlebars for harley-davidson, the 1982-Up style requires a dimpled design to accept the later switch housings. If the bar is smooth, the housing will sit unevenly, leaving the controls vulnerable to rotation. This 14″ rise set is specifically dimpled for 1982/Later housings and drilled for wire harness clips, ensuring the controls stay locked in place once tightened.

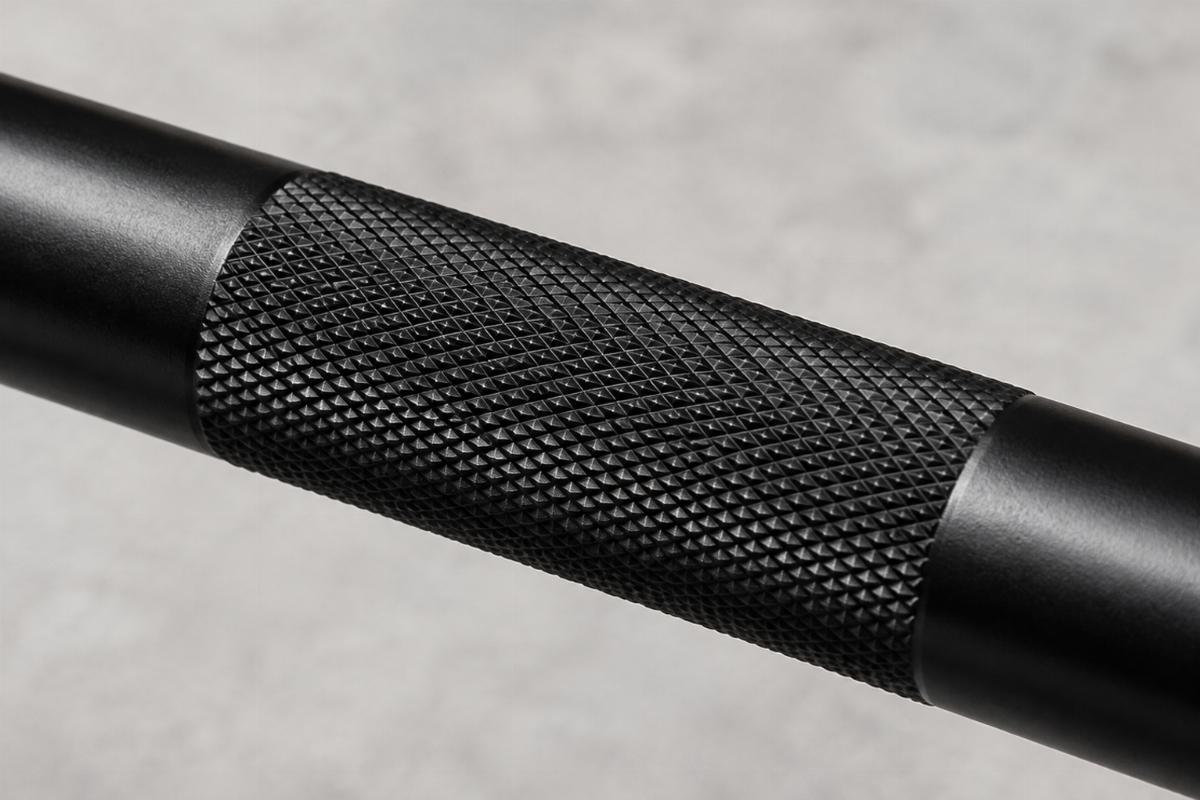

Riser Center Knurling and Grip Security
A common failure point in custom builds is riser slip caused by a smooth center section. These bars feature a knurled center section specifically sized for risers mounted on 3 1/2″ centers. The knurling bites into the riser clamp, preventing the bars from twisting under throttle or braking loads. Always verify your riser mounting centers match this 3 1/2″ spacing before final assembly [NEED_CITE: riser clamp specifications by aftermarket manufacturer].
Reading the Key Dimensions for Ergonomics and Routing
The 14″ rise and 34″ total width define the rider’s reach and arm position, while the 8 1/4″ pullback determines wrist angle. The 9″ center width dictates how much bar extends past the risers for control mounting. Because these ape hanger handlebars for harley-davidson are designed for external throttle cables, the 34″ width must accommodate the extra cable routing length without stretching the lines. Checking the total width and pullback ensures the cables reach without binding.
The Hidden Cost of Overlooking Riser and Switch Specs
Ordering bars without confirming the center knurling or switch housing dimples leads to immediate installation failures. A smooth center means the risers slip, requiring a teardown to add grip paste or replace the bars. Missing dimples mean the switch housings do not seat, forcing the builder to modify the housings or wait for a replacement set. These fitment errors stall the build on the lift and waste shipping costs, turning a simple handlebar swap into a multi-week delay [NEED_CITE: assembly delays caused by incorrect control mounting dimensions].
Sourcing Controls with Verified Dimensions
We confirm the fitment of every ape hanger handlebars for harley-davidson against the platform family and model year range before quoting. Our black finish is inspected for batch consistency so side-by-side parts match. We support a single-piece minimum order for custom shops building one bike, and we supply samples for fitment confirmation before you commit to bulk inventory.
Documentation Included with Your Shipment
- Fitment sheet stating the 1982-Up platform and year range
- Dimension sheet listing 14″ rise, 34″ width, and 8 1/4″ pullback
- Finish specification for the black coating
- Quality inspection record for the knurled center and dimples
- Warranty terms covering material and finish defects
Pre-Installation Checks for Your Shop
- Verify the 14″ rise and 34″ width match your cable routing plan
- Confirm the dimples align with your 1982/Later switch housings
- Check that your risers match the 3 1/2″ knurled center spacing
- Inspect the black finish for consistency across the 1″ O.D. steel
- Ensure the drilling for wire harness clips is clear of burrs
- Store the bars in a dry area to protect the black finish before install
Request a Fitment Check
Send your model and year for a fitment check against these 1982-Up dimpled bars. Provide your riser center spacing and switch housing style to confirm the knurling and dimples match. Let us know if you need a single piece or a sample for trial fitting before placing a bulk order.
Frequently Asked Questions
Q: How do I confirm my model year fits the 1982-Up dimpled handlebars?
A: Check your switch housing style. If your motorcycle uses the 1982/Later style switch housings, these dimpled bars are the correct fit. Pre-1982 housings require smooth bars. Verify your model year against the 1982-Up range to ensure the wiring harness clips align properly.
Q: What dimensions matter for riser and switch housing compatibility?
A: The center width and 3 1/2″ knurling determine riser fit, while the dimple placement dictates switch housing compatibility. You must also check the 1″ O.D. to ensure your controls and cables match. The 8 1/4″ pullback and 14″ rise affect your final riding position.
Q: Can I order a single piece of handlebars for a custom build?
A: Yes, we support a single-piece minimum order for custom builders and repair shops. You can order just one set of these 14″ rise bars without meeting a high volume threshold. We also offer sample supply for fitment confirmation before you place larger bulk orders.
Q: How do you ensure finish consistency between black batches?
A: We inspect the black finish on our main front-end and control lines to maintain batch consistency. This ensures that if you order multiple sets or replacement parts later, the black coating matches side by side. The finish specification is included in your shipment documentation.
Q: Can I get a sample to confirm fitment before placing a bulk order?
A: Yes, we provide sample supply for fitment confirmation before bulk orders. This allows your shop to test the 3 1/2″ knurling and dimple placement on your specific risers and switch housings. Send your model and year to request a sample for trial installation.
