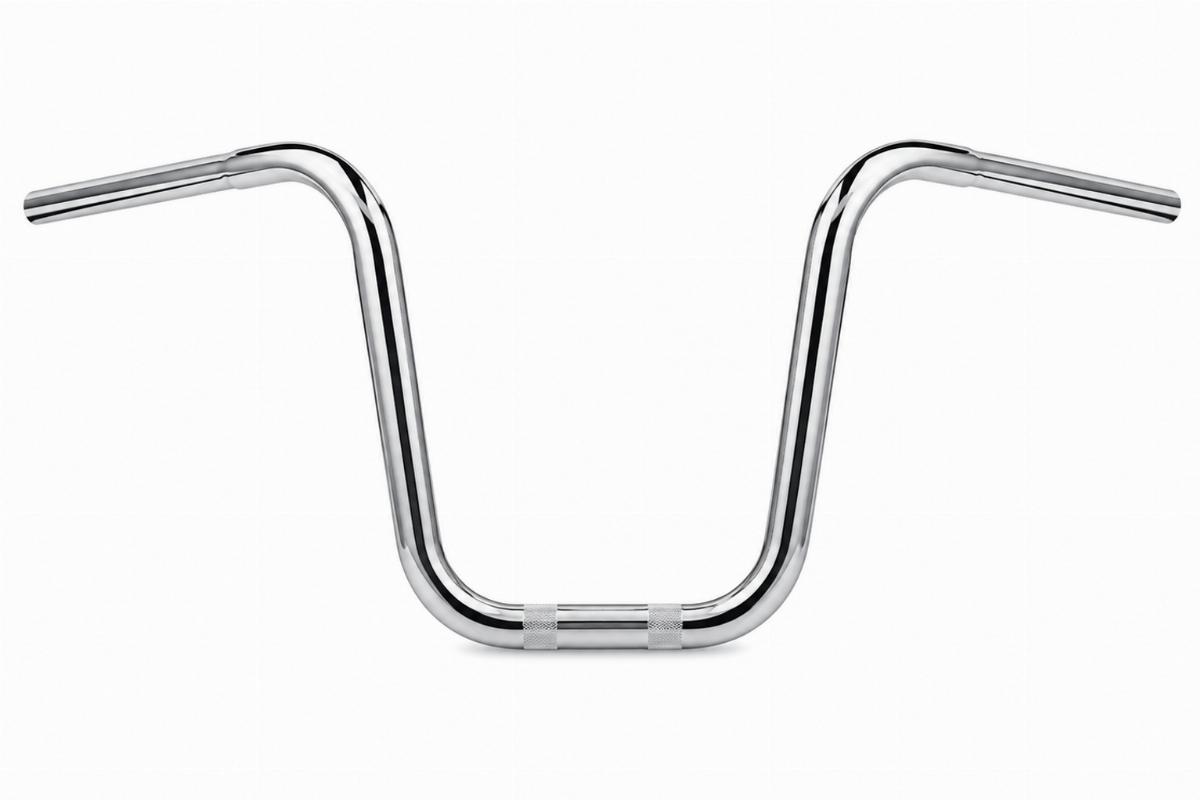

Ape Hanger Handlebar for 1982-Later Models 14″ Rise – Aftermarket Replacement
Fitment Verified by Platform — Every handlebar is checked against the 1982-later platform family and Fly-By-Wire routing requirements before quotation.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebar |
| Diameter | 1 1/2″ |
| Riser Area O.D. | 1″ |
| Rise | 14″ |
| Pull back | 5″ |
| Finish | Chrome Plated |
| Wiring | Drilled for internal wiring |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| 1982/Later models including Fly-By-Wire | 1982/Later | Confirm riser clamp size matches 1 1/2″ diameter. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Handlebar Listings Fail on Critical Dimensions
Missing diameter and wiring-hole details cause immediate fitment failures and return delays.
When sourcing a handlebar for harley-davidson 1982-up models, buyers often encounter listings that omit the center diameter or fail to mention internal wiring holes. A shop once ordered 14-inch ape hangers for a Fly-By-Wire custom build, assuming standard dimensions. The listing missed the 1 1/2-inch center diameter requirement, meaning their 1-inch risers could not clamp the bar. Worse, the un-drilled centers completely blocked the internal wiring routing needed for the custom setup. I had to tear down the stack, measure the riser clamping area with a caliper, and verify the drill paths before shipping replacements [NEED_CITE: factory service manual specifications for fly-by-wire handlebar routing]. Verifying every diameter, rise, pullback, and drill specification prevents these costly assembly halts.
Checking Riser Clamp Compatibility for 1 1/2″ Bars
When fitting a handlebar for harley-davidson 1982-up models, the transition from the 1 1/2″ center diameter to the 1″ riser area O.D. dictates which clamps will work. If your existing risers are designed for a uniform 1-inch bar, they will not grip the thicker center section. You must confirm the riser area O.D. matches your specific riser setup to ensure a secure mount without altering the steering stem geometry.

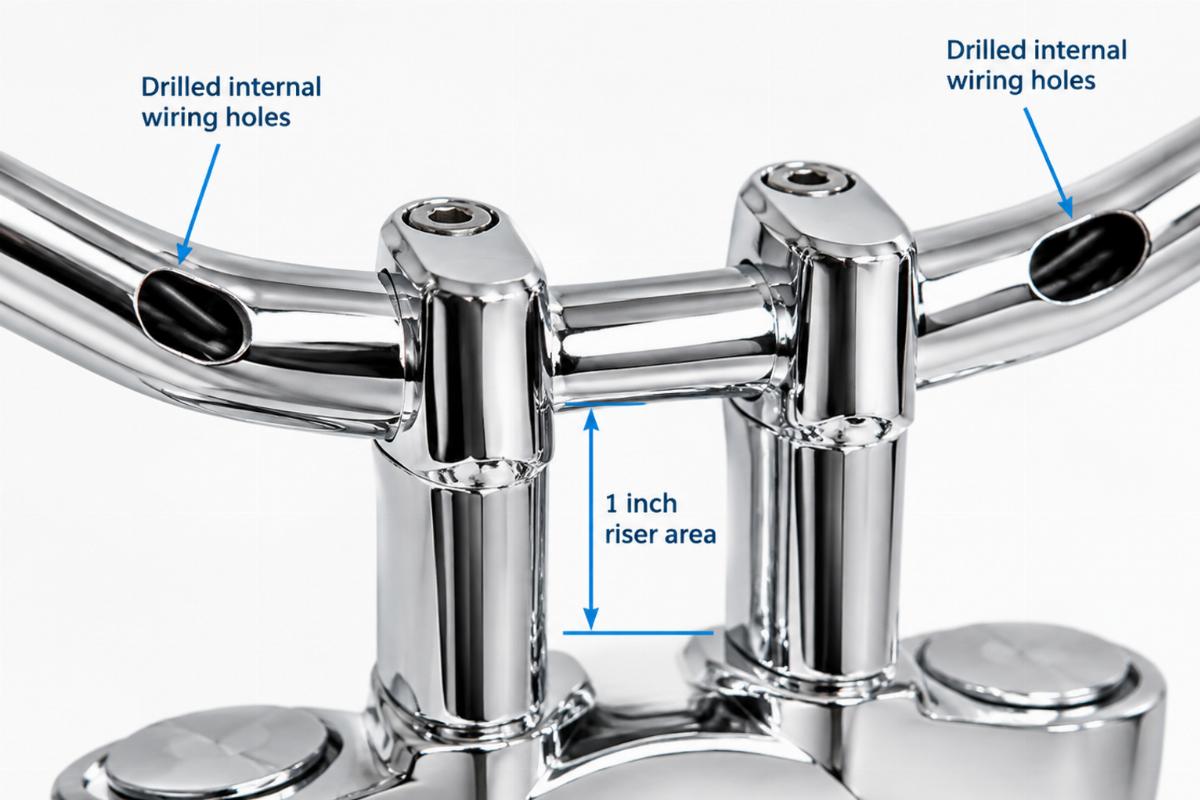

Verifying Internal Wiring Paths for Custom Builds
Fly-By-Wire systems and custom switch housings require clear internal pathways. This handlebar for harley-davidson 1982-up models is drilled for internal wiring, but the drill path must align with your specific switch housing placement and riser base design [NEED_CITE: wiring routing changes across model years for this platform]. Checking the drill specification ensures the harness can pass through the 14″ rise without pinching or requiring external conduit.
Understanding Rise and Pullback Measurements
A 14″ rise combined with a 5″ pull back significantly alters the rider’s reach and arm angle. While this provides a classic ape hanger stance, it also changes the required length for throttle, clutch, and brake cables. You must measure your current cable routing to determine if stock lengths will accommodate the new geometry, or if extended aftermarket cables are necessary to maintain proper tension and operation.
The Hidden Cost of Incorrect Center Diameters
Ordering a handlebar with the wrong center diameter stops a build dead in its tracks. If a 1-inch riser is forced onto a 1 1/2-inch bar, the clamp will not close, leaving the steering unstable and dangerous. Conversely, using a 1 1/2-inch riser on a 1-inch bar leaves a gap that allows the bar to rotate under load. These dimensional mismatches mean the bike sits on the lift while the shop waits for the correct clamps or a replacement bar, delaying the entire project timeline.
Sourcing Aftermarket Controls with Confidence
We verify fitment against the 1982-later platform family and Fly-By-Wire requirements before providing a quotation. Our catalogue offers this handlebar in a chrome plated finish, checked for dimensional accuracy. We support a minimum order from one piece, allowing custom builders to source a single replacement without meeting bulk dealer quotas. Every dimension, including the 14″ rise and 5″ pull back, is confirmed against the platform specifications.
Documentation Provided with Your Order
- Fitment sheet stating applicable 1982-later platforms and year ranges.
- Key dimensions sheet listing bar diameter, rise, and pull back.
- Finish specification detailing the chrome plating process.
- Quality inspection record verifying drill paths and riser area O.D.
- Warranty terms covering manufacturing defects.
- Packing photographs showing the chrome finish and protective wrapping.
###收货与装车前核对 Checklist
- Verify the 1 1/2″ center diameter matches your riser clamp size.
- Confirm the 1″ riser area O.D. fits your specific riser setup.
- Check that the internal wiring holes are clear of debris or plating residue.
- Inspect the chrome plated finish for any plating defects or scratches.
- Measure the 14″ rise and 5″ pull back to confirm cable length requirements.
- Have a qualified technician inspect the fitment before final assembly.
Request a Fitment Check for Your Build
Send your model and year to verify if this handlebar for harley-davidson 1982-up models fits your specific setup. Provide your riser clamp size and switch housing requirements to ensure the 1 1/2″ diameter and drilled wiring paths match your needs. We can also supply a sample for fitment confirmation before you commit to a bulk order for your shop.
Frequently Asked Questions
Q: How do I confirm my 1982-up model fits this handlebar?
A: Verify that your motorcycle uses a 1 1/2″ center diameter handlebar setup. Check your riser clamp size to ensure it matches the 1 1/2″ diameter and the 1″ riser area O.D. Confirm that the 14″ rise and 5″ pull back align with your cable routing needs. Send your exact model and year for a final fitment check.
Q: Does this handlebar have holes drilled for internal wiring?
A: Yes, this handlebar is drilled for internal wiring. The drill paths are designed to allow the harness to pass through the 14″ rise and 5″ pull back. Ensure your switch housings and riser bases have corresponding openings to allow the wiring to exit cleanly without pinching the harness.
Q: Can I order a single piece handlebar for a custom build?
A: Yes, we support a minimum order from one piece. You do not need to meet bulk dealer quotas to purchase this handlebar. This allows custom builders and independent repair shops to source a single replacement part for a specific build without unnecessary inventory commitments.
Q: What are the key dimensions to measure for handlebar replacement?
A: Measure the center diameter to ensure it matches your riser clamps. Check the riser area O.D. for compatibility. Measure the rise and pull back to determine if your existing throttle, clutch, and brake cables are long enough. Verify the drill specification if you require internal wiring routing.
