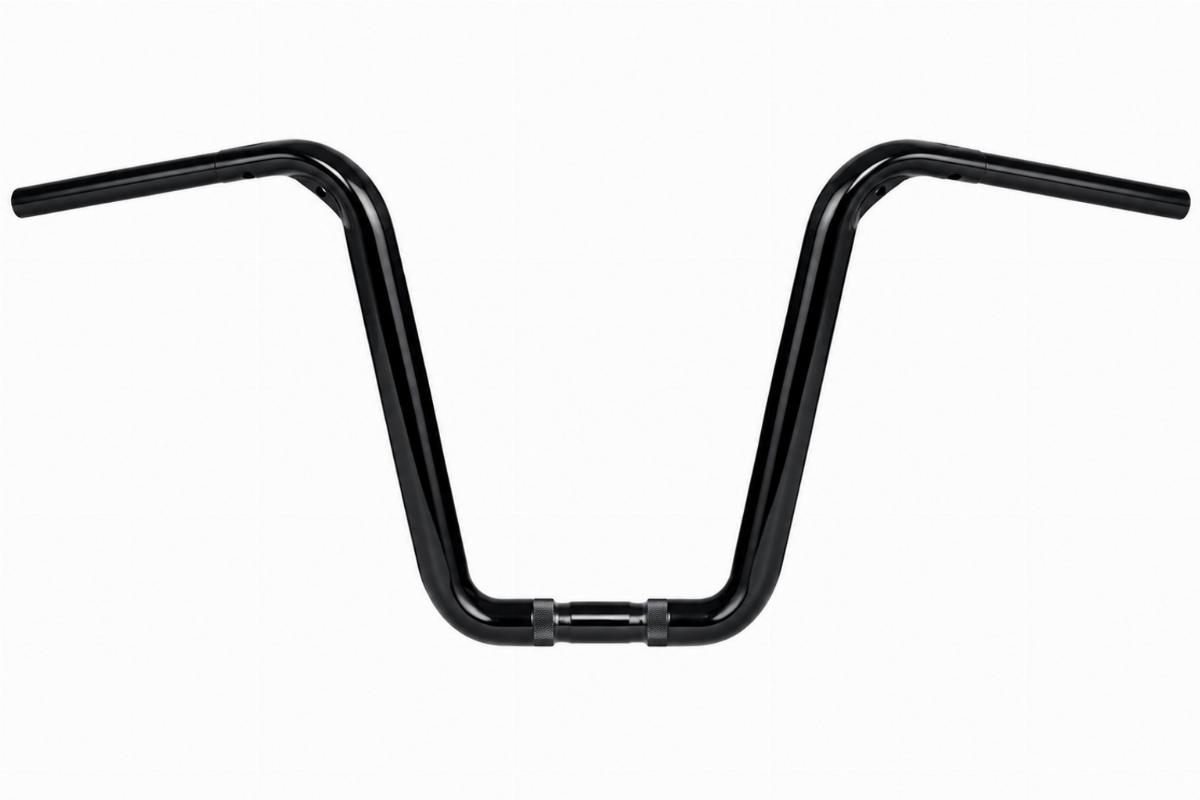

Ape Hanger Handlebar 12″ Rise for Harley-Davidson 1982-Up
Fitment Verified by Year — Every 12-inch rise bar is checked against 1982-up platform specifications, including Fly-By-Wire routing requirements, before quotation.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebar |
| Diameter | 1 1/2″ |
| Rise | 12″ |
| Riser Area O.D. | 1″ |
| Pull back | 5″ |
| Finish | Black |
| Wiring | Drilled for internal wiring |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Harley-Davidson (including Fly-By-Wire) | 1982-up | Confirm riser clamp compatibility with 1″ riser area O.D. and internal wiring alignment. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Missing Wiring and Riser Dimensions Cause Custom Build Delays
Exact riser area and internal drilling prevent throttle sensor misalignment.
Handlebar listings frequently omit the riser area outer diameter or internal wiring hole placement. When a 12-inch rise bar arrives with the wrong riser clamp size or misaligned drilling for electronic throttle sensors, the bike sits on the lift. We verify these exact routing and mounting dimensions for 1982-up models to avoid this [NEED_CITE: wiring routing and riser mounting dimension changes across model years].
Matching Riser Clamps to the 1″ Riser Area
Finding the right ape hanger handlebar for harley-davidson requires checking how the bar transitions at the center. This handlebar features a 1 1/2″ overall diameter but steps down to a 1″ riser area O.D. If your triple tree clamps expect a continuous 1 1/4″ or 1 1/2″ grip zone, this bar will slip or fail to seat properly. Always measure your existing clamp inner diameter before ordering.

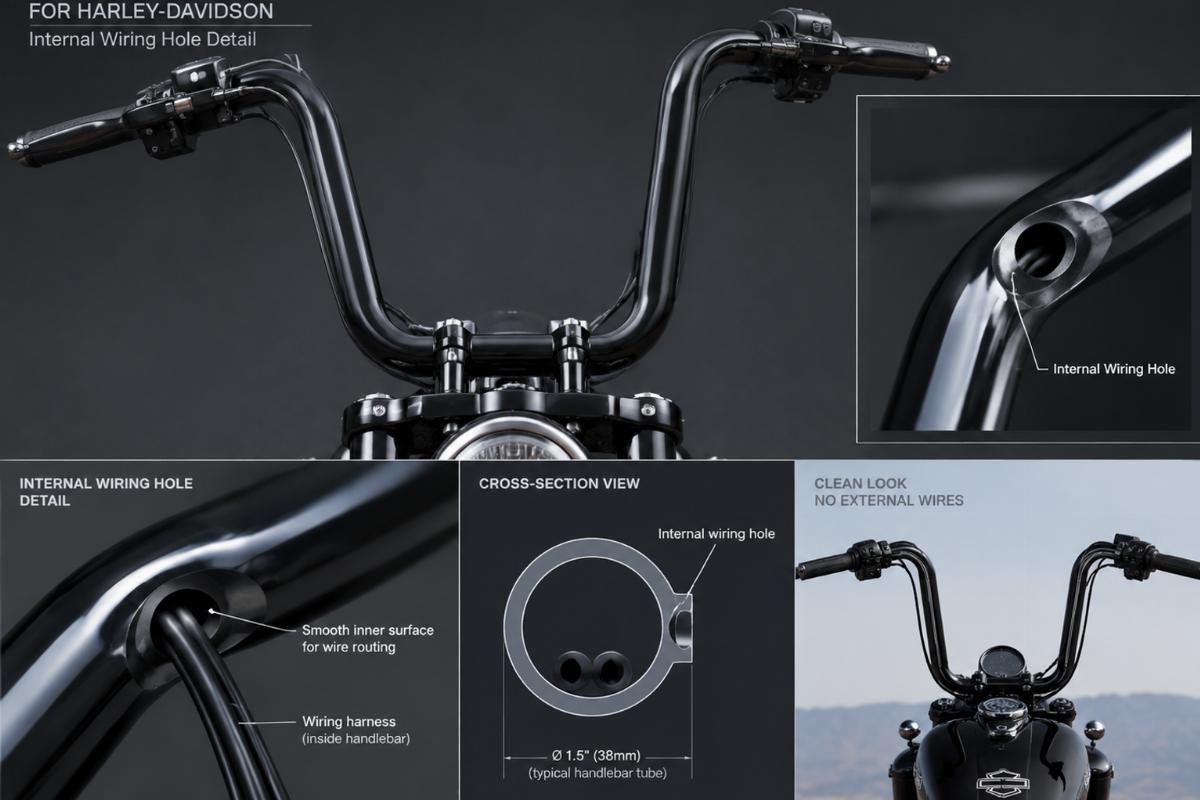

Routing Internal Wires on Fly-By-Wire Models
The 12″ rise and 5″ pullback change the physical path of your controls. Because this bar is drilled for internal wiring, the exit holes must align perfectly with your Fly-By-Wire electronic throttle sensors and switch housings. Misaligned holes mean drilling new ones or running wires externally, which ruins the clean look of a custom build [NEED_CITE: connector changes across model years for this platform].
Understanding the 12″ Rise and 5″ Pullback
A 12-inch rise significantly alters your riding position and cable tension. The 5-inch pullback brings the grips closer to the rider compared to a straight pull design. When combining a 12″ rise with a 5″ pullback on a 1982-up chassis, you must verify that your brake lines, clutch cables, and throttle cables have enough slack to accommodate the new geometry without stretching or binding at full steering lock.
The Cost of Incorrect Handlebar Specifications
Ordering a bar without confirming the riser area O.D. means the clamps will not tighten securely, creating a safety hazard. If the internal wiring holes are drilled for a different year range, the throttle sensor will not connect, leaving the motorcycle inoperable. These fitment errors force shops to halt the build, return the part, and wait for a replacement, delaying the entire project [NEED_CITE: factory service manual specifications by model year].
Sourcing Aftermarket Handlebars with Confidence
We confirm fitment against the 1982-up platform family and specific year ranges before providing a quotation. Our catalogue offers this ape hanger handlebar for harley-davidson with exact dimensions, including the 1″ riser area O.D. and internal wiring details. We support a minimum order from one piece, allowing custom builders to order a single bar for a specific project without meeting high volume thresholds.
Included Documentation and Support
- Fitment sheet listing the 1982-up year range and Fly-By-Wire compatibility.
- Dimension sheet detailing the 12″ rise, 5″ pullback, and 1″ riser area O.D.
- Finish specification for the black coating applied to this handlebar.
- Quality inspection record verifying the internal wiring hole alignment.
Receiving and Checking Your Handlebar
- Verify the 12″ rise and 5″ pullback match your custom build requirements.
- Measure the 1″ riser area O.D. to ensure compatibility with your clamps.
- Check the black finish for any shipping damage or surface defects.
- Inspect the internal wiring holes for clean drilling without metal burrs.
- Store the handlebar in a dry environment to protect the black finish.
Requesting a Fitment Check
Send your exact model and year to confirm if this 12-inch rise bar fits your specific 1982-up Harley-Davidson. Provide your riser clamp measurements and confirm if your setup requires Fly-By-Wire internal wiring alignment. We can also supply a sample for fitment confirmation before you commit to a bulk order for your shop.
Frequently Asked Questions
Q: How do I know if the internal wiring holes will align with my Fly-By-Wire sensors?
A: The wiring holes are drilled specifically for 1982-up platforms. You must verify your exact model year and throttle sensor placement against our fitment sheet. If your bike has aftermarket switch housings, measure the distance between the sensor mounts to ensure they match the bar’s drilled exit points.
Q: Will my existing 1 1/2″ riser clamps work with this handlebar?
A: No, this handlebar has a 1 1/2″ overall diameter but features a 1″ riser area O.D. at the center mounting zone. You need clamps designed to grip a 1″ diameter bar at the center, or you must use reducing bushings to prevent slipping and ensure a secure mount.
Q: Do I need to buy longer cables for a 12″ rise and 5″ pullback?
A: A 12-inch rise significantly changes the distance to your controls. You must measure your current cables and compare them to the new routing path. Most 12-inch rises require extended brake lines, clutch cables, and throttle cables to prevent binding at full steering lock.
Q: Can I order just one handlebar for a custom build?
A: Yes, we support a minimum order from one piece. You do not need to meet a high volume threshold to purchase this handlebar. We can also provide a sample for fitment confirmation if you need to test the riser area and wiring alignment before proceeding.
