Aftermarket Replacement Z Style Handlebars for Custom Use
Single Piece Order Available — Custom builds require exact switch housing compatibility, and we verify the smooth bar diameter for your specific pre-1982 setup before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebars |
| Material | Steel |
| Diameter | 1″ O.D. |
| Style | Z Style |
| Finish | Chrome Plated |
| Width | 34 1/4″ |
| Rise | 4″ |
| Pullback | 4 1/2″ |
| Center Width | 8″ |
| Type | Pre-1982 |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom Use | Pre-1982 | Pre-1982 type bars are smooth the entire length and are designed for 1972/1981 style switch housings. Not designed for models that have air forks with handlebar type air reservoir. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Verifying Switch Housing Compatibility for Z Style Handlebars for Harley-Davidson
Pre-1982 handlebars require a completely smooth surface to properly seat 1972-1981 style switch housings.
When sourcing z style handlebars for harley-davidson custom builds, the transition between model years dictates the bar surface texture. Bars intended for earlier setups must remain smooth along the entire length to allow the switch housings to clamp securely without slipping. If a listing omits this surface detail, the housings may fail to grip, leaving the controls unstable. I always verify if the bars need to be smooth or dimpled before quoting to prevent this exact control seating issue [NEED_CITE: switch housing mounting styles across model years].
Checking the Smooth Surface Requirement

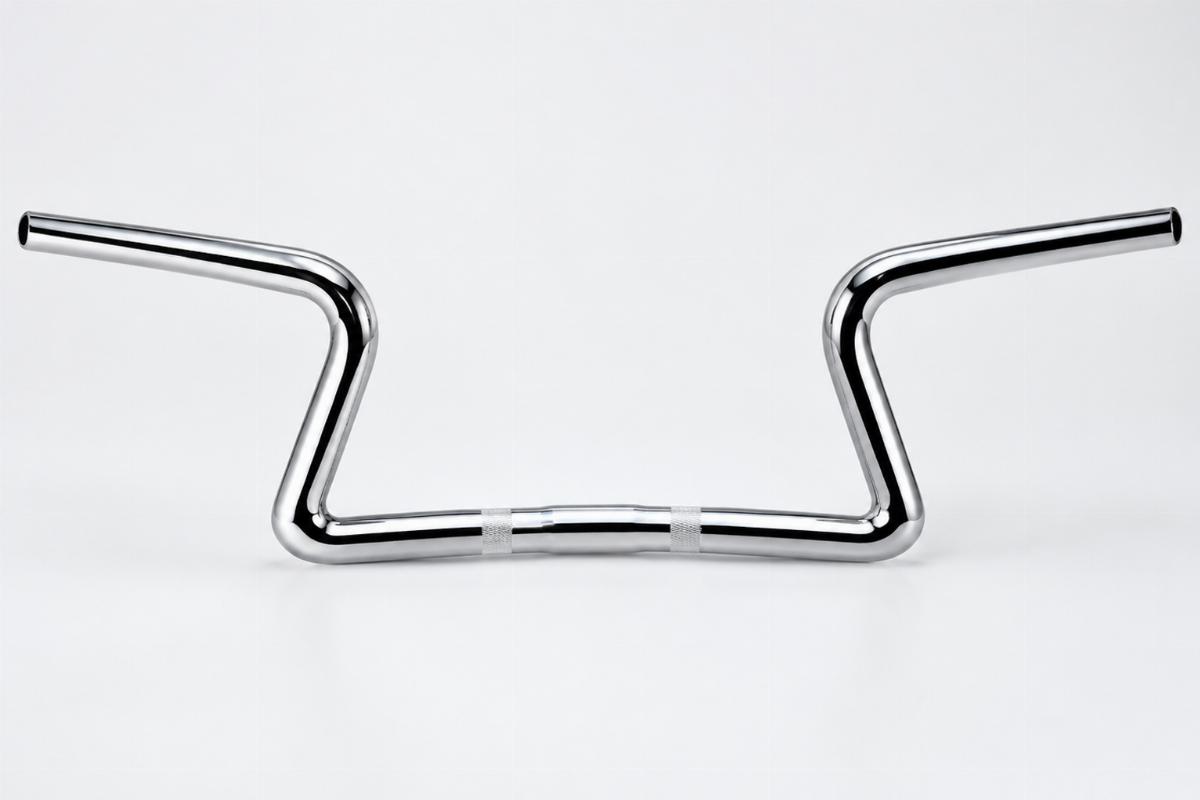

The 1″ O.D. steel construction on these z style handlebars for harley-davidson is specifically designed to remain smooth the entire length. This ensures that 1972/1981 style switch housings can mount directly without interference from dimples. Confirming this surface type is critical, as later models introduced dimpled sections that physically block early housings from sliding into place.
Measuring the Z Style Geometry
These z style handlebars for harley-davidson feature a 34 1/4″ width, a 4″ rise, and a 4 1/2″ pullback. The 8″ center width provides the necessary clearance for the riser clamps. Understanding how these specific dimensions interact with your triple tree spacing and riser height prevents steering geometry conflicts and ensures the controls fall exactly where the rider expects them [NEED_CITE: handlebar geometry and rider ergonomics for custom frames].
The Cost of Overlooking Handlebar Type Air Reservoirs
Installing these bars on a model equipped with air forks featuring a handlebar type air reservoir will result in a direct physical conflict. The reservoir mounting points occupy the exact space needed for the handlebar clamps. Ignoring this exclusion means the front end sits idle on the shop floor while you source a different bar style, delaying the entire build timeline.
Sourcing with Fitment Certainty

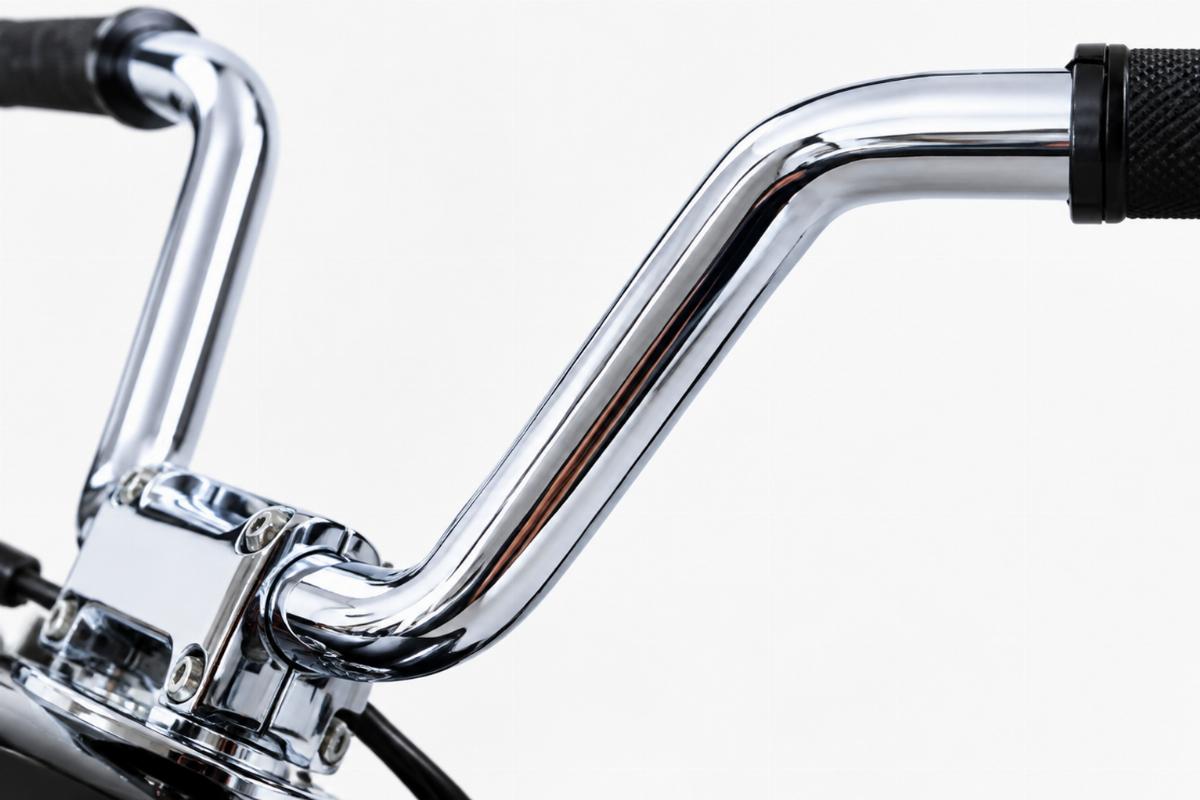

We confirm the fitment of these z style handlebars for harley-davidson against the pre-1982 platform family and year range before providing a quotation. Our chrome plated finish is inspected for consistency, ensuring the bars match when fitted side by side on the bike. You can order a single set for a custom build without facing minimum order quantity blocks, and we provide a sample for fitment confirmation if required.
Documentation Provided
- Fitment sheet stating the pre-1982 year range and custom use platform
- Key dimensions sheet listing the 34 1/4″ width, 4″ rise, and 4 1/2″ pullback
- Finish specification detailing the chrome plating process
- Quality inspection record verifying the smooth surface along the entire length
Receiving and Pre-Installation Checks
- Verify the 1″ O.D. steel bars are smooth the entire length for your 1972/1981 switch housings
- Measure the 34 1/4″ width and 8″ center width against your riser clamp spacing
- Inspect the chrome plated finish for any shipping damage or plating defects
- Confirm your fork setup does not use a handlebar type air reservoir before mounting
- Have a qualified technician verify control clearance before final tightening
Requesting a Fitment Check
Send your model and year for a fitment check to confirm these z style handlebars for harley-davidson match your switch housing style. Provide the 1972-1981 housing type and your required finish to ensure we quote the correct smooth bar variant. Let us know if you need a sample to verify the chrome finish and dimensions before placing a bulk order.
Frequently Asked Questions
Q: How do I confirm if these pre-1982 smooth handlebars fit my specific switch housing style?
A: These handlebars are smooth the entire length, specifically designed to accept 1972/1981 style switch housings. If your setup requires dimpled bars for 1982 or later housings, these will not fit. Always verify your housing style before ordering.
Q: What are the exact width, rise, and pullback dimensions for this Z style bar?
A: The Z style handlebars measure 34 1/4″ in overall width, feature a 4″ rise, and have a 4 1/2″ pullback. The center width is 8″, which determines the clamping area for your risers.
Q: Can I order a single set of handlebars for a custom build without a minimum order quantity?
A: Yes, we support a minimum order of one piece. You can order a single set of these chrome plated handlebars for a custom build or restoration project without meeting bulk quantity requirements.
Q: Are these handlebars compatible with models that have handlebar-mounted air reservoirs?
A: No, these handlebars are not designed for models that have air forks with a handlebar type air reservoir. The reservoir mounting hardware will interfere with the handlebar clamps and riser setup.
