Aftermarket Replacement Top Crown Nut Set for Springer Front Ends
Fitment Confirmed Before Quotation — Every top crown nut for springer front ends is verified against your specific stem dimensions and platform requirements before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Top Crown Nut Set |
| Thread Pitch | 1″-24 |
| Threaded Depth | .700″ |
| Application | Springer Front Ends, Custom Stems |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Springer Front Ends, Custom Stems | Confirm with model and year | For custom stems requiring a nut of the same pitch |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Thread Depth Matters More Than Pitch Alone
A matching thread pitch means nothing if the nut bottoms out before clamping the triple tree.
Listing a top crown nut for springer front ends with only the thread pitch visible is a common trap in the aftermarket. Buyers often see a 1″-24 pitch and assume it will seat correctly, ignoring the threaded depth requirement. When the stem threading does not match the required .700″ engagement, the steering assembly remains loose even after tightening. This mismatch forces the build to halt while sourcing the correct hardware, wasting shop time and delaying the project [NEED_CITE: factory service manual specifications by model year for steering stem engagement].
Verifying Stem Dimensions Before Ordering
Securing the correct top crown nut for springer front ends requires measuring both the outer diameter of the stem threads and the total threaded length. A 1″-24 pitch is standard for many custom and early setups, but the .700″ threaded depth is the critical variable that dictates whether the nut will pull the bearings into proper preload. If your custom stem has a shorter thread run, the nut will bottom out; if it is longer, you risk cross-threading or stripping the engagement area. Always confirm these exact measurements against your existing fork assembly before finalizing the order.

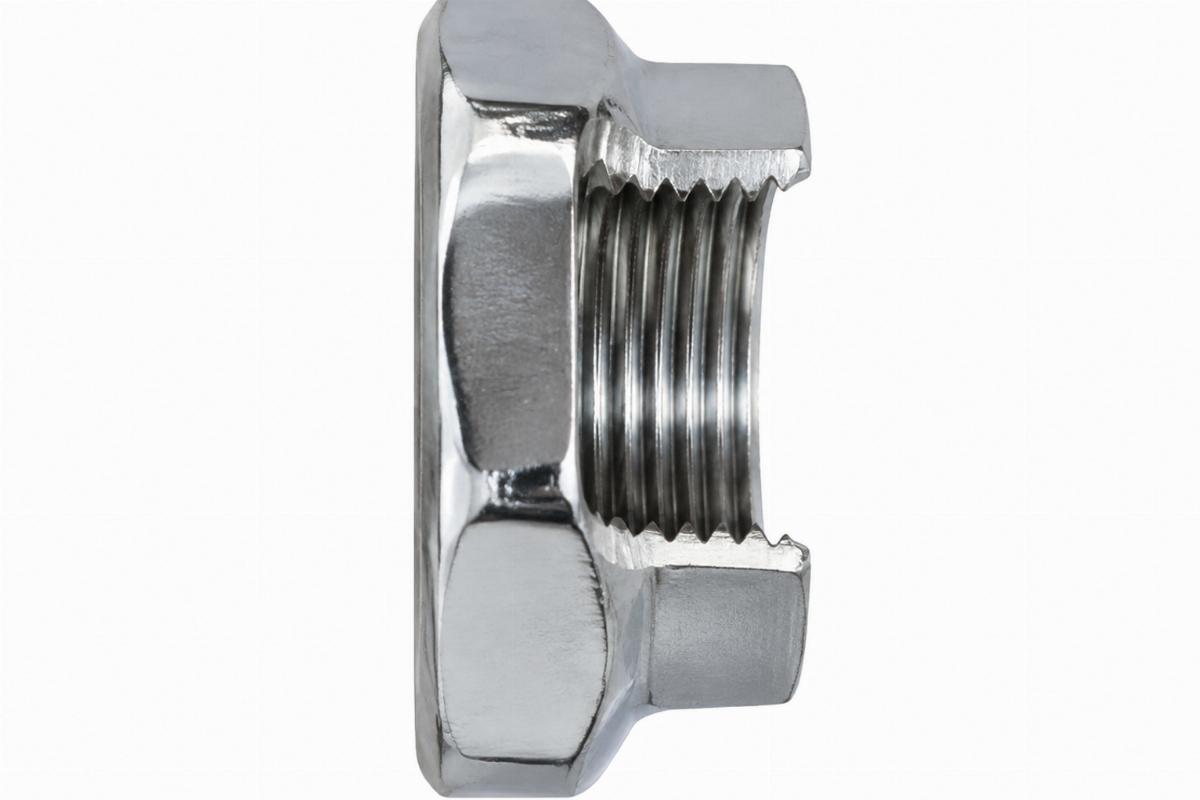

The Risk of Unspecified Nut Profiles
Different frame generations and custom builds utilize varying top nut profiles to accommodate specific triple tree thicknesses. A generic top crown nut for springer front ends might thread onto the stem but fail to provide the necessary bearing surface clearance. This discrepancy is especially common when mixing pre-1984 early springer components with later custom triple trees. Overlooking this profile difference results in a steering assembly that binds or feels loose, requiring a complete teardown to identify the hardware fault [NEED_CITE: steering head bearing clearance variations across custom springer builds].
Hidden Costs of Incorrect Hardware Selection
Ordering a top crown nut for springer front ends based solely on a visual match often leads to hidden shop costs. When a nut bottoms out due to an incorrect .700″ threaded depth, the steering stem cannot be properly preloaded, leading to dangerous handling characteristics and accelerated neck bearing wear. Furthermore, if the hardware is sourced from a supplier that does not verify fitment, the entire front end may need to be disassembled again to source the correct replacement. These repeated teardowns consume labor hours and delay the customer’s build timeline significantly.
Sourcing Hardware With Build Certainty
We verify the 1″-24 thread pitch and .700″ threaded depth of every top crown nut for springer front ends against your provided measurements before quotation. Our catalogue consolidates early springer parts and custom stem hardware, ensuring you can source the exact profile needed for your specific triple tree setup. We support single-piece orders, allowing repair shops and custom builders to purchase the exact hardware required for a one-off build without meeting high minimums. Cross-reference sheets are provided to confirm compatibility with your existing assembly.
Documentation Provided
- Fitment sheet stating applicable platforms and confirmed year ranges
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions including 1″-24 pitch and .700″ depth verification
- Quality inspection record confirming thread integrity
- Packing photographs showing the exact nut profile received
Receiving And Pre-Installation Checks
- Verify the 1″-24 thread pitch matches your existing fork stem exactly
- Measure the stem to confirm the .700″ threaded depth is fully engaged
- Inspect the nut profile to ensure it clears your specific triple tree
- Check threads for any shipping damage before attempting installation
- Have a qualified technician verify steering head bearing preload during assembly
Send Your Measurements For Verification
Provide your model, year, and a photograph of the existing stem to confirm the top crown nut for springer front ends will seat correctly. Include the measured thread pitch and total threaded length if the original manual is unavailable. We will verify the 1″-24 pitch and .700″ depth against your specific custom stem or springer assembly before quoting.
Frequently Asked Questions

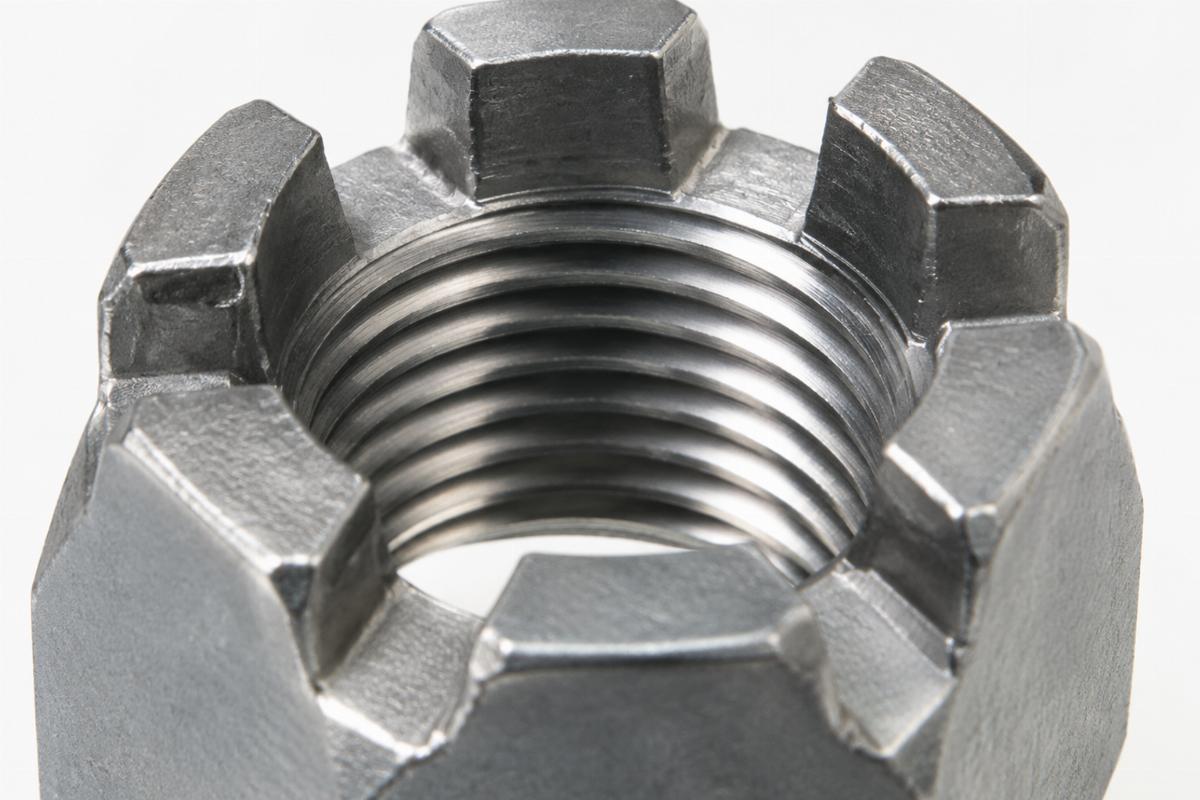

Q: How do I confirm the 1″-24 thread pitch fits my specific Springer front end?
A: Measure the outer diameter of your existing fork stem threads and count the threads per inch. Compare these physical measurements to the 1″-24 specification. If your stem uses a different pitch, this nut will not thread on. Always verify the physical stem dimensions rather than relying solely on the model name.
Q: What happens if my stem threaded depth is shorter than .700″?
A: If the stem threading is shorter than the required .700″ depth, the nut will bottom out on the unthreaded portion of the stem before clamping the triple tree. This prevents proper bearing preload, resulting in a loose steering assembly. You must confirm your stem has at least .700″ of usable thread engagement.
Q: Can I order a single top crown nut set for a one-off custom build?
A: Yes, we support single-piece orders for custom builds and repair shops. You do not need to meet a high minimum order quantity to purchase this hardware. We verify the fitment against your specific measurements before dispatching the single set.
Q: Do you provide a fitment sheet to verify compatibility with my platform?
A: Yes, a fitment sheet stating the applicable platforms and confirmed year ranges is provided before quotation. We also supply a cross-reference sheet with OEM numbers marked reference only. This documentation ensures the 1″-24 pitch and .700″ depth match your specific build requirements.
