Aftermarket Replacement Springer Front End for Yamaha XS650
Fitment verified by platform and year — Every springer front end for Yamaha XS650 is checked against the specific wheel pattern and frame geometry before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Front End |
| Rear Legs | One piece forged, no butt welds |
| Front Legs Diameter | 1″ |
| Rocker Bushings | Bronze |
| Welding | TIG-welded |
| Axle | 3/4″ |
| Axle and Steering Stem Finish | Zinc-plated |

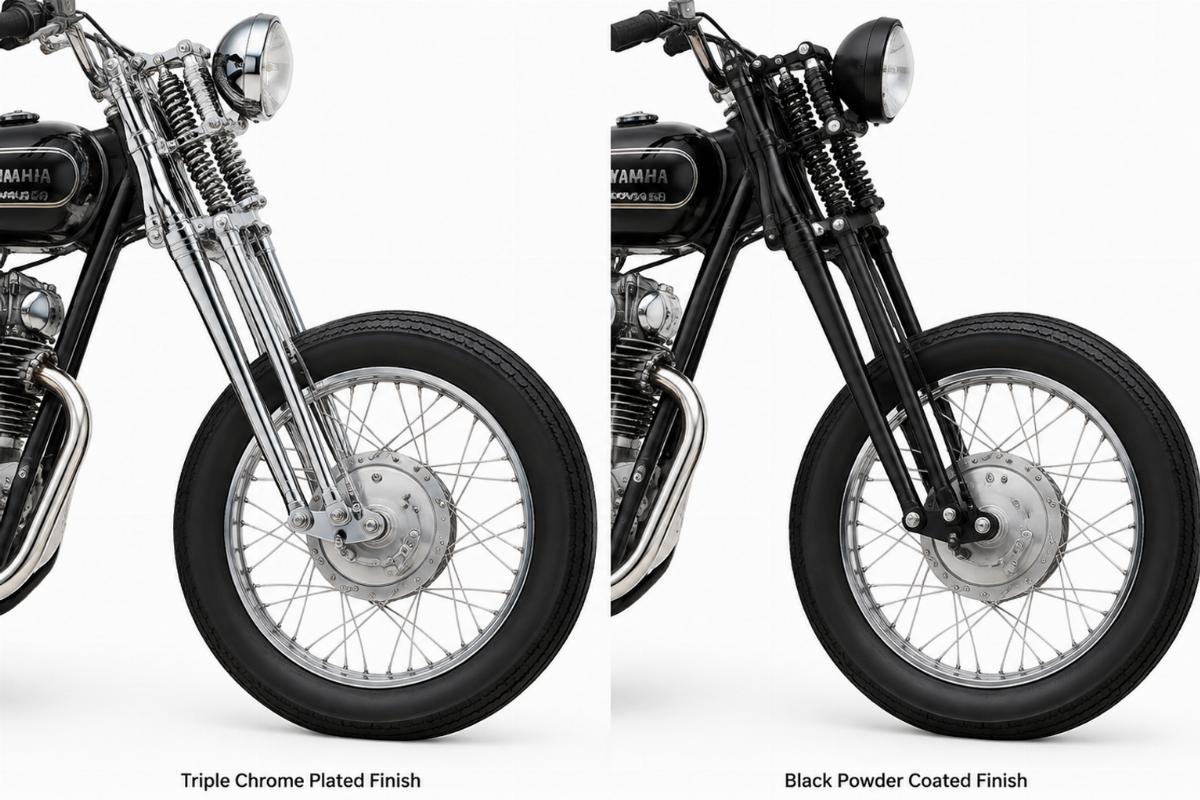

| Finish Options | Available in triple chrome plated or black powder coated |
| Length Options | Offered in stock length or -2″ under |
| Wheel Compatibility | Fits 1984-1999 Softail Wide Glide wheels (includes axle, spacers, nuts) or 2000-2007 Sportster wheels (requires narrow glide wheel spacer kit) |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Yamaha XS650 (XS and TX650) | Confirm with model and year | Requires compatible Harley-Davidson pattern wheels, tires, brakes, and sheet metal; stock XS650 wheel and brake components cannot be reused. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Wheel Pattern Dictates Your Springer Front End for Yamaha XS650 Build
Stock XS650 front-end components will not bolt onto this aftermarket springer.
I still remember a Yamaha XS650 project where the builder assumed the stock front wheel and brake components would fit a new springer. They didn’t realize the axle spacing required 1984-1999 Softail Wide Glide wheels or 2000-2007 Sportster wheels paired with a narrow glide spacer kit. The stock parts simply would not fit, leaving the bike torn apart on the lift until the correct Harley-Davidson pattern replacements were sourced. When ordering a springer front end for Yamaha XS650, the wheel pattern decides the entire brake and fender mounting strategy [NEED_CITE: factory service manual specifications by model year for wheel hub dimensions].
Deciding Between Wide Glide and Sportster Wheel Patterns
Choosing the right wheel pattern for your springer front end for Yamaha XS650 changes the hardware included in the kit. If you select the 1984-1999 Softail Wide Glide pattern, the kit includes the necessary axle, spacers, and nuts to mount those specific wheels directly. Alternatively, if you prefer the 2000-2007 Sportster wheels, you must source a separate narrow glide wheel spacer kit and utilize the dedicated fender mounts. Verifying your wheel choice before ordering prevents missing hardware and ensures the axle spacing aligns with the 3/4″ axle specification.
How Length Options Alter Frame Geometry
The overall length of the fork directly impacts the ride height and steering geometry of the custom bike. This springer front end for Yamaha XS650 is offered in stock length or -2″ under. Selecting the -2″ under option lowers the front end, which steepens the steering head angle and reduces trail. Builders must calculate how this change affects the handling characteristics of the XS and TX650 frame before finalizing the length, as altering these dimensions changes how the motorcycle tracks through corners and under braking [NEED_CITE: chassis geometry changes associated with fork length variations].
The Hidden Cost of Ignoring Axle and Spacer Specifications
Assuming a universal fitment for custom springer forks often leads to the motorcycle sitting on the lift for weeks. If the axle spacing does not match the wheel hub width, the wheel will bind or the brake caliper will not align with the rotor. Furthermore, ordering the wrong wheel pattern means the included fender mounts will not line up with the tire curvature. Sourcing a springer front end for Yamaha XS650 without confirming whether the build uses Wide Glide or Sportster wheels results in ordering the incorrect spacer kits, forcing the builder to halt assembly and wait for replacement hardware to arrive [NEED_CITE: common fitment errors in custom front end installations].
Sourcing Front-End Depth From a Single Account
We manufacture the springer assemblies and fork parts in our own facility, ensuring the TIG-welded construction and one piece forged rear legs meet our internal standards. Every springer front end for Yamaha XS650 is checked against the platform family and year range before quotation to guarantee the wheel pattern matches your build. We offer chrome and black finish options on this front-end line, allowing you to match the rest of the chassis. You can place a minimum order from one piece, which is ideal for a shop building a single custom XS650 rather than waiting to meet a high volume threshold.
Documentation and Fitment Records
- Fitment sheet listing the XS and TX650 platforms and confirming wheel pattern compatibility
- Cross-reference sheet detailing the 1984-1999 Wide Glide and 2000-2007 Sportster wheel specs
- Key dimensions including the 1″ front legs diameter and 3/4″ axle size
- Finish specification confirming triple chrome plated or black powder coated options

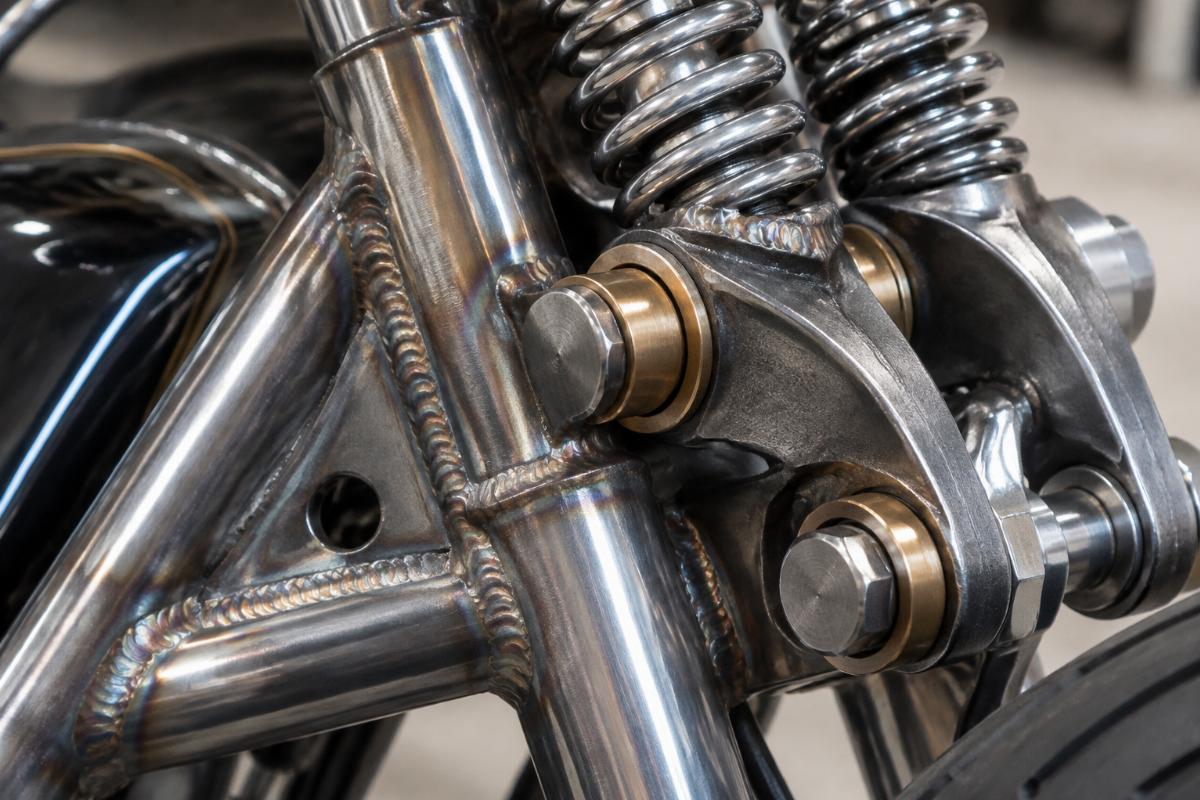

- Quality inspection record verifying the TIG-welded joints and bronze rocker bushings
- Packing photographs showing the included axle, spacers, and nuts for the selected wheel pattern
Pre-Installation Checks for the Workshop
- Verify the kit includes the correct axle, spacers, and nuts for either the Wide Glide or Sportster wheel pattern.
- Measure the 1″ front legs diameter and 3/4″ axle to confirm they match your bearing and hub specifications.
- Inspect the zinc-plated axle and steering stem for any shipping damage before pressing bearings.
- Check the triple chrome plated or black powder coated finish for consistency across the forged rear legs.
- Ensure the bronze rocker bushings are properly seated and lubricated before assembling the rocker arms.
- Store the springer front end for Yamaha XS650 in a dry environment to protect the finish and bushings before installation.
Requesting a Fitment Check for Your Build
Send your model and year, along with the specific wheel pattern you intend to use, so we can verify the axle spacing and spacer requirements. Provide photographs or measurements of your current frame neck if you are unsure about the steering stem fitment. Let us know whether you require the stock length or -2″ under option, and if you need a sample to confirm the finish and hardware before committing to the final order.
