Aftermarket Replacement Springer Fork Kit 22″ for Custom

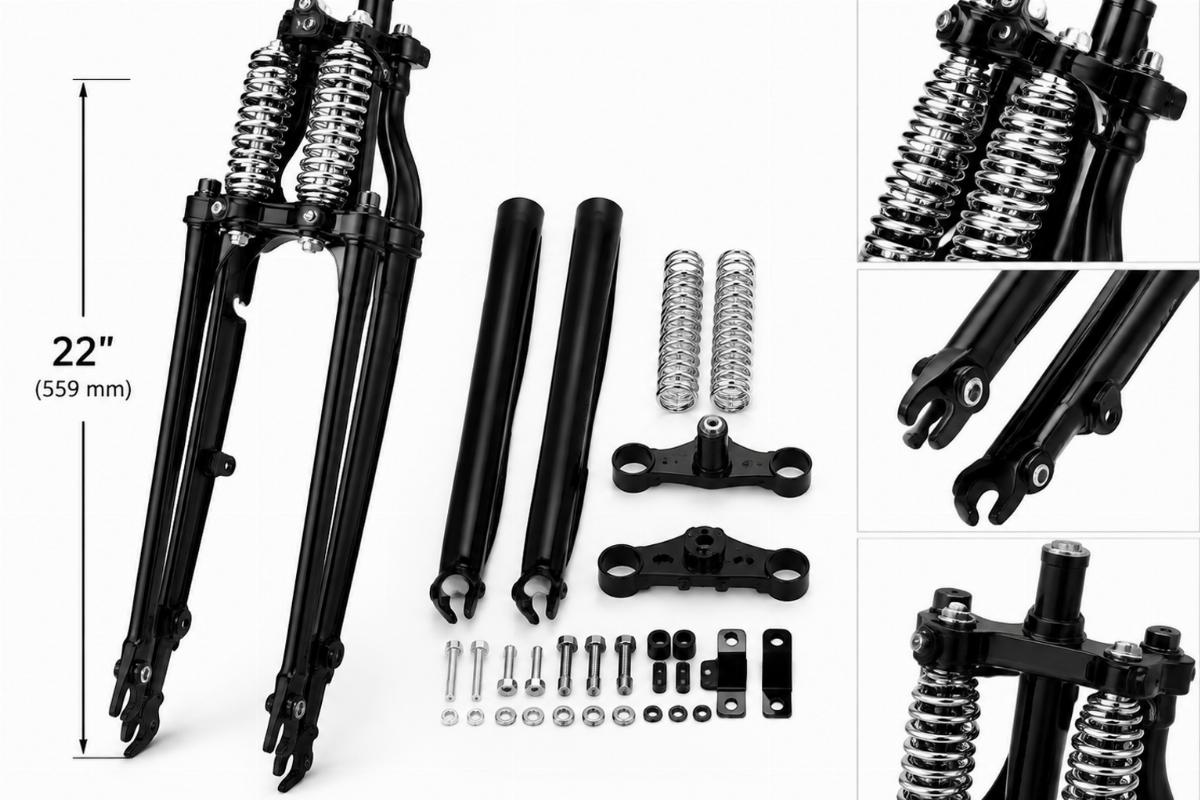

Consistent Finish Options — Every 22″ springer fork kit for custom motorcycle builds is supplied with matched black legs and chrome springs to ensure visual uniformity across the front end.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Kit |
| Overall Length | 22″ |
| Finish | Black with chrome springs |
| Top Triple Tree | Machined chrome design without ears |
| Legs Thread | 1/2″ x 20 |
| Axle Assembly | 3/4″ (included) |
| Rocker Offset | Right rocker is NOT offset |
| Taper Bearing Kit | 1″ (available separately) |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom Frames | Confirm with model and year | For custom brake and spool wheel installation |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Verifying Axle Spacing And Rocker Alignment
Correct axle spacing and rocker alignment prevent front-end teardowns.
When sourcing a 22″ springer fork kit for custom motorcycle projects, assuming standard rocker geometry is a common procurement error. I once oversaw a custom build where an over-stock springer arrived with an offset right rocker, completely ruining the alignment for the custom brake and spool wheel installation. The entire front end had to be torn down to swap components. Always verify the rocker offset and 3/4-inch axle spacing before clearing any springer fork kit for your build [NEED_CITE: frame geometry requirements for custom spool wheel setups].
Checking Triple Tree And Rocker Geometry
Fitment certainty starts at the top triple tree. This 22″ springer fork kit for custom motorcycle applications features a machined chrome design without ears, which dictates how your handlebars and risers will mount. More importantly, the right rocker is explicitly NOT offset. This specific geometry is required for certain custom brake and spool wheel installations. If your build relies on an offset rocker to clear a specific caliper mount, this kit will not align correctly without modification.
Confirming Wheel Centering And Thread Specs

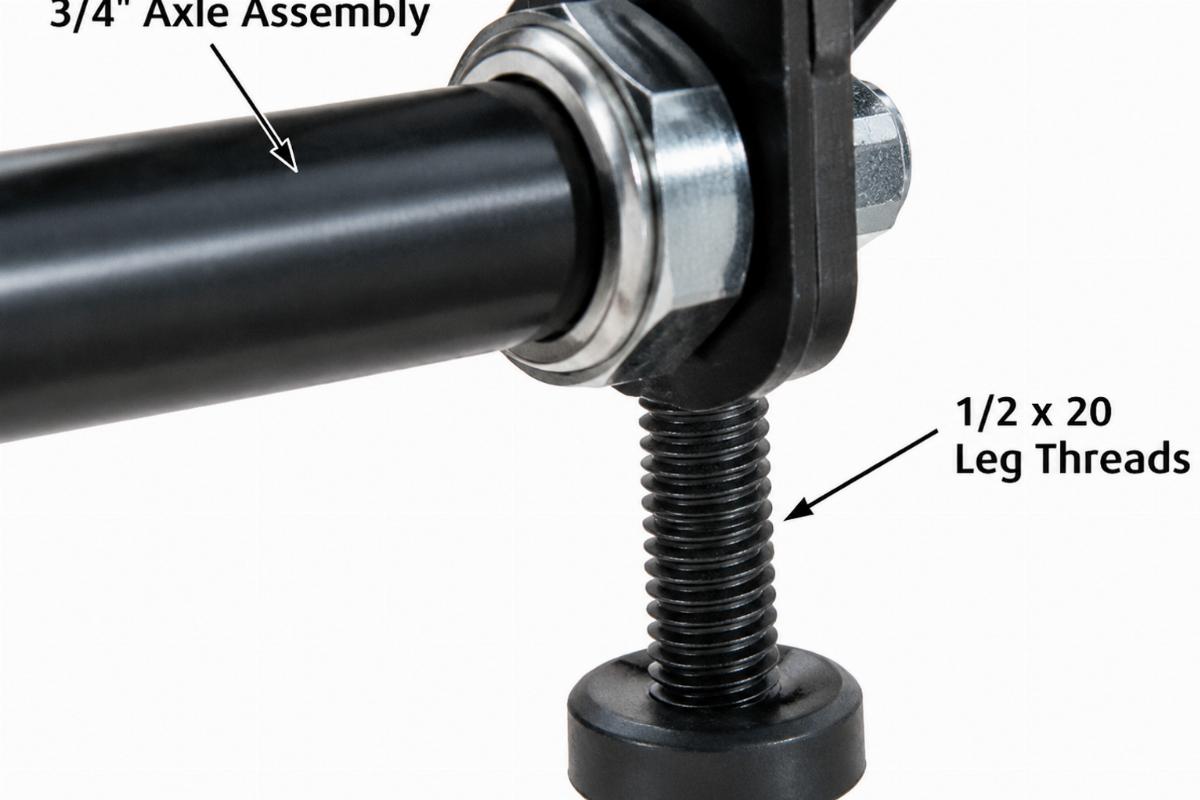

Proper wheel centering relies on matching the leg threads and axle size. The legs on this 22″ springer fork kit for custom motorcycle frames are threaded at 1/2″ x 20. You must use spacers for the included 3/4″ axle assembly as required to center the wheel perfectly between the sliders. Post risers should be used with a stud to the top of the rear fork legs to maintain the correct steering stem height [NEED_CITE: steering head cup dimensions across custom frame families].
The Hidden Cost Of Incorrect Rocker Offsets
Ordering a springer fork without confirming the rocker offset leads to severe assembly delays. When an offset rocker is installed on a frame expecting a straight rocker, the wheel sits at an angle. This misalignment binds the custom brake caliper and prevents the spool wheel from spinning freely. The bike ends up stuck on the lift while the shop waits for replacement rockers, wasting labor hours and delaying the final delivery to the customer [NEED_CITE: assembly delays caused by mismatched front-end hardware].
Sourcing Front-End Depth With One-Piece Minimums
We produce complete springer assemblies and multiple over-stock lengths in our own facility, allowing you to order a single 22″ springer fork kit for custom motorcycle builds without facing high minimum order quantities. Our front-end depth ensures you get the exact black and chrome finish options you need for your specific aesthetic. Every kit is checked against your stated dimensions before quotation to guarantee the right rocker and axle spacing for your project.
Documentation Provided With Your Shipment
- Fitment sheet stating applicable custom frame geometries and year ranges.
- Key dimensions including 22″ fork length, 1/2″ x 20 thread, and 3/4″ axle size.
- Finish specification detailing the black legs and chrome springs.
- Cross-reference sheet with OEM numbers marked reference only.
- Quality inspection record verifying the right rocker is not offset.
Receiving And Pre-Installation Checks
- Verify the included 3/4″ axle assembly matches your custom wheel hub width.
- Check that the black finish on the legs matches the chrome springs visually.
- Measure the 22″ overall length against your frame’s springer mounting points.
- Confirm the 1/2″ x 20 leg threads align with your chosen axle spacers.
- Inspect the machined chrome top triple tree without ears for shipping damage.
- Store the 1″ taper bearing kit in a dry environment before installation.
Requesting A Fitment Check
Send your custom frame model and year, along with a photograph or measurements of your current front end, so we can verify if this 22″ springer fork kit for custom motorcycle builds matches your geometry. Let us know your required finish and if you need a sample for fitment confirmation before placing a bulk order for your shop.
Frequently Asked Questions
Q: How do I confirm if this 22″ springer fork kit fits my custom frame geometry?
A: You must verify the 22″ overall length against your frame’s springer mounting points. Additionally, check that the 3/4″ axle assembly and 1/2″ x 20 leg threads match your custom wheel and brake setup. We recommend sending your frame measurements for a fitment check before ordering.
Q: What are the key dimensions I need to measure for a custom springer fork installation?
A: Measure the overall fork length, the distance between the triple tree mounting points, and the width of your custom wheel hub. You also need to confirm the axle diameter and the thread pitch on the fork legs to ensure the included hardware fits correctly.
Q: Does the kit include the axle assembly and what size is it?
A: Yes, this 22″ springer fork kit for custom motorcycle builds includes a 3/4″ axle assembly. You will need to use additional spacers for the axle as required to center your specific wheel between the fork sliders during installation.
Q: Why is the right rocker not offset and how does it affect wheel installation?
A: The right rocker is not offset because this kit is specifically designed for custom brake and spool wheel installations that require straight alignment. If your build requires an offset rocker to clear a specific caliper, this kit will not align correctly without modification.
Q: Can I order a single springer fork kit for a custom build without a minimum order quantity?
A: Yes, we support a one-piece minimum order. You can purchase a single 22″ springer fork kit for custom motorcycle projects, making it ideal for independent repair shops or custom builders working on a single bike without needing to meet bulk volume requirements.
