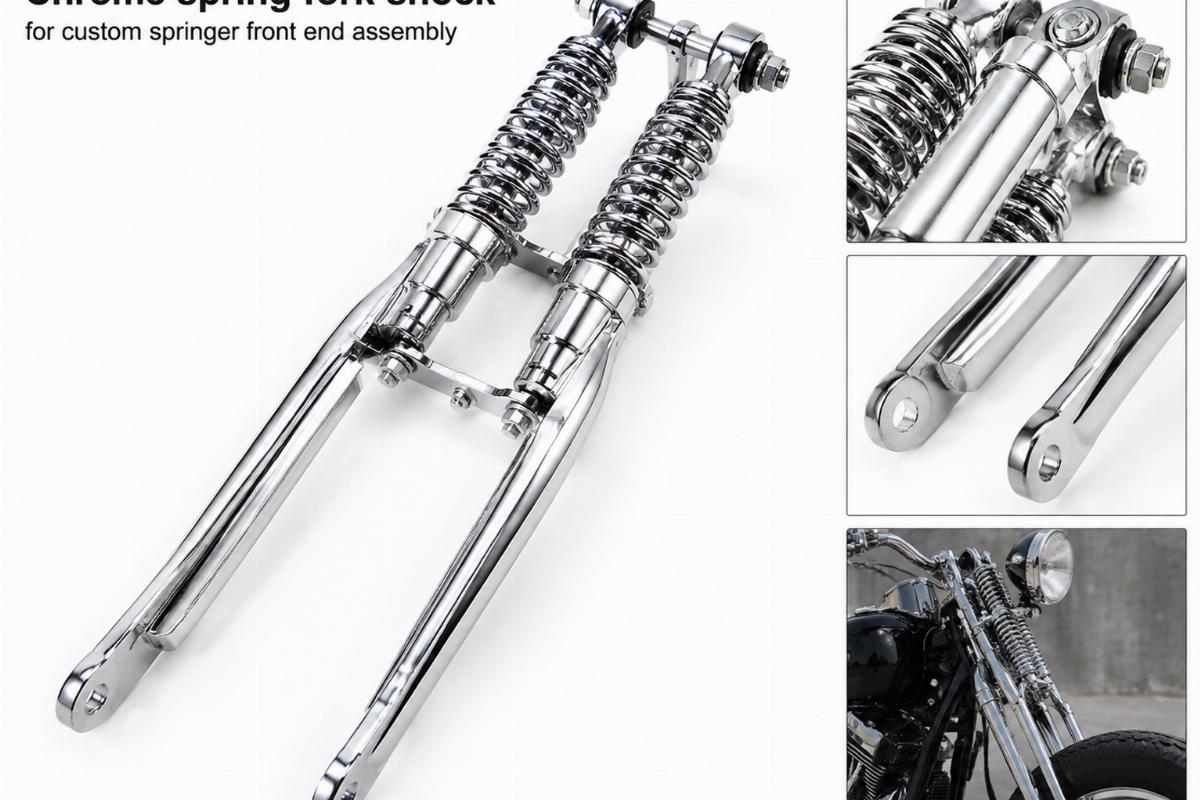

Aftermarket Replacement Spring Fork Shock for Custom Springer
Consistent Chrome Finish — Batch-to-batch color matching ensures your front end looks uniform when fitted side by side.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Spring Fork Shock |
| Finish | Chrome |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom Springer Builds | Confirm with model and year | Verify overall length and mounting dimensions against your specific fork assembly. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Verifying Spring Rod Length and Stroke for Custom Geometry
Always measure the exact spring rod length and stroke against your specific frame before sending out any front-end hardware.
Running the Latin America route, I once shipped spring fork shocks for a pre-1984 Springer build. The buyer just asked for chrome springs without stating the overall length over stock. The springs arrived, but they were too long for the fork legs. The fork bottomed out completely before the bumper could even compress, ruining the ride geometry [NEED_CITE: frame geometry and suspension travel limits for custom springer setups]. That mistake taught me to always verify the exact dimensions to prevent the bike from becoming unrideable.
Checking Mounting Dimensions and Clevis Width
When sourcing a spring fork shock for custom springer projects, the overall length and mounting dimensions dictate how the front end sits. You must confirm the exact mounting hole spacing and clevis width to ensure proper fitment on your front end. A mismatch here alters the ride height and steering geometry, which is why we check these dimensions against your specific custom build before quotation.
Evaluating Chrome Finish Consistency
Chrome finish quality can vary between batches, becoming visible once parts are fitted side by side on your custom build. We apply the chrome finish to maintain a consistent look across custom springer front ends. This attention to surface detail ensures that the shock matches the rest of your front-end hardware without noticeable color shifts under different lighting conditions [NEED_CITE: plating thickness and visual consistency standards for aftermarket chrome].
Understanding Shock Dimensions and Frame Impact
The overall length of the shock directly affects the front end’s static ride height and how the fork legs interact with the frame stops. If the shock is too long, it prevents the fork from utilizing its intended travel, leading to a harsh ride and potential damage to the fork internals. Conversely, a shock that is too short will cause the front end to sag, negatively impacting the steering head angle and trail.
The Hidden Cost of Incorrect Front-End Hardware
Sending out a spring fork shock for custom springer applications without verifying the stroke length leads to immediate functional failures. When the shock is too long, the fork bottoms out before the bumper can compress, transferring harsh impacts directly to the steering neck and frame. This not only ruins the ride geometry but can also bend the fork legs or crack the mounting brackets, turning a simple replacement into a major frame repair [NEED_CITE: structural stress points on custom springer fork legs during bottom-out events].
Sourcing Front-End Hardware with Certainty
We produce front-end and chassis parts in our own facility, ensuring direct control over the manufacturing of these critical components. Our catalogue offers front-end depth, keeping complete springer assemblies and individual replacement parts like this shock in one place. We provide chrome and black finish options on main front-end lines to match your build’s aesthetic. Every spring fork shock for custom springer build is cross-referenced against Harley-Davidson OEM numbers (reference only) to confirm compatibility. We support a minimum order from one piece, allowing custom builders to source exactly what they need for a single-bike project without bulk commitments.
Documentation and Quality Records
- Fitment sheet stating applicable platforms and year ranges for the spring fork shock.
- Cross-reference sheet with OEM numbers marked reference only for identification.
- Key dimensions including overall length and mounting hole spacing where relevant.
- Finish specification detailing the chrome plating process and visual standards.
- Quality inspection record verifying the stroke length and clevis width before dispatch.

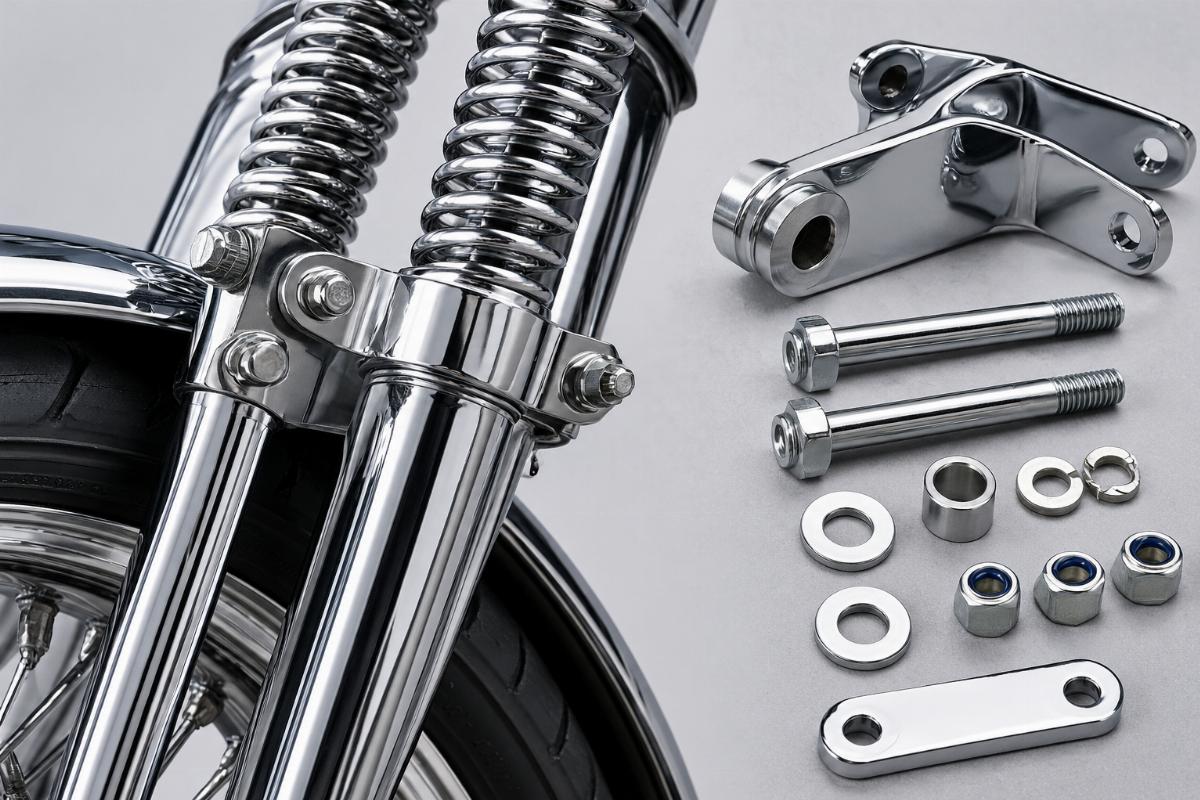

- Packing photographs showing the chrome finish and included mounting hardware.
Receiving and Pre-Installation Checks
- Verify the overall length and mounting dimensions of the chrome shock against your specific fork assembly.
- Confirm the exact mounting hole spacing and clevis width to ensure proper fitment on your front end.
- Inspect the chrome finish for any shipping damage or plating defects before beginning assembly.
- Ensure the shock is stored in a dry environment to prevent surface corrosion prior to installation.
- Have a qualified technician verify the stroke length and frame clearance before final mounting.
Requesting a Fitment Check
Send your model and year for a fitment check to ensure this spring fork shock for custom springer matches your geometry. Provide the overall length, mounting hole spacing, and clevis width of your current setup or frame mounts. Let us know if you need a sample for fitment confirmation before placing a bulk order for your shop.
Frequently Asked Questions
Q: How do I measure the overall length and mounting dimensions for a custom springer shock?
A: Measure the distance between the center of the upper and lower mounting holes with the shock fully extended and fully compressed. Also, measure the width of the clevis at both mounting points to ensure it matches the fork tabs. These dimensions determine if the spring fork shock for custom springer will fit your specific frame geometry.
Q: What are the differences in shock mounting across various custom springer fork kits?
A: Mounting dimensions vary based on the fork leg design and frame neck angle. Some kits use wider clevises or different hole spacing to accommodate longer travel or specific rake angles. Always verify the exact mounting hole spacing and clevis width of your specific kit rather than relying on generic measurements.
Q: Can I order a single spring fork shock for a one-off custom build?
A: Yes, we support a minimum order from one piece. This allows custom builders and restoration specialists to source exact replacement hardware for a single-bike project without being forced into bulk quantities. We verify the fitment against your specific dimensions before dispatching the single unit.
Q: How do you ensure finish consistency between chrome batches for side-by-side fitment?
A: We apply strict finish specifications and maintain quality inspection records for every batch. This ensures that the chrome finish on your new shock matches the rest of your front-end hardware, preventing visible color shifts or plating differences when the parts are fitted side by side on the bike.
Q: Can I request a sample to confirm fitment before placing a bulk order?
A: Yes, sample supply is available for fitment confirmation before placing bulk orders. This allows you to physically verify the overall length, mounting dimensions, and chrome finish quality against your custom springer assembly in your shop before committing to a larger quantity.
