Aftermarket Replacement Narrow Springer Fork Assembly 2″ Over Stock Chrome
Consistent Finish Batches — Chrome and black finish options on main front-end lines are inspected to prevent visible mismatches when fitted side by side on your custom build.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Assembly |
| Finish | Chrome |
| Length | 2″ over stock |
| Axle Hole | 3/4″ |
| Top Tree | without ears |
| Leg Thread | 1/2″-20″ |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Not stated in source | Confirm with model and year | Rockers are the same on each side, not offset on right side |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Clarifying Geometry for a Narrow Springer Fork Assembly
Exact over-stock measurements and rocker symmetry prevent geometry guesswork.
Springer forks offered over stock without clear overall length or geometry details make it hard to judge ride height. This narrow springer fork assembly provides exact over-stock measurements and rocker specs to clarify your build. When a front end changes the visual stance, the steering geometry shifts accordingly. You need to know exactly how much the length over stock alters the rake before committing to the build [NEED_CITE: frame geometry changes relative to fork length over stock].
Verifying Rocker Symmetry Before Assembly
A narrow springer fork assembly requires precise alignment to keep the front wheel tracking straight. On this unit, the rockers are the same on each side and not offset on the right side. I have seen builds stall because a supplier sent standard non-offset rockers for a frame that required an offset, leaving the axle completely crooked. Always measure and verify if the rockers are offset or identical on both sides before confirming fitment for your specific axle and brake setup [NEED_CITE: rocker offset variations across custom springer applications].
Checking Top Tree Configuration for Handlebar Mounting

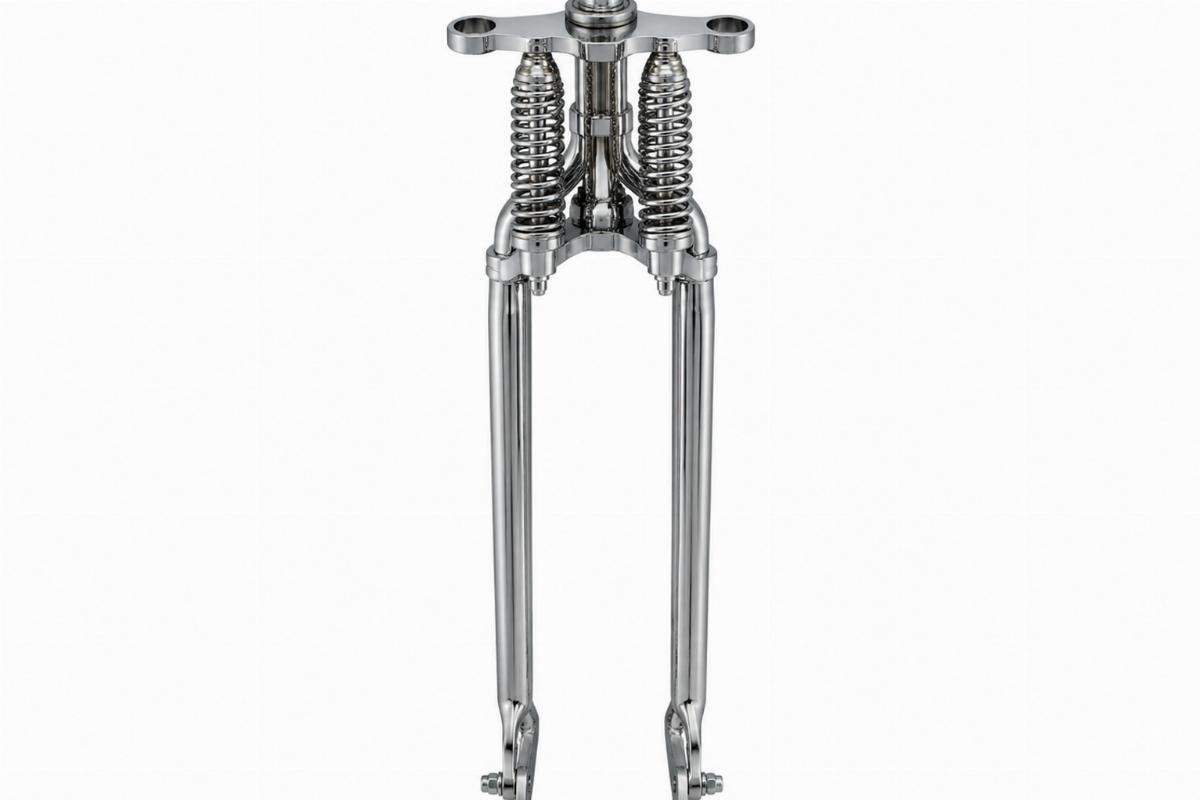

The top tree on this narrow springer fork assembly comes without ears. This specific configuration dictates how your handlebar mounting setup will interface with the front end. If your custom build relies on risers that bolt directly to the top tree ears, this unit will require an alternative mounting solution. Verify the top tree ear configuration to confirm compatibility with your handlebar mounting setup and ensure the legs are drilled and tapped to mount risers correctly.
Understanding Key Dimensions and Thread Specs

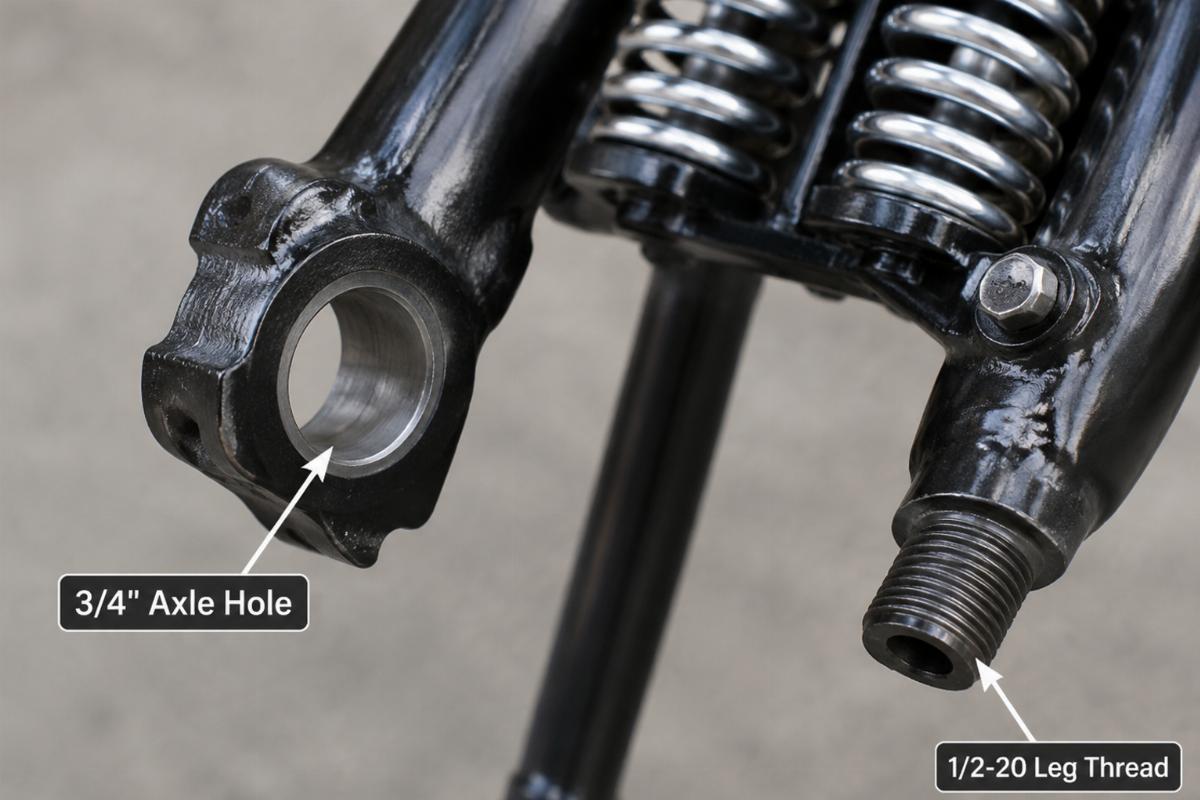

The 2″ over stock length directly influences your ride height and steering geometry, changing the rake and trail compared to a stock setup. The 3/4″ axle hole on the rockers must match your axle hardware to ensure the wheel sits securely without binding. Additionally, the 1/2″-20″ leg thread is critical if you plan to thread components directly into the legs. Confirming these dimensions against your frame requirements prevents structural misalignment during assembly [NEED_CITE: thread pitch and axle diameter standards for springer front ends].
The Hidden Cost of Incorrect Front End Mapping
Ordering a front end without verifying the rocker offset or top tree style often leads to severe delays. A shop once ordered a springer assembly without mentioning the rocker offset, resulting in a crooked axle that halted the entire build. When parts arrive with mismatched dimensions or inconsistent chrome batches, the bike sits on the lift while you wait for replacements. Superseded part numbers and copied fitment tables only make this worse, sending the wrong components to your door and forcing costly rework [NEED_CITE: common fitment errors in aftermarket springer front ends].
Sourcing Front Ends with Fitment Certainty
We confirm fitment against your platform family and model year range before providing a quotation for this narrow springer fork assembly. Our own production on springer front ends ensures that the 2″ over stock length and chrome finish meet strict internal specifications. We offer a minimum order from one piece, allowing custom builders to source a single assembly without hitting bulk barriers. Every unit is backed by a unified warranty, and we provide cross-reference sheets marked reference only to help you verify compatibility.
Documentation Provided
- Fitment sheet listing applicable platforms and year ranges for this narrow springer fork assembly
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions including 2″ over stock length and 3/4″ axle hole size
- Finish specification detailing the chrome plating process
- Quality inspection record verifying rocker symmetry and leg thread
- Packing photographs showing the top tree without ears
Receiving and Inspecting Your Shipment
- Verify the narrow springer fork assembly arrives with the 2″ over stock length as specified
- Check that the rockers are identical on each side and not offset on the right side
- Inspect the chrome finish for consistency and ensure the top tree is without ears
- Confirm the leg thread is 1/2″-20″ before attempting to mount risers
- Have a qualified technician inspect all structural components prior to installation
- Store the assembly in a dry environment to protect the chrome finish before mounting
Requesting a Fitment Check
Send your model and year for a fitment check to ensure this narrow springer fork assembly matches your build requirements. Provide your old part photographs or key measurements, including rocker offset and top tree style, so we can verify compatibility. Let us know if you need a sample for fitment confirmation before placing a bulk order for your shop.
Frequently Asked Questions
Q: How to confirm if this 2″ over stock springer fork fits my specific model and year?
A: Send your model and year for a fitment check. We verify the platform and year range before quotation. We also check if your frame requires offset rockers, as this unit features identical rockers on each side. Providing a photograph or measurements of your current setup helps us confirm compatibility accurately.
Q: What are the key dimensions to measure when replacing a custom springer front end?
A: Measure the fork length over stock to ensure it matches your desired ride height. Check the axle hole diameter, which is 3/4″ on this unit. Verify the top tree configuration, as this model is without ears. Finally, confirm the leg thread pitch of 1/2″-20″ matches your riser or mounting hardware.
Q: Does the kit include the top tree and rockers, and what are their specific specs?
A: Yes, the assembly includes the top tree and rockers. The top tree is manufactured without ears, and the rockers feature a 3/4″ axle hole. Crucially, the rockers are the same on each side and not offset on the right side. Always verify this symmetry against your specific axle and brake mounting requirements.
Q: Can I order a single springer fork assembly for a custom build?
A: Yes, we support a minimum order from one piece. This allows custom builders and repair shops to source a single narrow springer fork assembly for a specific project without meeting high bulk thresholds. We also offer sample supply for fitment confirmation before you commit to larger quantities for your inventory.
