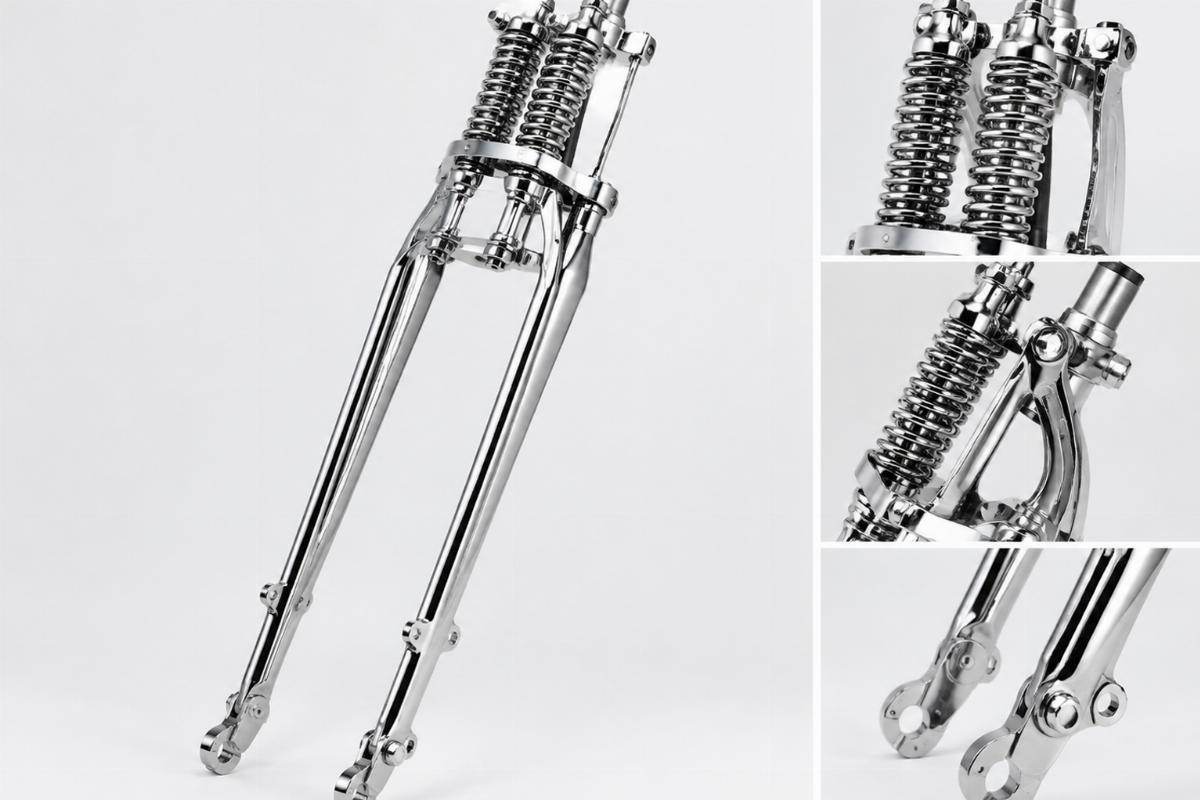

Aftermarket Replacement Narrow Springer Fork Assembly 2″ Over Stock Chrome
Single Piece Order — Minimum order from one piece for this narrow springer fork assembly for custom motorcycle, allowing shops to test fitment before bulk purchasing.
Product Specification
Part Type | Custom Springer Fork Assembly
| Parameter | Value |
|---|---|
| Finish | Chrome |
| Length | 2″ over stock |
| Axle Hole | 3/4″ |
| Top Tree | without ears |
| Leg Thread | 1/2″-20″ |
| Rocker Configuration | same on each side, not offset on right side |
| Condition | pre-production sample, cosmetic imperfections only, may show marks from installation test and fitment |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Not stated | Confirm with model and year | D+D narrow style |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Clarifying Geometry for a 2″ Over Stock Narrow Springer Fork Assembly for Custom Motorcycle
Overall length changes ride height and steering geometry, requiring frame neck spacing and steering stem dimension verification.
Springer forks offered over stock often lack clear statements on overall length, making it hard to judge ride height and steering impact before the build begins. When a 2″ over stock unit arrives without verified geometry data, the front end sits higher than expected, altering the rake and trail significantly. Builders then face the costly reality of modifying the frame neck or swapping trees just to correct the stance [NEED_CITE: frame geometry changes caused by over stock fork lengths across custom platforms].

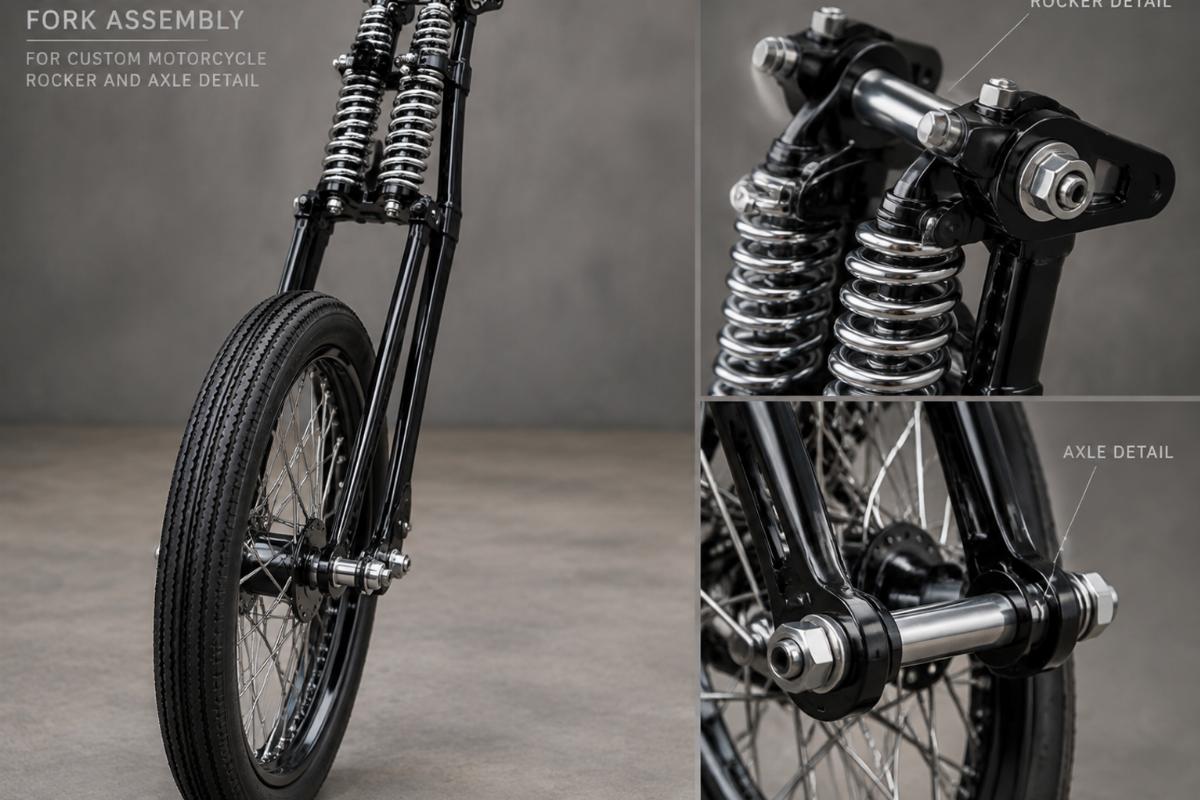

Verifying Rocker Symmetry and Axle Hole Diameter
When evaluating a narrow springer fork assembly for custom motorcycle, the rocker configuration dictates whether the front wheel mounts correctly. This assembly features rockers that are the same on each side and not offset on the right side, paired with a 3/4″ axle hole. I always verify if the rockers are perfectly symmetrical and double-check the axle hole diameter against the specific model year before shipping any assembly. If the frame requires offset rockers or a different axle size, this specific configuration will not mount without altering the leg spacing or axle hardware [NEED_CITE: axle diameter and rocker offset variations across springer front end generations].
Checking Thread Specifications for Riser Mounting
The leg thread specification directly determines which risers and handlebars can be mounted to the front end. With 1/2″-20″ leg threads, this narrow springer fork assembly for custom motorcycle accepts standard riser hardware, but the top tree without ears limits the mounting options for specific clamp styles. Builders must confirm that their chosen risers match the 1/2″-20″ pitch and that the top tree design aligns with their handlebar clamping requirements. Overlooking the top tree design or thread pitch leads to delayed builds and the need to source alternative mounting hardware [NEED_CITE: riser thread pitch and top tree design compatibility for custom front ends].
Interpreting Core Dimensions for Frame Compatibility
The 2″ over stock length and 3/4″ axle hole are critical dimensions that affect how the front end interacts with the frame and wheel. A 2″ increase over stock raises the front end, which changes the steering geometry and requires checking the frame neck spacing to ensure the steering stem clears properly. The 3/4″ axle hole must match the wheel axle diameter exactly; a mismatch means the wheel cannot be secured safely. Furthermore, the D+D narrow style dictates the overall width, which must be verified against the frame’s fork leg spacing to prevent binding or misalignment during steering [NEED_CITE: steering stem and frame neck spacing tolerances for narrow springer applications].
The Hidden Cost of Incorrect Fitment Assumptions
Assuming a springer front end will fit without verifying the rocker configuration and axle hole diameter often leads to the bike sitting on the lift indefinitely. I once saw a build halted because the assembly arrived with offset right-side rockers, but the frame required non-offset rockers with a 3/4″ axle hole on both sides. The shop had to tear down the front end, source new rockers, and realign the legs, wasting days of labor. When fitment is not confirmed against the exact model year and frame specifications, the resulting modifications compromise the structural integrity and alignment of the custom build [NEED_CITE: labor hours lost to front end fitment corrections in custom shops].
Sourcing Verified Front End Components
We produce front-end and chassis parts in our own facility, ensuring direct control over the manufacturing of this narrow springer fork assembly for custom motorcycle. Fitment is confirmed against platform family and model year range before quotation, preventing the mismatch of rocker offsets and axle sizes. We offer chrome and black finish options, allowing builders to match the front end to their specific aesthetic requirements. Cross-reference against Harley-Davidson OEM numbers is provided for identification purposes, marked reference only. Minimum order from one piece allows shops to order a single sample for fitment confirmation before committing to bulk purchases.
Documentation and Fitment Verification
- Fitment sheet stating applicable platforms and year ranges for the D+D narrow style.
- Key dimensions including the 2″ over stock length and 3/4″ axle hole diameter.
- Finish specification detailing the chrome plating process and batch consistency.
- Cross-reference sheet with OEM numbers marked reference only for identification.
- Quality inspection record noting the pre-production sample condition and cosmetic imperfections.
- Packing photographs showing the top tree without ears and leg thread condition.
Pre-Installation Inspection Checklist
- Verify the rockers are the same on each side and not offset on the right side.
- Measure the 3/4″ axle hole to ensure it matches the wheel axle diameter exactly.
- Check the 1/2″-20″ leg threads for excess plating before installing risers.
- Inspect the chrome finish for cosmetic imperfections typical of a pre-production sample.
- Confirm the top tree without ears matches the intended handlebar clamping setup.
- Ensure threaded and bearing holes are clear of excess plating before assembly.
Requesting a Fitment Check
Send your model and year for a fitment check to ensure this narrow springer fork assembly for custom motorcycle matches your frame specifications. Provide the exact frame neck spacing, steering stem dimensions, and axle diameter to verify compatibility with the D+D narrow style and 3/4″ axle hole. Include photographs of your current front end or frame neck if the model year is uncertain. Let us know if you require a single sample unit to test fitment and finish quality before placing a bulk order.
Frequently Asked Questions
Q: How do I confirm my motorcycle model and year fits this narrow springer fork assembly for custom motorcycle?
A: Provide your exact frame neck spacing, steering stem dimensions, and axle diameter. We verify these measurements against the D+D narrow style, 2″ over stock length, and 3/4″ axle hole to ensure the rockers and top tree mount correctly without modification.
Q: What key dimensions should I measure on my frame before ordering this custom springer?
A: Measure the frame neck spacing to ensure clearance for the steering stem, and verify the wheel axle diameter matches the 3/4″ axle hole. Check the distance between the fork legs to confirm compatibility with the D+D narrow style width and overall 2″ over stock length.
Q: Does this kit include the top tree and rockers, and what are their specifications?
A: Yes, the assembly includes a top tree without ears and rockers configured the same on each side, not offset on the right side. The rockers feature a 3/4″ axle hole, and the legs have 1/2″-20″ threads for riser mounting.
Q: Can I order a single sample unit to check fitment and finish quality before bulk purchasing?
A: Yes, we accept a minimum order of one piece. This allows you to receive a pre-production sample to verify the chrome finish, check for cosmetic imperfections, and confirm the 3/4″ axle hole and rocker symmetry before committing to a larger production run.
