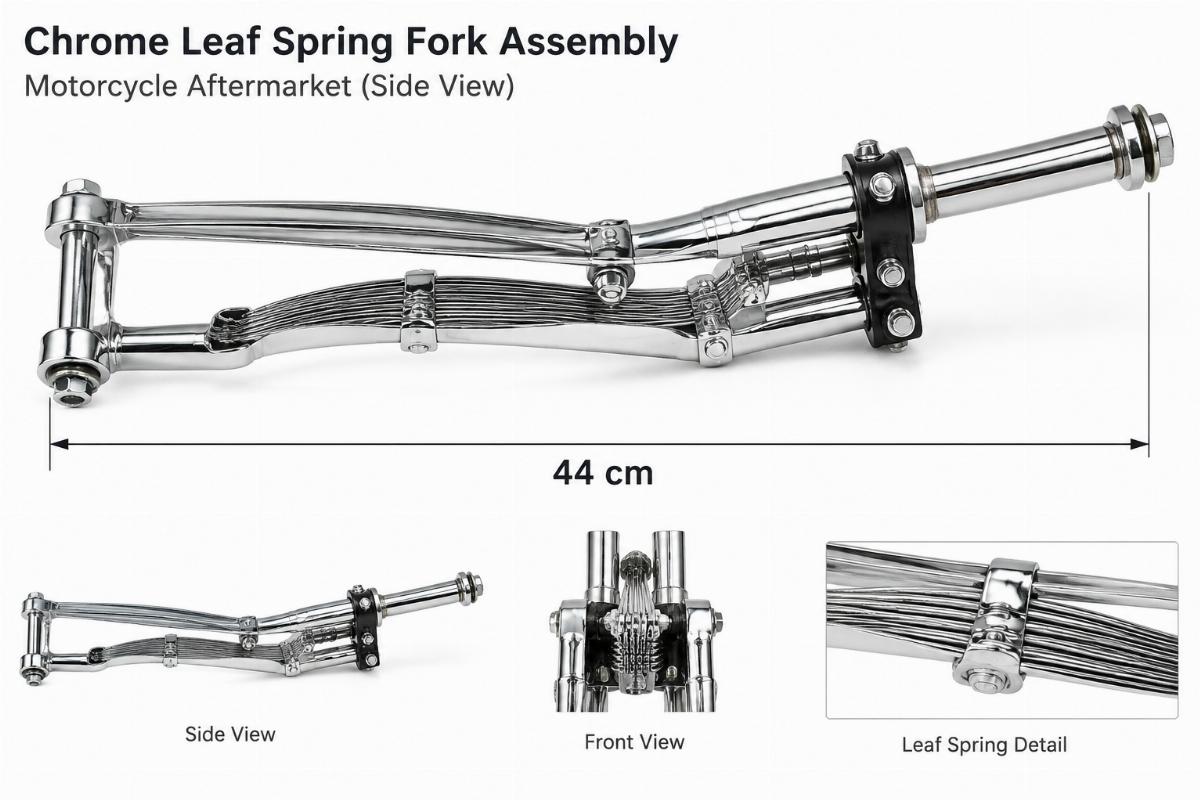

Aftermarket Replacement Leaf Spring Fork Assembly for Custom Springers
Verified springer production — Every stem thread and axle clearance is physically measured before dispatch to guarantee steering geometry matches your frame specs.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Leaf Spring Fork Assembly |
| Finish | Chrome |
| Stem Diameter | 1″ |

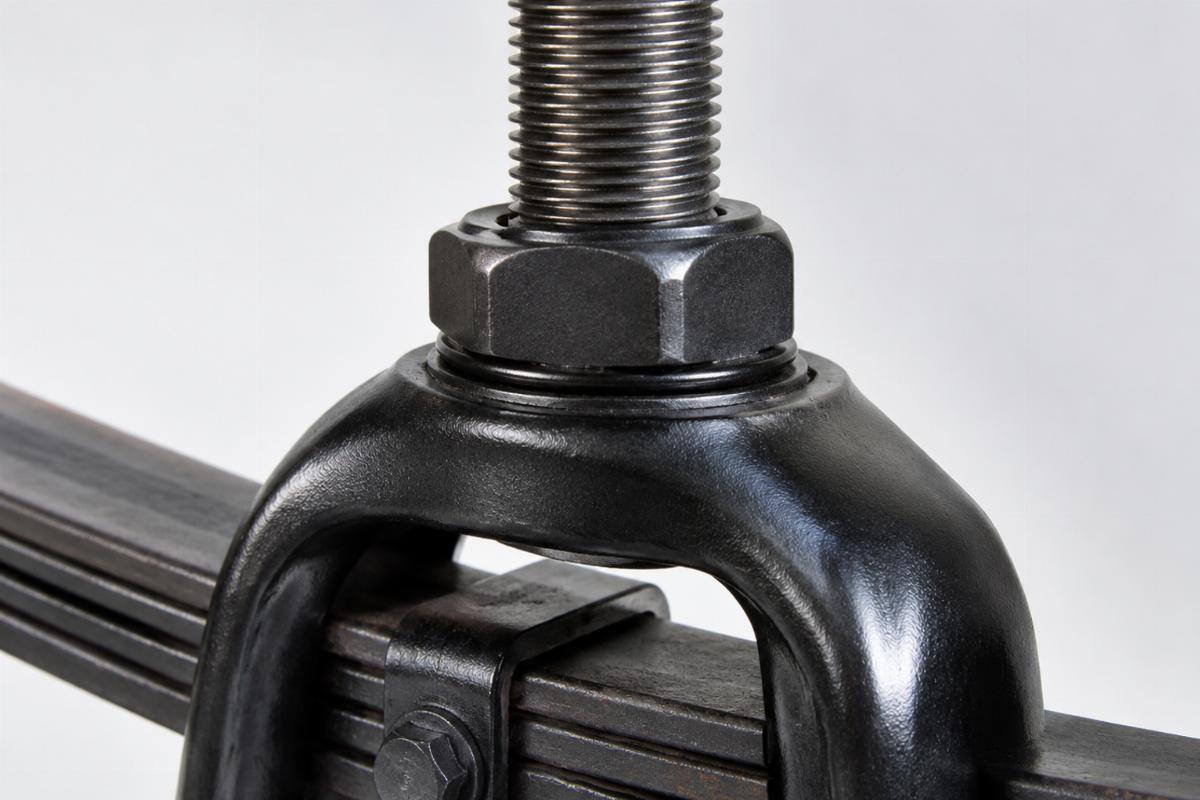

| Thread | 1″ x 24 |
| Length | 44cm (from lever tree base to axle) |
| Axle Diameter | 3/4″ |
| Top Tree Configuration | Standard spring configuration for mounting risers |
| Kit Contents | 1″ stem, top crown nut, 3/4″ axle with chrome acorn nuts, headlamp bracket welded in place for bottom mount of headlamps |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Confirm with model and year | Confirm with model and year | Verify steering head stem diameter and thread pitch prior to installation. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Custom Builds Fail When Stem Threads Are Ignored
A 1″ x 24 threaded stem dictates whether the front end actually seats into the steering neck.
Many custom springer listings omit critical stem thread and overall length specs, leaving builders unable to verify steering geometry or riser compatibility before ordering. I still remember a builder ordering a leaf spring fork for a Classic Big Twin pre-1984 chopper. The listing completely skipped the 44cm overall length and the 3/4″ axle detail. He needed a specific rake for his custom geometry, but because the axle spacing was never checked against his triple tree, the front wheel simply would not seat [NEED_CITE: frame neck stem diameter variations across custom chassis]. The fork looked right from afar, but the steering geometry was totally ruined.
Checking the Steering Head Before Ordering
When sourcing a leaf spring fork assembly motorcycle aftermarket, the first dimension to verify is the steering neck bore. This unit features a 1″ stem with a 1″ x 24 thread. If your frame neck was machined for a metric pitch or a different imperial thread, this assembly will cross-thread or bind. Always measure the female threads in the frame neck and compare them directly to the 1″ x 24 specification before placing an order.
Verifying Axle Spacing and Wheel Compatibility
The included 3/4″ axle with chrome acorn nuts requires exact matching with your front wheel spindle spacing. If the axle is too short, the wheel will bind against the fork legs; if it is too long, the acorn nuts will not engage enough threads to secure the wheel safely. Confirm your hub width and spindle clearance against the 3/4″ diameter to ensure the front end aligns correctly [NEED_CITE: front wheel hub spacing variations in custom chopper builds].
Understanding the 44cm Overall Length
The 44cm length is measured strictly from the lever tree base to the axle center. This specific dimension directly influences your motorcycle’s ride height and rake angle. A longer or shorter fork will alter the steering trail, changing how the bike handles at low speeds and during cornering. Always calculate your desired geometry based on this exact 44cm measurement rather than relying on generic “over stock” descriptions.
The Hidden Cost of Unverified Dimensions
Ordering a front end without confirming the 1″ x 24 stem thread or the 3/4″ axle diameter often results in the bike sitting on a lift for weeks. Builders frequently receive parts that look correct in photos but fail to mate with the frame or wheel upon arrival. This leads to return shipping costs, delayed build timelines, and the frustration of modifying custom trees to fit incorrect hardware. Verifying these dimensions beforehand prevents costly workshop downtime [NEED_CITE: workshop downtime caused by mismatched front end hardware].
Sourcing Directly from the Manufacturer
We produce our springer front ends and chassis hardware in our own facility, ensuring every 44cm length and 1″ stem is machined to consistent tolerances. This leaf spring fork assembly motorcycle aftermarket is backed by a single warranty and a unified quality inspection record. We offer a minimum order of one piece, allowing custom shops to order a single assembly for a specific build without meeting high volume quotas. Fitment is confirmed against your provided measurements before we finalize the quotation.
Documentation and Support Materials
- Fitment sheet stating applicable platforms and year ranges based on your measurements.
- Cross-reference sheet with OEM numbers marked reference only for identification.
- Key dimensions including the 44cm fork length and 1″ x 24 stem thread.
- Finish specification detailing the chrome plating process and standards.
- Quality inspection record verifying the 3/4″ axle and welded headlamp bracket.
Receiving and Pre-Installation Checks
- Verify the 1″ x 24 stem thread by threading the top crown nut by hand before forcing it.
- Measure the 44cm length from the lever tree base to the axle to confirm geometry.
- Inspect the welded headlamp bracket to ensure it aligns with your bottom-mount housing.
- Check the chrome finish on the 3/4″ axle and acorn nuts for any shipping damage.
- Confirm the top tree standard spring configuration matches your chosen riser base.
- Store the assembly in a dry environment to prevent moisture from affecting the chrome.
Requesting a Fitment Verification
Send your frame neck stem diameter, thread pitch, and front wheel axle spacing to confirm this leaf spring fork assembly motorcycle aftermarket will fit your specific chassis. Provide photographs of your current steering head and triple tree if the measurements are unknown. Let us know if you require a sample for physical fitment confirmation before committing to a bulk order for your shop.
Frequently Asked Questions
Q: How do I measure my frame to confirm the 1″ x 24 stem thread will fit?
A: Use a thread pitch gauge or a known 1″ x 24 bolt to check the female threads inside your steering neck. Measure the inner diameter of the neck to ensure it accepts a 1″ stem. If the threads do not match perfectly, the stem will not seat correctly and could damage the frame neck during installation.
Q: What is the exact length of the fork and how does it affect ride height?
A: The overall length is exactly 44cm, measured from the lever tree base to the axle center. This dimension directly dictates your front ride height and alters the rake and trail of your motorcycle. Changing this length will impact steering geometry, so it must match your custom build requirements precisely.
Q: Does the assembly include the axle and mounting hardware for the headlamp?
A: Yes, the kit includes a 3/4″ axle paired with chrome acorn nuts, a 1″ stem, and a top crown nut. Additionally, a headlamp bracket is welded directly in place to support a bottom-mount headlamp configuration, providing the necessary hardware for front-end assembly.
Q: Can I order a single leaf spring fork assembly for a custom build?
A: Yes, we support custom builders and restoration shops by offering a minimum order quantity of just one piece. You do not need to meet high volume thresholds to purchase this front end. We also provide sample supply options if you need to verify the physical fitment before finalizing your order.
Q: How do I verify the axle diameter and spacing for my front wheel?
A: Measure the distance between the inner faces of your front wheel hub where the axle sits. Compare this width to the length of the included 3/4″ axle to ensure the wheel will sit centered without binding. Confirm your wheel spindle accepts a 3/4″ diameter axle before installation.
