Aftermarket Replacement Leaf Spring Fork Assembly for Custom Builds
One-Piece Minimum Order — We supply this leaf spring fork assembly motorcycle aftermarket unit for single custom builds without blocking shops with bulk requirements.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Leaf Spring Fork Assembly |
| Finish | Parkerized |
| Stem | 1″ |
| Thread | 1″ x 24 |

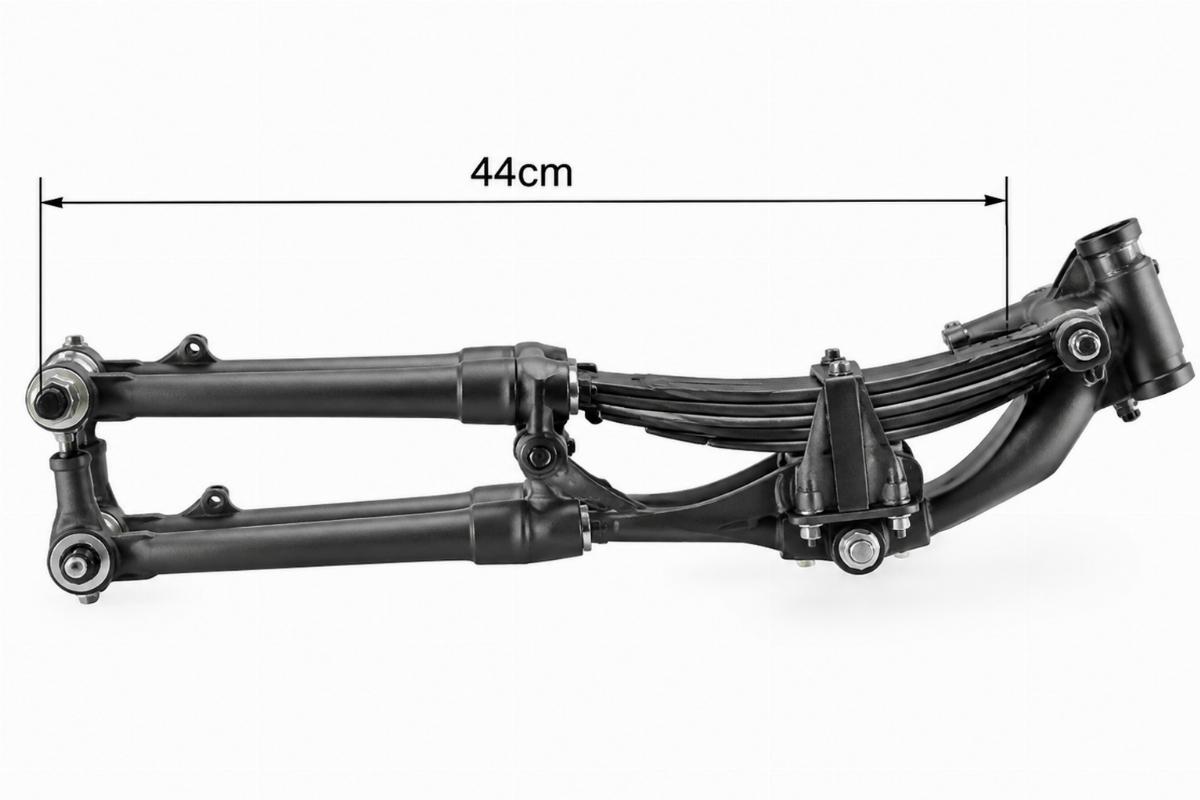

| Length | 44cm (from lever tree base to axle) |
| Axle | 3/4″ |
| Top Tree Configuration | Standard spring configuration for mounting risers |
| Kit Contents | 1″ stem, top crown nut, 3/4″ axle, chrome acorn nuts |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Not stated in source | Not stated in source | Confirm with model and year. Verify frame geometry and axle hub spacing before ordering. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Overall Length Dictates Your Chopper Geometry
A 44cm leaf spring fork assembly motorcycle aftermarket unit completely alters rake and ride height if your frame was not designed for this specific measurement.
Builders often order springer forks without checking the exact overall length, assuming all custom front ends will fit a standard chopper frame. When the lever tree base to axle distance is off by even a few centimeters, the front end sits too high or too low, ruining the steering geometry and making the bike handle unpredictably. I once saw a builder ignore the 44cm length spec, and it completely ruined the stance and ride height of his custom build [NEED_CITE: frame geometry and rake calculations for custom springer setups].
Verifying Stem Thread for Steering Head Compatibility
The 1″ stem with a 1″ x 24 thread on this leaf spring fork assembly motorcycle aftermarket unit must perfectly match your steering head neck and top nut setup. If the thread pitch or diameter is slightly off, the top crown nut will not seat correctly, leading to dangerous steering play or inability to tighten the assembly. Always measure your existing stem or check the frame neck specifications before finalizing the order [NEED_CITE: steering stem thread standards across custom frames].
Checking Axle Diameter for Hub Alignment

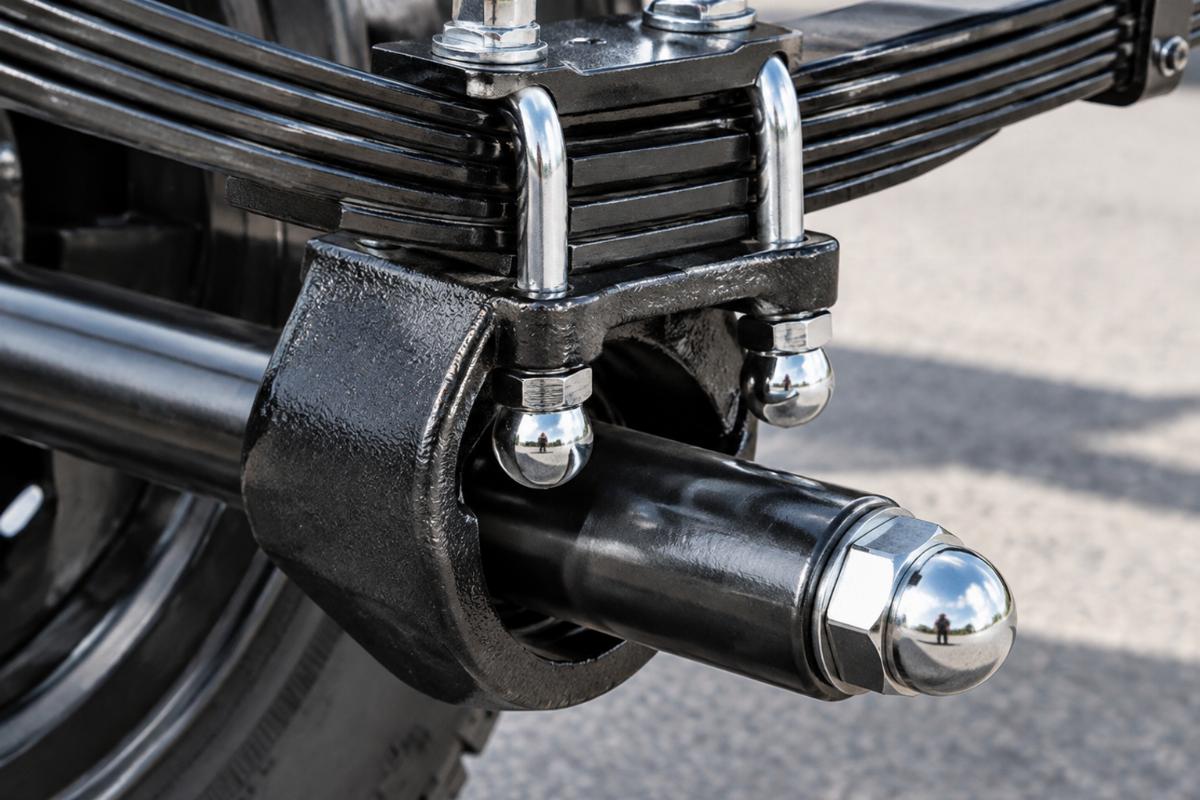

This assembly includes a 3/4″ axle, which must align precisely with your front wheel hub spacing and bearing size. A mismatched axle diameter means the wheel will not mount, or the bearings will fail prematurely under load. I previously sent a leaf spring fork to a builder who ignored the 3/4″ axle spec; when it arrived, the axle was too thin for his hub, forcing him to halt the build and source a new wheel [NEED_CITE: axle diameter and hub spacing requirements for custom front wheels].
The Hidden Cost of Ignoring Fork Dimensions
Ordering a front end without confirming the 44cm length and 3/4″ axle diameter leads to immediate workshop delays. The bike ends up stuck on the lift because the wheel will not fit or the steering stem will not thread into the neck. Shops then waste hours modifying brackets or waiting for replacement parts, turning a simple front-end swap into a costly rebuild. These fitment errors cascade through the entire build timeline [NEED_CITE: workshop downtime caused by incorrect front end dimensions].
Sourcing Front Ends with Confirmed Dimensions
We verify the lever tree base to axle length and axle diameter before quoting any leaf spring fork assembly motorcycle aftermarket unit. Our fitment sheet details the exact platform and year range this parkerized assembly was checked against. You can order a single piece for a custom build, and we provide a sample for fitment confirmation before you commit to bulk orders for your catalogue.
Documentation Provided
- Fitment sheet stating applicable platforms and year ranges for this parkerized assembly.
- Key dimensions including the 44cm fork length and 3/4″ axle diameter.
- Finish specification confirming the parkerized treatment and chrome acorn nuts.
- Quality inspection record verifying the 1″ x 24 stem thread.
- Packing photographs showing the complete kit contents before dispatch.
Receiving and Pre-Installation Checks
- Verify the kit includes the 1″ stem, top crown nut, 3/4″ axle, and chrome acorn nuts.
- Measure the 44cm length from the lever tree base to the axle to confirm frame fitment.
- Check the 1″ x 24 thread on the stem against your steering head neck.
- Inspect the parkerized finish for consistency and ensure the 3/4″ axle is straight.
- Have a qualified technician confirm the top tree configuration before mounting risers.
- Store the assembly in a dry environment to protect the parkerized finish and chrome hardware.
Requesting a Fitment Check
Send your model and year, along with a photograph or measurements of your current steering neck and front hub, to verify if this leaf spring fork assembly motorcycle aftermarket unit fits your geometry. Let us know if you need a sample for a test fit before placing a larger order for your shop.
Frequently Asked Questions
Q: How do I confirm this leaf spring fork assembly fits my custom frame geometry?
A: You must measure your frame’s steering neck to ensure it accepts a 1″ stem with a 1″ x 24 thread. Additionally, verify that the 44cm overall length from the lever tree base to the axle matches your desired ride height and rake. Confirming the 3/4″ axle diameter against your front wheel hub spacing is also critical before ordering.
Q: What are the key dimensions to measure when replacing a leaf spring fork?
A: The most critical dimensions are the overall length from the lever tree base to the axle, which dictates your rake and ride height. You must also measure the stem diameter and thread pitch to match your steering head, and check the axle diameter to ensure it fits your front wheel hub bearings and spacing.
Q: What components are included in this leaf spring fork assembly kit?
A: The kit includes the complete parkerized leaf spring fork assembly with a 1″ stem and standard spring top tree configuration for mounting risers. It also comes with the necessary hardware: a top crown nut, a 3/4″ axle, and chrome acorn nuts, providing everything needed for the front-end installation.
Q: Can I order a single leaf spring fork assembly for a custom build?
A: Yes, we support one-piece minimum orders for custom builders and independent repair shops. You do not need to meet a high bulk threshold to purchase this unit. We also offer sample supply for fitment confirmation before you commit to larger orders for your inventory or multiple builds.
Q: How do I verify the stem thread and axle size before ordering?
A: Check your existing steering stem or frame neck specifications to confirm it requires a 1″ diameter stem with a 1″ x 24 thread pitch. For the axle, measure your front wheel hub spacing and bearing inner diameter to ensure a 3/4″ axle is the correct match. If unsure, send us photos or measurements for verification.
