Aftermarket Replacement Custom Springer Fork Kit for Motorcycles
Consistent Finish Batches — Every custom springer fork kit undergoes strict visual inspection to ensure the black kit finish and chrome springs match perfectly across production runs.

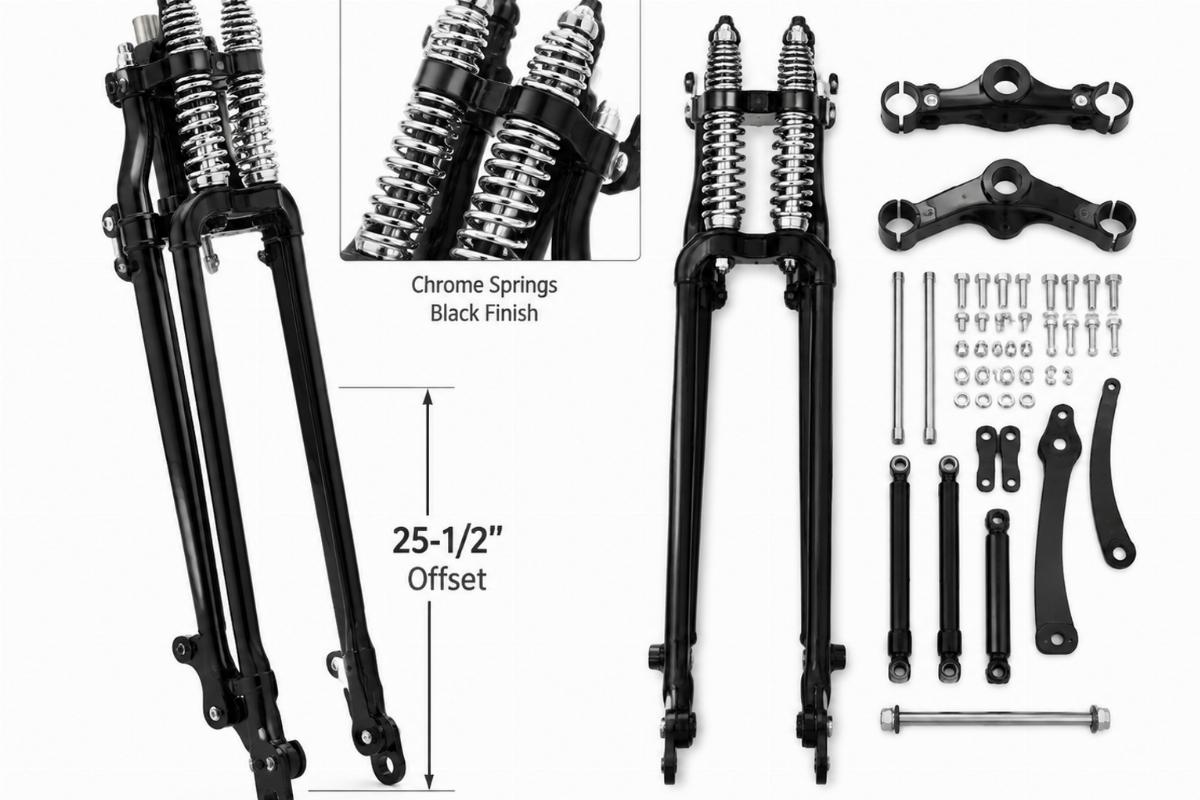

Product Specification
| Parameter | Value |
|---|---|
| Part Type | Custom Springer Fork Kit |
| Overall Length | 25-1/2″ |
| Kit Finish | Black |
| Springs Finish | Chrome |
| Top Triple Tree Finish | Chrome |
| Top Triple Tree Design | Machined without ears |
| Offset | Yes |
| Leg Thread | 1/2″ x 20 |
| Bearing Requirement | 1″ taper bearing kit (sold separately) |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom motorcycles | Confirm with model and year | Verify frame neck dimensions for the 1″ taper bearing kit. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Judging Ride Height and Steering Geometry for Offset Setups
A 25-1/2″ offset length changes rake and trail, requiring careful frame geometry checks before assembly.
When sourcing a custom springer fork kit, builders often face listings that state an overall length without clarifying the offset impact. This 25-1/2″ setup alters the steering geometry compared to inline or stock-length forks. Failing to calculate how this offset interacts with your specific frame neck angle can lead to unexpected handling characteristics or fender clearance issues [NEED_CITE: frame geometry calculations for offset front ends].
Verifying Frame Neck Dimensions for Taper Bearings
The top triple tree on this custom springer fork kit is machined without ears and designed specifically for a 1″ taper bearing kit. You must confirm that your frame’s steering head cup matches this exact 1″ specification. Installing a fork assembly with mismatched bearing dimensions will prevent proper steering rotation and damage the frame neck [NEED_CITE: steering head bearing size variations across custom frames].
Managing Axle Spacing on Offset Assemblies
Because this unit features an offset design, the wheel alignment relies entirely on precise axle spacing. I once walked a builder through measuring the axle width on a similar 25-1/2″ offset setup after he skipped the axle spacers. The wheel sat completely off-center and rubbed the fender, and he initially blamed the fork legs. Adding the required spacers centered the wheel properly, proving that offset setups demand exact spacing measurements [NEED_CITE: axle spacer requirements for offset springer forks].
Interpreting the 25-1/2″ Length and 1/2″ x 20 Thread
The 25-1/2″ overall length dictates the visual stance and ride height of the front end. Additionally, the 1/2″ x 20 leg thread must match your axle hardware exactly. If your existing axle nuts or spacers use a different thread pitch, they will not secure the wheel safely. Always verify the leg thread against your axle components before final assembly.
Hidden Costs of Misaligned Offset Front Ends
Ignoring the offset geometry or skipping axle spacers forces the wheel out of alignment, causing tire rub and premature bearing wear. A mismatched 1/2″ x 20 leg thread means the axle hardware cannot be tightened to the correct specification, leaving the front end unstable. Furthermore, inconsistent finish batches between the black legs and chrome springs create a mismatched look once the custom springer fork kit is fully assembled and visible on the bike.
Sourcing Front End Depth and Finish Consistency
We produce this custom springer fork kit in our own facility, allowing us to control the black and chrome finish consistency across every batch. We confirm the 25-1/2″ length and offset details against your platform before quotation to prevent geometry surprises. Our catalog offers front end depth with multiple over-stock lengths, and we support a single-piece minimum order for custom builders working on one-off projects.
Documentation and Fitment Verification
- Fitment sheet stating applicable platforms and year ranges for this 25-1/2″ length.
- Key dimensions including offset details and 1/2″ x 20 leg thread specifications.
- Finish specification confirming black kit and chrome spring consistency.
- Quality inspection record for the machined top triple tree without ears.
- Packing photographs showing the black finish and chrome components.
Receiving and Pre-Installation Checks
- Verify the 25-1/2″ overall length matches your frame geometry requirements.
- Inspect the black kit finish and chrome springs for visual consistency.
- Confirm the 1/2″ x 20 leg thread matches your axle hardware.
- Ensure the 1″ taper bearing kit is ordered separately and on hand.
- Check that the machined top triple tree without ears fits your stem.
- Store the custom springer fork kit in a dry environment to protect finishes.
Requesting a Fitment Check
Send your frame model, year, and steering head measurements to verify the 1″ taper bearing compatibility. Provide your axle width to confirm the spacer requirements for this offset design. Let us know if you need a sample for fitment confirmation before placing a bulk order for your shop.
Frequently Asked Questions
Q: How does the 25-1/2″ length and offset affect my custom frame geometry?
A: The 25-1/2″ overall length combined with the offset design alters the rake and trail of your front end. You must calculate how this specific offset interacts with your frame’s neck angle to ensure proper ride height and steering geometry. Failing to account for the offset can lead to fender clearance issues or unexpected handling characteristics on the road.
Q: What bearing kit is required for this springer fork?
A: This assembly requires a 1″ taper bearing kit, which is sold separately and not included in the package. You must verify that your frame’s steering head cups are machined to accept a 1″ taper bearing. Installing this fork with incorrect bearing dimensions will prevent proper steering rotation and may damage the frame neck.
Q: How do I measure my leg thread to ensure it matches 1/2″ x 20?
A: You need to measure the diameter of the threaded portion at the bottom of the fork leg, which should be exactly 1/2 inch. Then, count the number of thread peaks within a one-inch span along the leg; there must be exactly 20 threads per inch. Your existing axle hardware and nuts must match this 1/2″ x 20 specification to secure the wheel properly.
Q: Can I order a single kit for a custom build?
A: Yes, we support a single-piece minimum order, making it easy to purchase one custom springer fork kit for a specific custom build without meeting high bulk thresholds. This allows independent repair shops and custom builders to source exact front-end components for one-off projects while still receiving full fitment verification and finish consistency checks.
Q: How is finish consistency maintained between chrome and black batches?
A: We produce these front ends in our own facility, allowing strict visual inspection of both the black kit finish and the chrome springs during production. This controlled process ensures that the contrast between the black legs and chrome components remains consistent across different production runs, preventing mismatched aesthetics when the fork is fully assembled on the bike.
