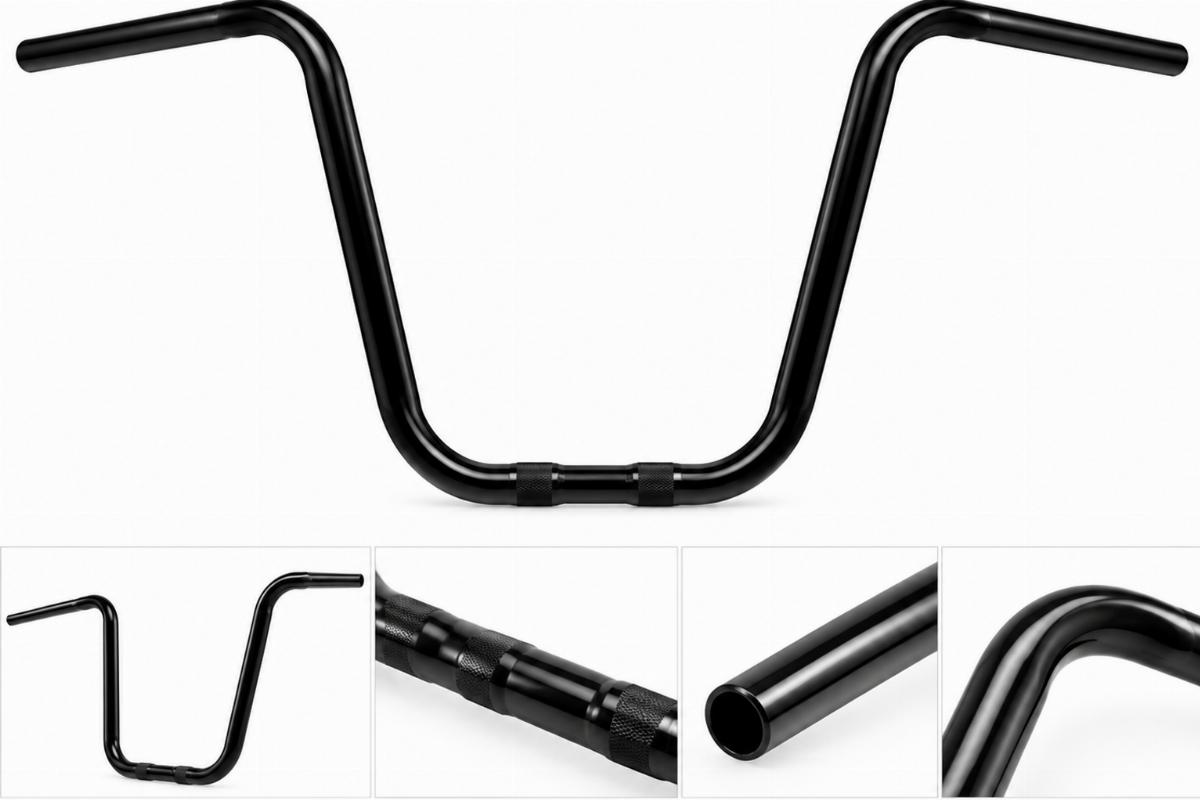

Aftermarket Replacement Big Ape Handlebars for Custom Use
Fitment Verified Before Shipping — Every handlebar dimension is checked against your specific riser clamp and wiring requirements before dispatch.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebars |
| Finish | Black |
| Rise | 12″ |
| Total Width | 34″ |
| Center Width | 8″ |
| Pullback | 8″ |
| Outer Diameter | 1 1/4″ |
| Grip Diameter | 1″ |
| Center Mounting | 3 1/2″ |
| Switch Area | Dimpled |

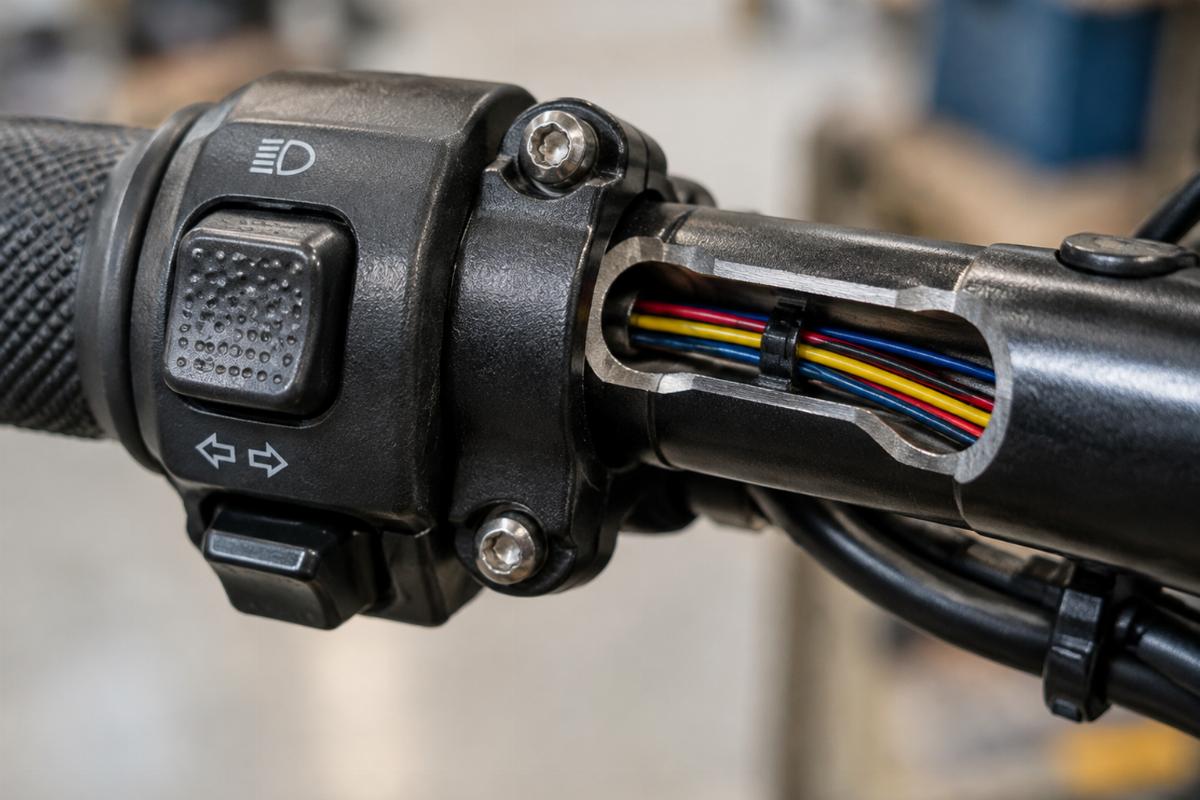

| Internal Wiring | Drilled |
| Riser Area | Knurled |
| Master Cylinder Area | Relief for clearance |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom Use | Confirm with model and year | Verify center mounting width and internal wiring paths for specific control setups. |
