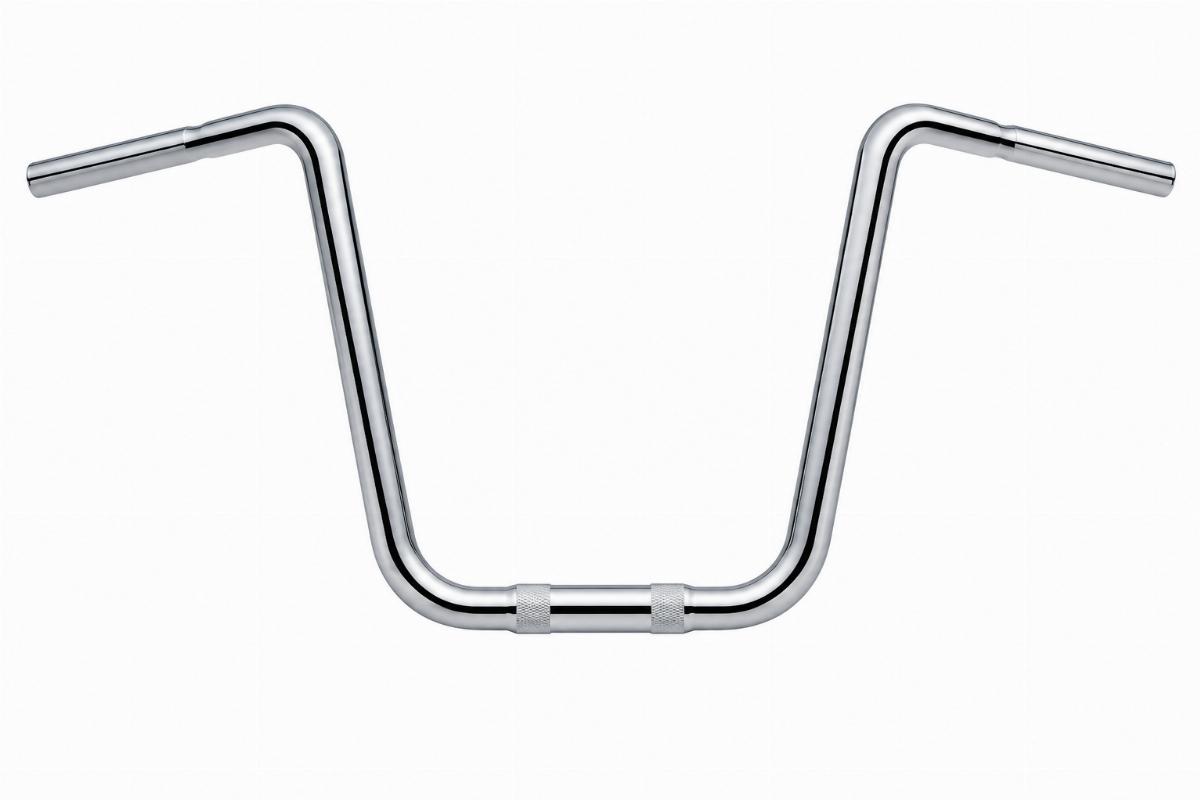

Aftermarket Replacement Ape Hanger Handlebars for Touring Models
Single Piece Order Available — Confirm exact 2008-2013 Touring model year and fairing clearance dimensions before dispatch to ensure perfect fitment.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Handlebars |
| Finish | Chrome plated |
| Style | Six Bend |
| Diameter (O.D.) | 1 1/4″ |
| Width | 38″ |
| Rise | 12″ |
| Pullback | 15″ |
| Design Features | Sweged at bar transitions, Offset bend for fairing clearance |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Touring Models (Dressers) | 2008-2013 | Verify offset bend requirement for fairing clearance on specific model year. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Missing Dimension Details Cause Fairing Clearance Issues with Ape Hanger Handlebars for Touring Models
Verify 1 1/4″ O.D., 12″ rise, 15″ pullback and offset bend before ordering to avoid fairing fitment failures.
Handlebar listings often omit critical dimensions like rise, pullback or fairing clearance offsets. When a shop receives bars without these details, the fairing fails to sit flush and wiring holes misalign, leaving the bike torn apart on the lift. [NEED_CITE: fairing clearance dimensions across Touring model years]

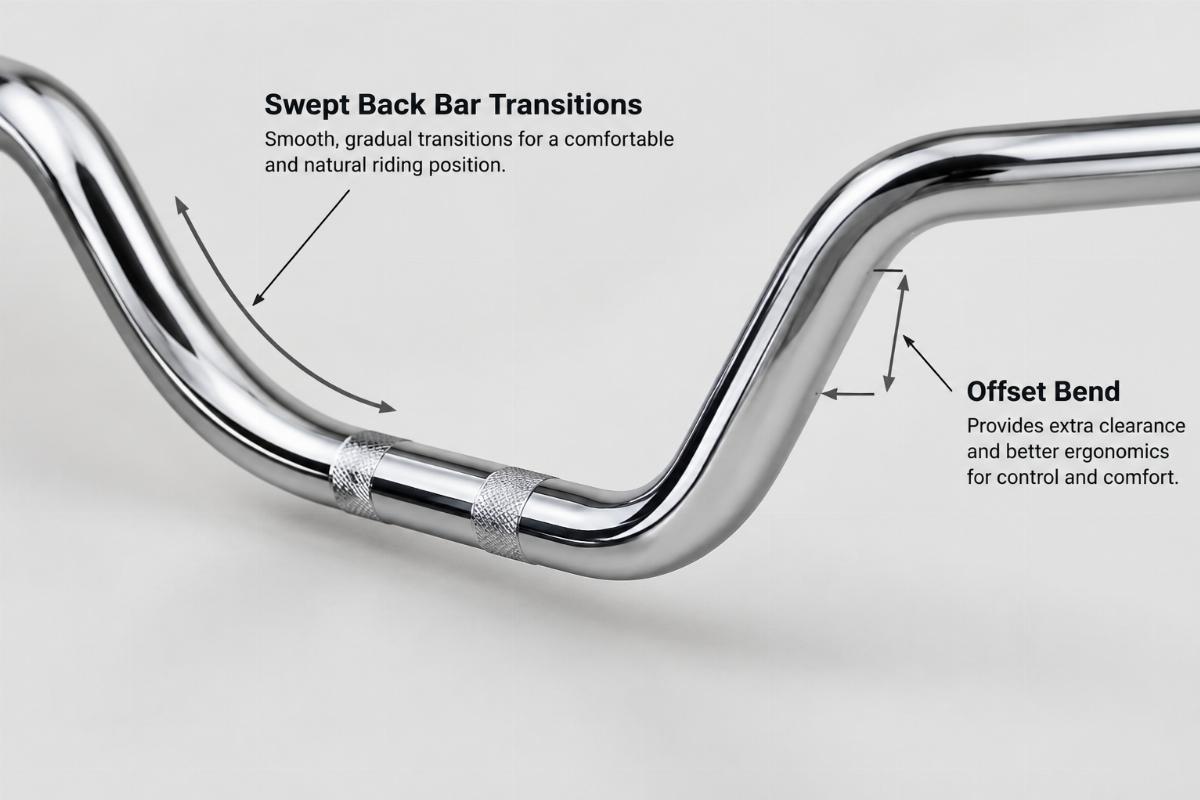

Checking Offset Bend Requirements for Dresser Fairings
When sourcing ape hanger handlebars for touring models, the offset bend is the most overlooked specification for Dresser builds. A standard inline bend will push the bar back into the fairing pocket, preventing the windshield and lowers from seating correctly. The 15″ pullback combined with the specific offset bend on these 12″ rise bars keeps the control zone clear of the fairing bracketry. [NEED_CITE: fairing bracket spacing variations by model year]
Verifying Riser and Control Compatibility
The 1 1/4″ O.D. requires matching riser clamps and control housings to prevent slipping or crushing. Shops must confirm that the 38″ width provides enough sweep for the specific grip and switch housing layout intended for the build. Sweged transitions ensure the diameter steps down cleanly at the control mounts without interfering with internal wiring routing.
Understanding the Impact of Rise and Pullback
A 12″ rise fundamentally changes the rider triangle, requiring longer brake and clutch lines to maintain safe lever geometry. The 15″ pullback brings the grip position closer to the rider, which alters wrist angle and reach. These dimensions dictate whether the stock cable harness will reach or if extended aftermarket lines are mandatory for the 2008-2013 platform.
Hidden Costs of Incorrect Handlebar Fitment
Ordering ape hanger handlebars for touring models without confirming the exact year range often results in fairing interference. If the offset bend is wrong, the shop must disassemble the entire front end, modify the bar or wait weeks for a replacement, stalling the build. Furthermore, mismatched 1 1/4″ diameters at the risers cause finish damage and control slippage, requiring costly rework and new hardware. [NEED_CITE: cable length requirements for high rise handlebars]
Sourcing Strategy for Custom and Restoration Shops
We verify every set of ape hanger handlebars for touring models against the 2008-2013 platform before quotation to guarantee the offset bend matches your fairing. Chrome and black finish options are available to match your specific build theme without waiting for custom plating. You can order a single piece for a custom build or request a sample to confirm the 12″ rise and 15″ pullback before committing to bulk stock.
Documentation Provided with Shipment
- Fitment sheet stating applicable Touring platforms and 2008-2013 year ranges
- Key dimensions including 1 1/4″ O.D., 38″ width, 12″ rise and 15″ pullback
- Finish specification for chrome plated batches
- Quality inspection record verifying sweged transitions and offset bend
- Packing photographs showing bar condition before dispatch
Pre-Installation Verification Steps
- Measure 1 1/4″ O.D. at riser clamps to confirm exact match with your hardware
- Check 12″ rise and 15″ pullback against your cable and wiring harness length
- Inspect chrome plated finish for consistency across the six bend transitions
- Verify offset bend clearance against your specific 2008-2013 fairing bracket
- Ensure sweged transitions align correctly with internal wiring holes
- Store in a dry environment to preserve the chrome plated surface before mounting
Requesting a Fitment Check and Quotation
Send your exact Touring model designation and year to confirm the offset bend and fairing clearance requirements for your build. Provide a photograph or measurements of your current bars if the year is unknown, along with your required finish and quantity. We will reply with a fitment sheet and quotation, and can supply a single piece for physical verification before you place a larger order.
Frequently Asked Questions
Q: How to confirm my 2008-2013 Touring model year fits these handlebars?
A: Provide the exact model designation and year to verify the offset bend requirement for fairing clearance. We check the 12″ rise and 15″ pullback against the specific platform geometry to ensure the bars clear the fairing bracketry and match your cable routing needs.
Q: What key dimensions should I measure to ensure 1 1/4″ O.D. compatibility?
A: Measure the outer diameter of your existing riser clamps and control housings to confirm they accept a 1 1/4″ bar. Check the width of your switch housings to ensure the 38″ width provides adequate sweep for your specific grip and button layout.
Q: Does the offset bend guarantee fairing clearance for all Dresser models?
A: The offset bend is designed specifically for the 2008-2013 Touring platform to clear standard fairing pockets. If your build uses aftermarket fairings or modified brackets, you must verify the physical clearance against the 15″ pullback and 12″ rise before final assembly.
Q: Can I order a single piece for a custom build?
A: Yes, we support single piece orders for custom builders and repair shops. You can order one set to verify the chrome finish quality, sweged transitions and fairing clearance on your lift before committing to a larger bulk purchase for your inventory.
