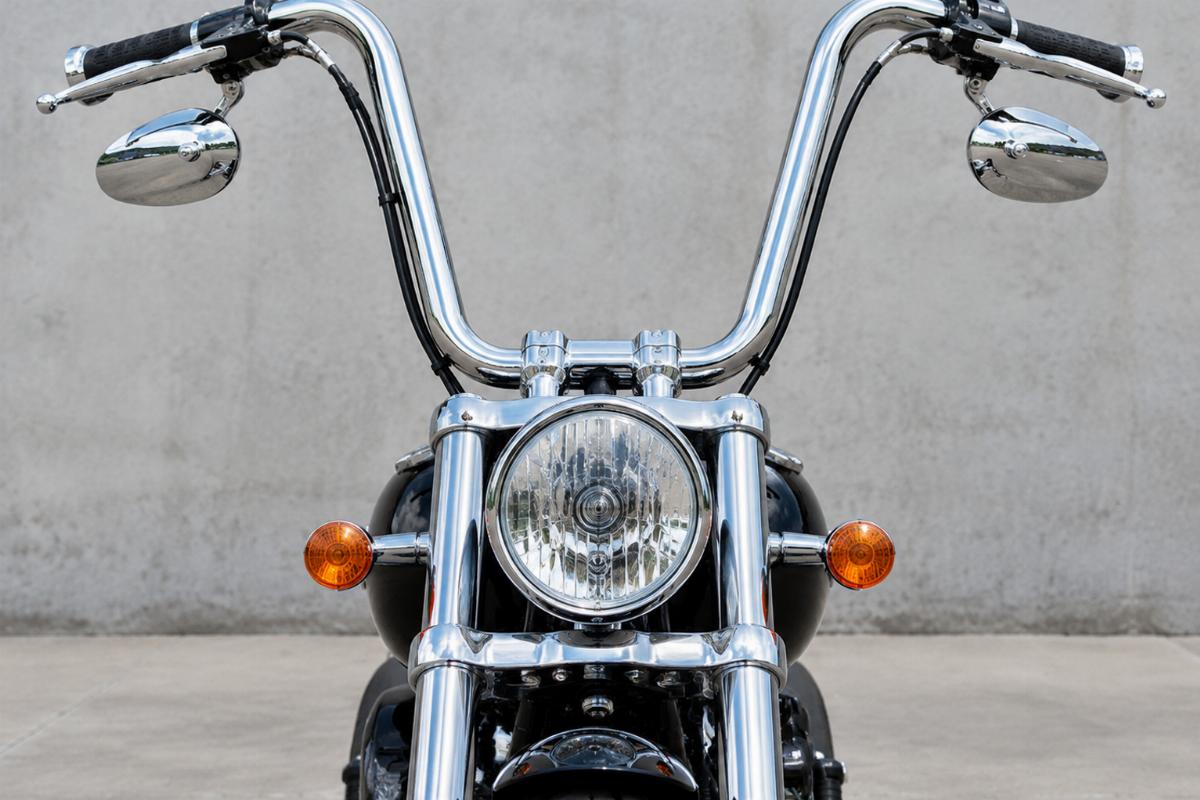

Aftermarket Replacement Ape Hanger Handlebars for Custom Use
Single Piece Minimum Order — Custom builders and repair shops can order exactly one set of these 18-inch rise ape hanger handlebars for a specific project without meeting bulk thresholds.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Ape Hanger Handlebars |
| Finish | Chrome Plated |
| Diameter | 1 1/4″ O.D. |
| Rise | 18″ |
| Total Width | 35″ |
| Center Width | 10″ |
| Pullback | 9″ |
| Riser Center Spacing | 3 1/2″ |
| Switch Area | Dimpled |
| Riser Area | Knurled |
| Wiring | Drilled for internal wiring |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Custom Use | Confirm with model and year | Verify riser mount spacing matches 3 1/2″ centers and 1 1/4″ O.D. clamp sizes. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Missing Handlebar Dimensions Cause Custom Build Delays
Incomplete specifications lead to mismatched controls and incorrect riser fitment.
Handlebar listings often omit critical measurements like rise, pullback, and center spacing, making it difficult to judge if the part matches your custom geometry. When these details are missing, shops receive bars that do not align with switch housings or riser clamps, forcing rework and delaying the build [NEED_CITE: common fitment errors in custom handlebar installations].
Verifying Riser Center Spacing and Bar Diameter
When selecting ape hanger handlebars motorcycle aftermarket options, confirming the riser center spacing is essential for proper alignment. These bars feature a 3 1/2″ center spacing and a 1 1/4″ O.D., which requires matching riser clamps. If the spacing or diameter is overlooked, the bars will not seat correctly in the trees, leading to structural instability and control misalignment.
Checking Switch Housing Alignment and Wiring Routes

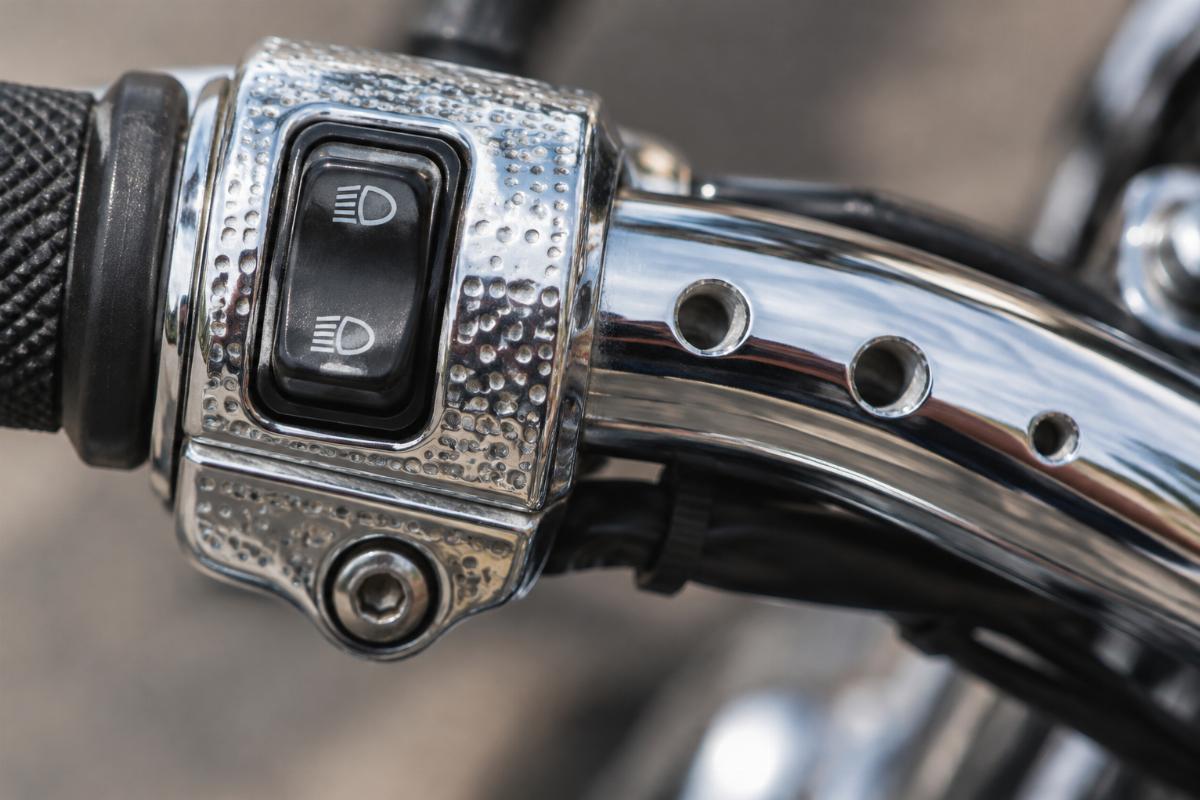

The switch area on these bars is dimpled to accommodate standard handlebar controls, while the riser area is knurled to prevent slippage. Additionally, the bars are drilled for internal wiring. Verifying that the dimple placement matches your specific switch housings and that the drilled holes align with your wiring route prevents the need for additional modifications during assembly [NEED_CITE: switch housing dimple variations across control manufacturers].
Interpreting Rise, Width, and Pullback Measurements
The 18″ rise, 35″ total width, and 9″ pullback directly dictate the rider’s posture and reach. A taller rise changes the steering geometry and requires longer control cables and brake lines. The total width and pullback determine how the rider’s weight is distributed over the front end. Ignoring these dimensions can result in a riding position that is uncomfortable or unsafe for the intended custom application.
The Hidden Cost of Overlooking Fitment Details
Failing to verify bar diameter and center spacing often results in parts that simply will not mount to the existing triple trees. When a shop receives a 1 1/4″ O.D. bar but has 1″ riser clamps, the bike sits on the lift waiting for new hardware. Similarly, if the switch area dimples do not match the control housings, the switches cannot be secured properly, requiring the shop to source entirely different controls or modify the bars, which voids the finish and compromises the build timeline [NEED_CITE: rework frequency due to mismatched handlebar specifications].
Why Source These Handlebars From Us
We confirm fitment against the platform and year range before quoting to ensure the 3 1/2″ riser centers match your setup. Our chrome plating process maintains finish consistency across batches, so multiple orders look identical side by side. We support one-piece minimum orders, allowing custom builders to purchase a single set for a specific project without bulk requirements. We provide detailed dimension sheets covering rise, width, and pullback to help you verify the geometry before dispatch. We also offer sample supply for fitment confirmation if you need to check the dimple placement against your specific controls before committing to a larger order.
Documentation Provided With Your Order
- Fitment sheet stating applicable platforms and year ranges for custom applications.
- Key dimensions sheet listing bar diameter, rise, width, pullback, and center spacing.
- Finish specification detailing the chrome plating process and consistency standards.
- Quality inspection record verifying dimple placement and drilling alignment.
- Packing photographs showing the chrome finish and physical condition before dispatch.
Pre-Installation Checks Upon Receipt
- Verify the 1 1/4″ O.D. matches your existing riser clamps and control housings.
- Measure the riser center spacing to confirm it aligns with your 3 1/2″ triple tree mounts.
- Check the dimpled switch area to ensure it matches the profile of your specific controls.
- Inspect the chrome plated finish for any shipping damage or surface inconsistencies.
- Confirm the drilled holes for internal wiring are clear and properly aligned.
- Ensure the 18″ rise and 35″ width match your planned cable and line lengths.
Request a Fitment Check For Your Build
Send your model and year, along with your current riser center spacing and bar diameter, so we can verify fitment before you order. If you are unsure about the switch housing dimple placement, provide a photograph of your existing controls for cross-reference. Let us know if you require a single piece for a one-off custom build or if you need a sample to verify the chrome finish and dimensions before placing a bulk order.
Frequently Asked Questions
Q: How do I verify if these ape hangers will fit my custom risers?
A: Check your riser mount spacing to ensure it matches the 3 1/2″ center spacing of these bars. You must also confirm your riser clamps are designed for a 1 1/4″ O.D. bar. If your current setup uses 1″ clamps, you will need to source new clamps or risers to accommodate the thicker diameter.
Q: Will my stock switches and controls fit the dimpled area?
A: The switch area is dimpled to fit standard handlebar controls, but dimple depth and placement can vary between manufacturers. It is best to compare the dimple profile on these bars with your specific switch housings to ensure a secure fit without requiring modification to the controls or the bars.
Q: Can I order just one set of these handlebars for a single custom project?
A: Yes, we support a one-piece minimum order. You can purchase a single set of these 18-inch rise bars for a specific build without needing to meet a bulk quantity threshold. This is ideal for custom builders and repair shops working on one-off projects.
Q: Do you provide samples to check the finish and dimensions before a bulk order?
A: Yes, we offer sample supply for fitment confirmation. You can order a single sample to verify the chrome plating consistency, check the dimple placement against your controls, and measure the rise and pullback before committing to a larger bulk order for your inventory.
