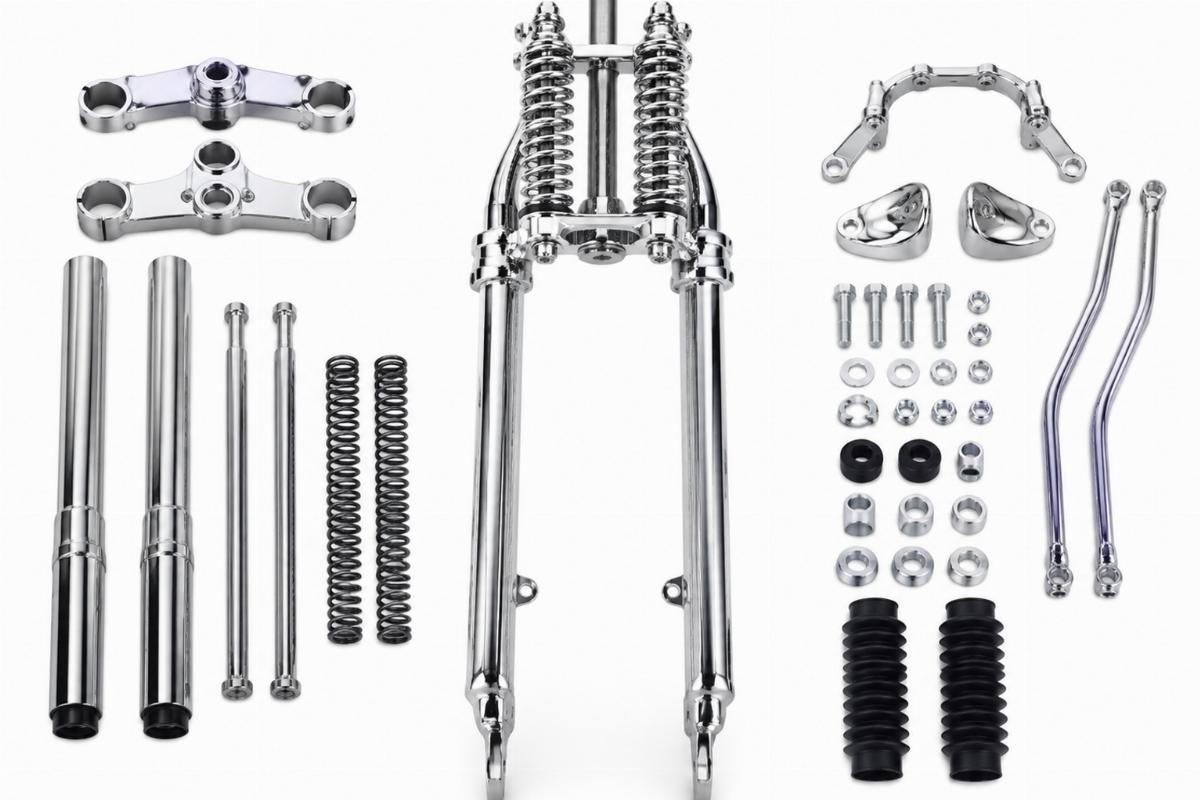

Aftermarket Replacement 39″ Springer Fork Assembly Kit for Big Twin
Front-end depth verified — Complete springer assemblies and multiple over-stock lengths checked against exact platform and year ranges before quotation.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Assembly Kit |
| Finish | Chrome |
| Length | +12″ over stock, total length 39″ (measured from top triple tree to rear rocker stud) |
| Stem | 1″ stem |
| Wheel Size | 21″ |
| Kit Contents | neck post, top nut, crown nut, top for clamp without ears, 1″ stem, shocks |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Big Twin, Chopper, Rigid frames | Confirm with model and year | utilizes a 21″ wheel and solid mount fender |
| FL | 1948-1984 | Verify frame geometry for +12″ over stock length |
| FX | 1971-1984 | Verify frame geometry for +12″ over stock length |
| FXST | 1984-1999 | Verify frame geometry for +12″ over stock length |
| FLST | 1986-1999 | Verify frame geometry for +12″ over stock length |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Judging Ride Height and Steering Geometry on a 39″ Springer Fork Assembly Kit for Harley-Davidson
The 39-inch total length and +12″ over stock configuration directly alter rake and trail, requiring exact frame geometry verification before mounting.
When sourcing a springer fork assembly kit for harley-davidson builds, listings often omit the overall length, leaving builders unable to judge how the bike will sit or steer. A +12″ over stock setup changes the front-end geometry significantly, and without confirming the frame is designed for that specific rake, the assembly might not mount correctly or could negatively affect handling. I always check the exact model year and frame type to ensure the 39-inch measurement aligns with the intended chopper or rigid frame setup [NEED_CITE: factory service manual specifications by model year].
Verifying Platform and Year Range for the 39″ Assembly
Determining if this springer fork assembly kit for harley-davidson fits requires matching the exact model code and year range, as frame dimensions change across generations. The FL platform spans 1948-1984, while the FX covers 1971-1984, meaning the steering head dimensions and neck post requirements differ between early and late frames. For Softail models, the FXST (1984-1999) and FLST (1986-1999) have distinct frame geometries that must accommodate the +12″ over stock length and the included 1″ stem.
Confirming Frame Geometry for Over-Stock Lengths
Adding 12 inches to the stock length fundamentally shifts the front-end profile, which is why confirming frame geometry is critical before ordering. The 39-inch total length, measured from the top triple tree to the rear rocker stud, dictates the ride height and steering angle. Builders must ensure the rigid or chopper frame can accept this specific length and the 21″ wheel utilization without interfering with the solid mount fender or altering the center of gravity unexpectedly [NEED_CITE: frame geometry changes with over-stock fork lengths].
Interpreting the 39″ Measurement and Kit Contents
The 39-inch total length is the primary dimension for judging how this springer fork assembly kit for harley-davidson will look and function on the bike. This measurement includes the shocks and the 1″ stem, ensuring the front end sits at the correct height for a +12″ over stock configuration. The kit contents provide the essential mounting hardware, including the neck post, top nut, crown nut, and top for clamp without ears, but the axle kit, risers, brake disc, wheel, and headlamp must be sourced separately to complete the build.
The Hidden Cost of Incorrect Fitment on Early and Late Frames
Ordering a springer fork assembly kit for harley-davidson without verifying the exact model year often leads to the bike sitting on the lift for weeks. Early frames like the pre-1984 FL and FX have different steering head dimensions compared to the later FXST and FLST Softail models. If the neck post and 1″ stem do not match the frame’s steering head, the entire 39-inch assembly cannot be mounted, resulting in wasted time, return shipping costs, and delayed project completion [NEED_CITE: steering head dimension variations across model years].
Sourcing Front-End Depth and Chrome Finish Consistency
We produce front-end and chassis parts in our own facility, ensuring front-end depth with complete springer assemblies and multiple over-stock lengths available in one catalogue. The chrome finish on this 39″ springer fork assembly kit for harley-davidson is applied consistently across main front-end lines to prevent batch variations when parts are fitted side by side. We also offer a minimum order from one piece, allowing custom builders and repair shops to order a single assembly for a specific project without meeting high volume requirements.
Documentation Provided with Your Order
- Fitment sheet stating applicable platforms and year ranges for the 39″ assembly
- Key dimensions document detailing the +12″ over stock length and 1″ stem diameter
- Cross-reference sheet with OEM numbers marked reference only
- Finish specification for the chrome plating process
- Quality inspection record for the included shocks and hardware
###收货与装车前核对 Checklist
- Verify the kit includes the neck post, top nut, crown nut, top for clamp, 1″ stem, and shocks.
- Confirm the 39″ total length matches your frame geometry for the +12″ over stock setup.
- Check that the 1″ stem diameter aligns with your specific model year’s steering head.
- Inspect the chrome finish for consistency before mounting the 21″ wheel and solid mount fender.
- Ensure the axle kit, risers, brake disc, and headlamp are sourced separately before assembly.
Requesting a Fitment Check for Your Build
Send your exact model code, year range, and frame type to verify if this springer fork assembly kit for harley-davidson fits your project. Provide photographs or measurements of your current steering head if the year is unknown, and specify if you require a sample for fitment confirmation before placing a bulk order. We will cross-reference your details against the FL, FX, FXST, and FLST platforms to ensure the 39-inch length and 1″ stem are correct for your build.
Frequently Asked Questions
Q: How to confirm my Harley-Davidson model year fits this 39″ springer fork?
A: You must verify the exact model code and year range, as frame dimensions change across generations. The FL platform spans 1948-1984, FX covers 1971-1984, FXST is 1984-1999, and FLST is 1986-1999. Confirm that your specific frame geometry can accommodate the +12″ over stock length and the included 1″ stem before ordering.
Q: What is included in the spring fork assembly kit and what must be ordered separately?
A: The kit includes the neck post, top nut, crown nut, top for clamp without ears, 1″ stem, and shocks. You must order the axle kit, risers, brake disc, wheel, headlamp, and mounting bracket separately. The assembly utilizes a 21″ wheel and solid mount fender, which are also not included in the base kit.
Q: How does the +12″ over stock length affect my chopper’s frame geometry?
A: The +12″ over stock configuration, with a total length of 39″ measured from the top triple tree to the rear rocker stud, directly alters rake and trail. This changes the front-end profile and ride height. You must confirm your rigid or chopper frame is designed for this specific length to ensure proper steering geometry and avoid mounting issues.
Q: Can I order a single springer fork assembly kit for a custom build?
A: Yes, we support a minimum order from one piece, which is ideal for custom builders and repair shops working on a single project. You can order one 39″ chrome springer fork assembly kit for your specific build. We also offer sample supply for fitment confirmation before you commit to larger bulk orders for your catalogue.
