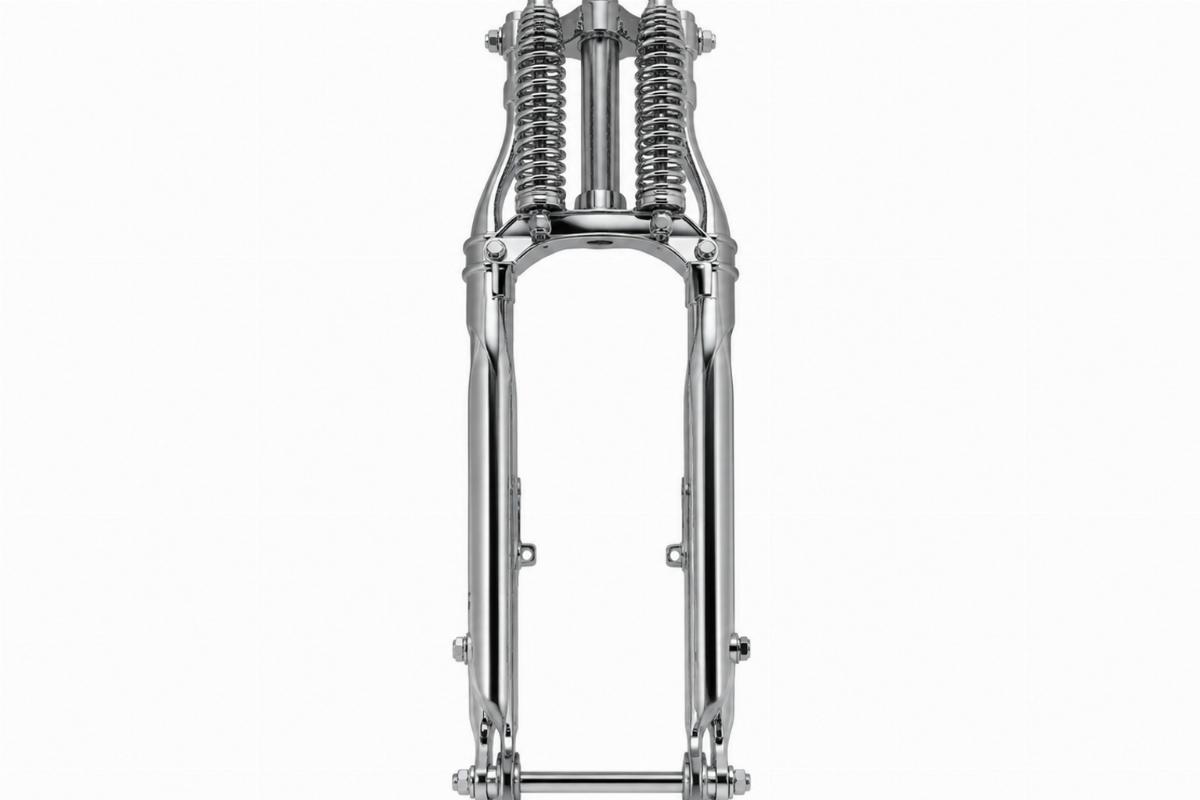

Aftermarket Replacement 20-1/2″ Wide Spring Fork Assembly for FL FX FLST FXST
Single-Piece Minimum Order — We supply individual aftermarket units for custom builders and restoration shops without blocking bulk thresholds.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Wide Spring Fork Assembly |
| Finish | Chrome |
| Length | 20-1/2″ |
| Width | Wide |
| Axle Compatibility | 3/4″ (rockers) |

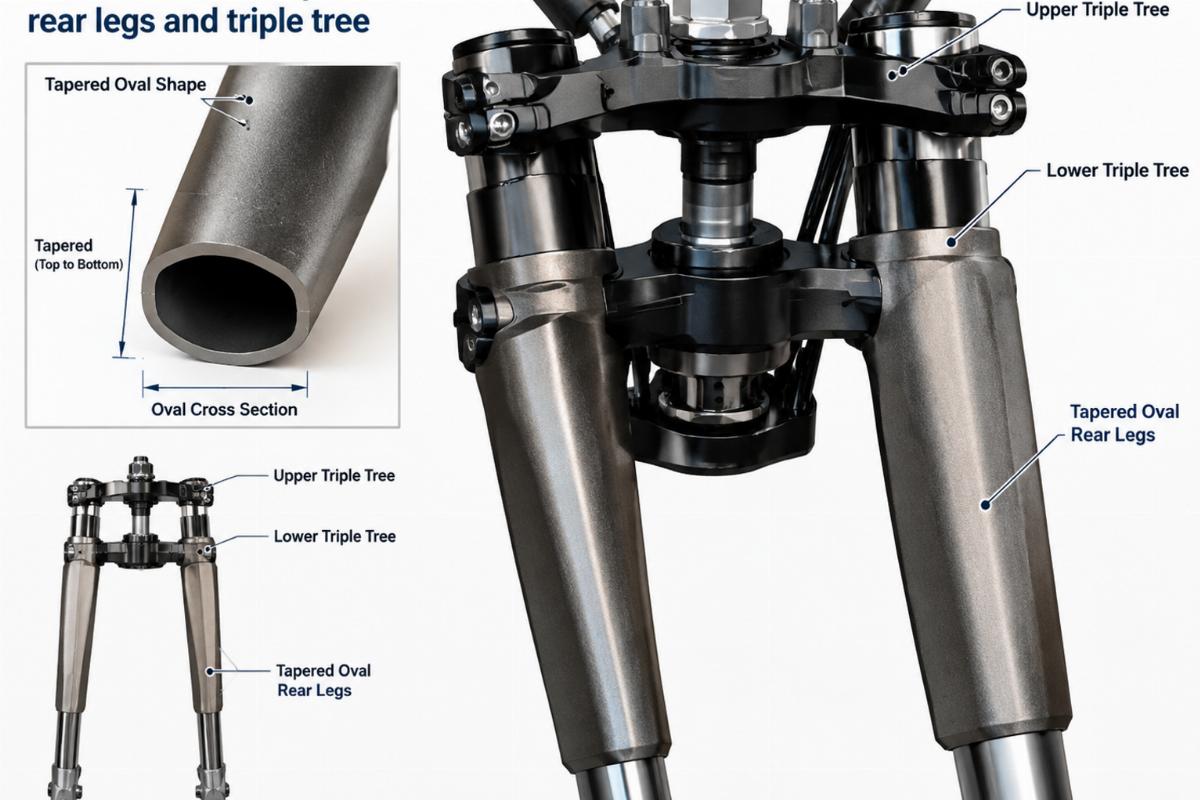

| Kit Contents | Tapered oval rear legs, springs, neck stem, top triple tree, axle, shocks |
| Condition | Pre-production sample with cosmetic imperfections |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| FL | 1948-1984 | For single or dual disc. Rockers fit 3/4″ axles only. |
| FX | 1971-1984 | For single or dual disc. Rockers fit 3/4″ axles only. |
| FXST | 1984-1999 | For single or dual disc. Rockers fit 3/4″ axles only. |
| FLST | 1986-1999 | For single or dual disc. Rockers fit 3/4″ axles only. |
| Rigid frames | Confirm with model and year | For single or dual disc. Rockers fit 3/4″ axles only. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Confirming Axle Spacing and Length for a Wide Spring Fork Assembly for Harley-Davidson
Always verify the 20-1/2″ overall length and 3/4″ rocker axle requirement against your exact frame year before ordering.
Springer forks offered over stock often lack clear overall length or geometry details, making it hard to judge ride height and steering setup before ordering. When the axle spacing does not match the rocker specifications, the front end arrives but the wheel will not align, leaving the bike torn apart on the lift. We check the triple tree and rocker dimensions against the exact year range to prevent this mismatch [NEED_CITE: factory service manual specifications by model year].
Checking Rocker Dimensions Across Model Generations
A 20-1/2″ wide spring fork assembly for harley-davidson models looks visually similar across different generations, but the internal rocker fitment varies significantly. The rockers included in this kit are specifically sized for 3/4″ axles only. If your existing wheel hub or brake setup requires a different axle diameter, the rockers will not align properly. Verifying the triple tree width and rocker spacing against your specific platform prevents receiving a front end that cannot accommodate your wheel assembly.
Matching Brake Configurations to the Assembly
This wide spring fork assembly for harley-davidson applications supports both single and dual disc brake configurations. However, the rotor and caliper mount requirements differ between these setups. When ordering, you must confirm whether your build requires a single or dual disc mount to ensure the included axle and shocks match your braking system. Overlooking this detail means the caliper brackets will not line up with the rotor, requiring additional modification or custom fabrication [NEED_CITE: brake mount variations across springer front ends].
Interpreting the 20-1/2″ Length and Wide Stance
The 20-1/2″ overall length defines the vertical drop from the triple tree to the axle, directly influencing the ride height and front-end geometry. Combined with the wide stance of the tapered oval rear legs, this dimension alters the rake and trail of the motorcycle. A longer fork assembly raises the front end and increases the steering angle, which changes how the bike handles at low speeds and during cornering. You must calculate how this specific length interacts with your frame’s neck angle to achieve the desired geometry.
The Hidden Cost of Overlooking Axle Compatibility
Ordering a springer front end without verifying the axle diameter against the rocker specifications is a common trap. I have seen front ends arrive at the shop perfectly finished, only to sit on the bench because the 3/4″ rockers could not accommodate the customer’s 1″ axle setup. The entire assembly had to be returned, and the bike remained on the lift for weeks while a new front end was sourced. Checking these dimensions before shipping ensures the hardware aligns correctly on the first attempt.
Sourcing Directly from the Front-End Specialist
We manufacture our springer front ends and fork parts in our own facility, ensuring direct control over the production process. This wide spring fork assembly for harley-davidson builds is produced under one account and one warranty, eliminating the confusion of dealing with multiple suppliers. We offer chrome and black finish options across our main front-end lines, allowing you to match your build’s aesthetic. Furthermore, we support a single-piece minimum order, which is essential for custom builders working on one-off projects without the burden of bulk purchasing.
Documentation Included with Your Shipment
- Fitment sheet stating applicable platforms and exact year ranges for this assembly
- Cross-reference sheet with OEM numbers marked reference only for identification
- Key dimensions including the 20-1/2″ fork length and 3/4″ axle compatibility
- Finish specification detailing the chrome plating process and standards
- Quality inspection record noting the pre-production sample cosmetic imperfections
- Packing photographs showing the actual condition of the shipped components
Inspection Steps Before Installation
- Verify the kit includes tapered oval rear legs, springs, neck stem, top triple tree, axle, and shocks
- Check threaded and bearing holes for excess chrome plating before attempting installation
- Confirm the rockers are sized for your 3/4″ axle and match your wheel hub spacing
- Inspect the pre-production sample for cosmetic imperfections disclosed in the condition notes
- Ensure the axle hardware aligns with your single or dual disc brake rotor mounts
- Store the assembly in a dry environment to prevent surface corrosion before fitting
Requesting a Fitment Check for Your Build
Send your specific model designation and exact year range so we can verify the triple tree and rocker dimensions against your frame. Provide photographs or measurements of your existing axle and brake setup to confirm the 3/4″ rocker compatibility. Let us know if you require a pre-production sample to check the chrome finish and fitment before committing to a larger order.
Frequently Asked Questions
Q: How do I confirm my specific model year and frame type fits this 20-1/2″ wide springer assembly?
A: Provide your exact model designation and year range, such as a 1990 FLST or 1978 FX. We cross-reference these details against our fitment sheet to verify the triple tree spacing and rocker dimensions. This ensures the 20-1/2″ length and wide stance align correctly with your specific frame neck and axle requirements before shipping.
Q: What is included in the spring fork kit and do I need to source additional mounting hardware?
A: The kit includes tapered oval rear legs, springs, neck stem, top triple tree, axle, and shocks. It is designed as a complete front-end assembly for single or dual disc setups. However, you may need to source specific brake caliper brackets or fender mounting hardware depending on your custom build requirements and existing component compatibility.
Q: How does the 3/4″ rocker axle compatibility affect my existing wheel and brake setup?
A: The rockers in this assembly are strictly sized for 3/4″ axles. If your current wheel hub or brake rotor requires a different axle diameter, the rockers will not align. You must verify your wheel’s axle spacing and brake mount requirements to ensure they match the 3/4″ specification before ordering this wide spring fork assembly for harley-davidson applications.
Q: Can I order a single pre-production sample to check fitment and finish before placing a bulk order?
A: Yes, we support a single-piece minimum order for custom builders and restoration shops. You can order this pre-production sample to verify the 20-1/2″ length, chrome finish quality, and axle compatibility on your specific frame. This allows you to confirm the fitment and inspect the disclosed cosmetic imperfections before committing to a larger quantity.
