Aftermarket Replacement 1″ Spring Fork Neck Cup Set for Big Twin
Fitment verified by dimensions — We cross-reference steering stem tapers and bearing outer diameters against specific Big Twin frames to prevent steering bind.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Spring Fork Neck Cup Set |
| Neck Cup Size | 1″ tapered |
| Bearing Type | Timken style tapered bearing race |
| Outer Diameter | 1.787″ |
| Inner Diameter | 0.998″ |
| Finish | Zicad plated (dull shade of zinc) with chrome top nut |

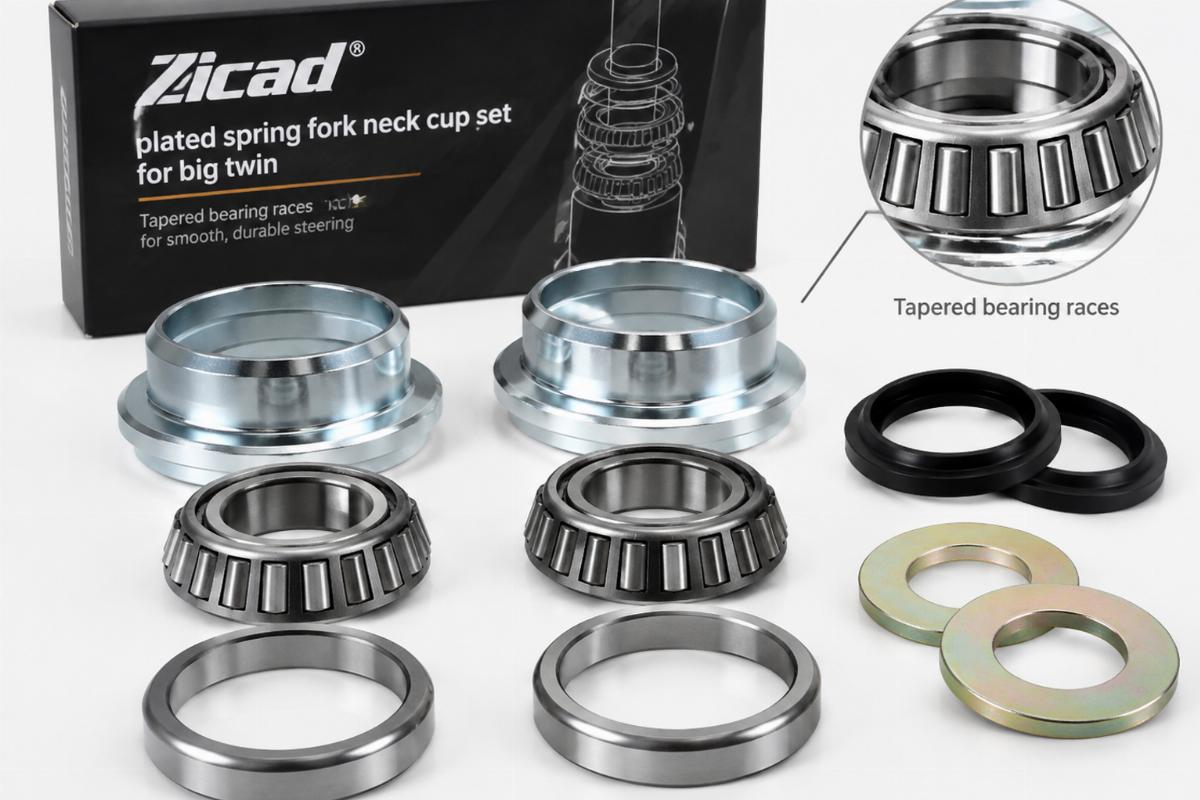

| Kit Contents | Spring Fork shape neck cup, ball bearings, upper and lower races, chrome top nut with pressed dust cover |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Big Twin Spring Forks | Confirm with model and year | Verify 1″ tapered neck cup size and 1.787″ bearing OD against the specific frame neck. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Standard Neck Cup Listings Fail on Classic Springers
Mismatched stem tapers cause immediate steering bind during the first test ride.
Head cup and neck bearing sizes differ between early and late frames, and generic listings often omit the exact bearing type or dimensions required for a proper fit. When a 0.998″ inner diameter race is installed on an earlier straight fork stem instead of a tapered one, the steering locks up completely. Builders and repair shops need exact dimensional verification rather than vague platform claims to avoid leaving a custom build stuck on the lift [NEED_CITE: frame neck specifications and stem taper variations across Big Twin model years].
Checking the 1″ Tapered Neck Cup Profile
Determining whether this spring fork neck cup set for big twin models fits your specific build requires measuring the steering stem taper and verifying the 1.787″ outer diameter against the frame neck. The 1″ tapered design is engineered to seat correctly on matching stems, ensuring the bearing races align without binding. If your frame uses a straight stem, this tapered race will not seat properly, regardless of the platform designation.
Verifying Timken Style Bearing Dimensions
The included Timken style bearings feature a 1.787″ outer diameter and a 0.998″ inner diameter, which must match your existing steering stem and frame neck measurements exactly. The recessed taper on the lower bearing is designed to fit over the lower bearing guard, creating a secure profile for the tapered bearing race. Always measure the stem taper before clearing the fitment to ensure the bearing 44649 profile matches your specific setup [NEED_CITE: steering head bearing dimension changes across custom springer builds].
Understanding the Zicad Plated Finish

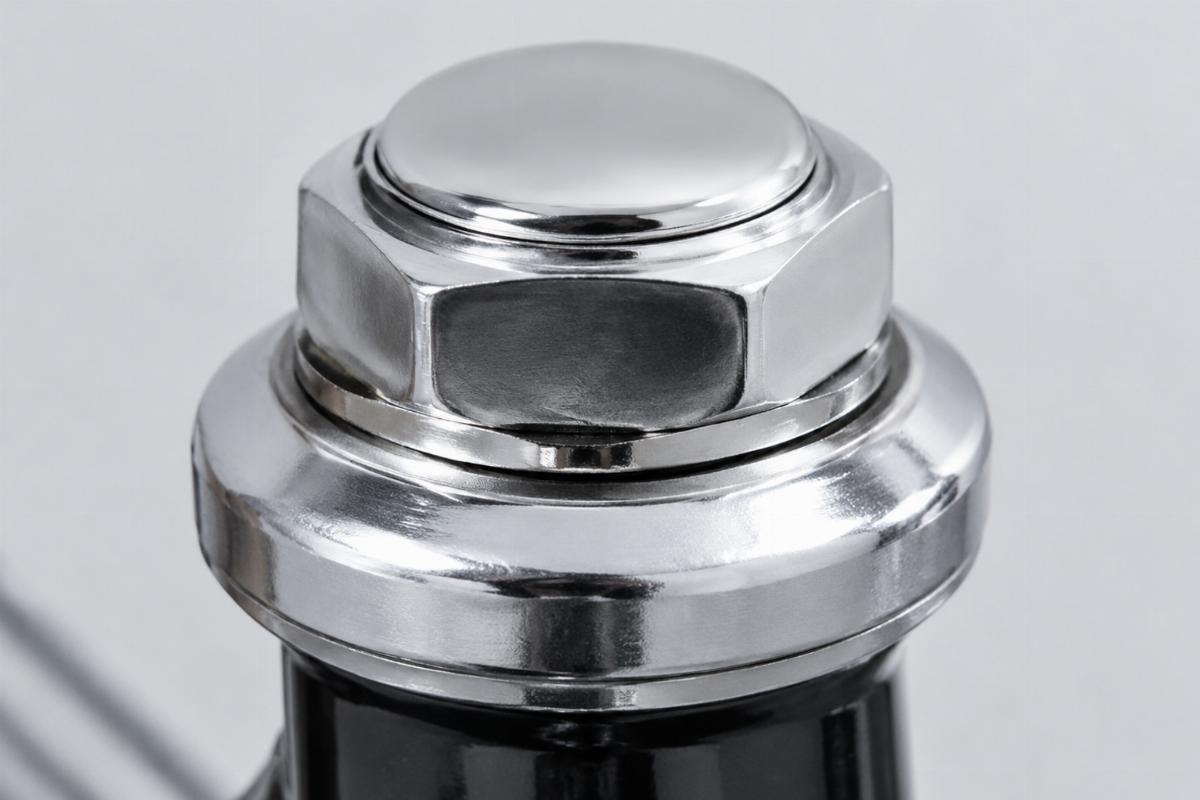

The Zicad plated finish provides a dull shade of zinc similar to cadmium, offering a specific visual profile for custom springer front ends. This finish is paired with a chrome top nut, creating a contrast that matches period-correct aesthetics. Finish consistency between batches is verified to ensure the dull zinc shade and chrome top nut match when ordered for a complete front end assembly.
The Hidden Cost of Incorrect Bearing Dimensions
Ordering a neck cup set without confirming the 1.787″ outer diameter can result in a part that physically drops into the frame neck but fails to support the steering load. When the inner diameter race does not match the stem taper, the steering binds completely, forcing the builder to disassemble the front end and source the correct replacement. This delays the build timeline and requires additional labor to correct a fitment error that could have been caught during the initial measurement phase [NEED_CITE: consequences of mismatched steering head components in custom chassis builds].
Sourcing with Dimensional Certainty
We verify the 1″ tapered neck cup size and 1.787″ bearing dimensions against the Big Twin platform before quoting. Our catalogue provides front-end depth, keeping complete springer assemblies and early springer parts in one place for custom builders. We offer a minimum order from one piece to support single-bike custom builds without blocking your shop. Cross-reference sheets are provided to identify parts when the original number is unknown, and sample supply is available for fitment confirmation before bulk orders.
Documentation and Fitment Records
- Fitment sheet stating applicable platforms and confirming the 1″ tapered size.
- Key dimensions sheet listing the 1.787″ outer and 0.998″ inner bearing diameters.
- Finish specification detailing the Zicad plated dull zinc shade and chrome top nut.
- Cross-reference sheet for identification when the original part number is unknown.
- Quality inspection record verifying the Timken style bearing tolerances.
Pre-Installation Verification Steps
- Verify the 1″ tapered neck cup matches your specific Big Twin steering stem taper.
- Measure the frame neck to confirm the 1.787″ bearing outer diameter fits correctly.
- Check that the kit includes the upper and lower races and the pressed dust cover.
- Inspect the Zicad plated finish and chrome top nut for consistency before assembly.
- Ensure the lower bearing guard is compatible with the recessed taper of bearing 44649.
Requesting a Fitment Check
Send your model and year along with a photograph or measurements of your existing steering stem to verify if this spring fork neck cup set for big twin frames is the correct match. Specify the required finish and quantity, and let us know if you need a single sample kit for fitment confirmation before placing a bulk order. We will cross-reference your dimensions against our Big Twin platform data and provide a fitment sheet.
Frequently Asked Questions
Q: How do I confirm if this 1″ tapered neck cup set fits my specific Big Twin Spring Fork model year?
A: You must measure your steering stem taper and verify the 1.787″ outer diameter against your specific frame neck. The 1″ tapered design requires a matching tapered stem; if your frame uses a straight stem, this set will not fit. We provide a fitment sheet confirming the dimensions against the Big Twin platform before you order.
Q: What are the exact dimensions of the Timken style bearings included in this kit?
A: The Timken style tapered bearing race has an outer diameter of 1.787″ and an inner diameter of 0.998″. The lower bearing features a recessed taper designed to fit over the lower bearing guard. These exact dimensions must match your existing steering stem and frame neck measurements to prevent steering bind.
Q: What does the Zicad plated finish look like compared to standard chrome or zinc?
A: The Zicad plated finish provides a dull shade of zinc that is similar to cadmium, offering a specific visual profile for custom springer front ends. It is paired with a chrome top nut to create a contrast. We verify finish consistency between batches to ensure the parts match when fitted side by side.
Q: Does this kit include all necessary upper and lower races and the top nut?
A: Yes, the kit includes the Spring Fork shape neck cup, ball bearings, upper and lower races, and a chrome top nut with a dust cover pressed on. All components required for the steering head assembly are included, ensuring you have the complete set needed for your custom springer build without missing parts.
Q: Can I order a single sample kit to verify the fitment on my custom springer build before buying in bulk?
A: Yes, we support a minimum order from one piece to accommodate single-bike custom builds. You can order a single sample kit to verify the 1″ tapered neck cup size and bearing dimensions on your specific frame before placing a larger bulk order for your shop or distribution catalogue.
