22″ Custom Springer Fork Kit Black – Fitment Checked

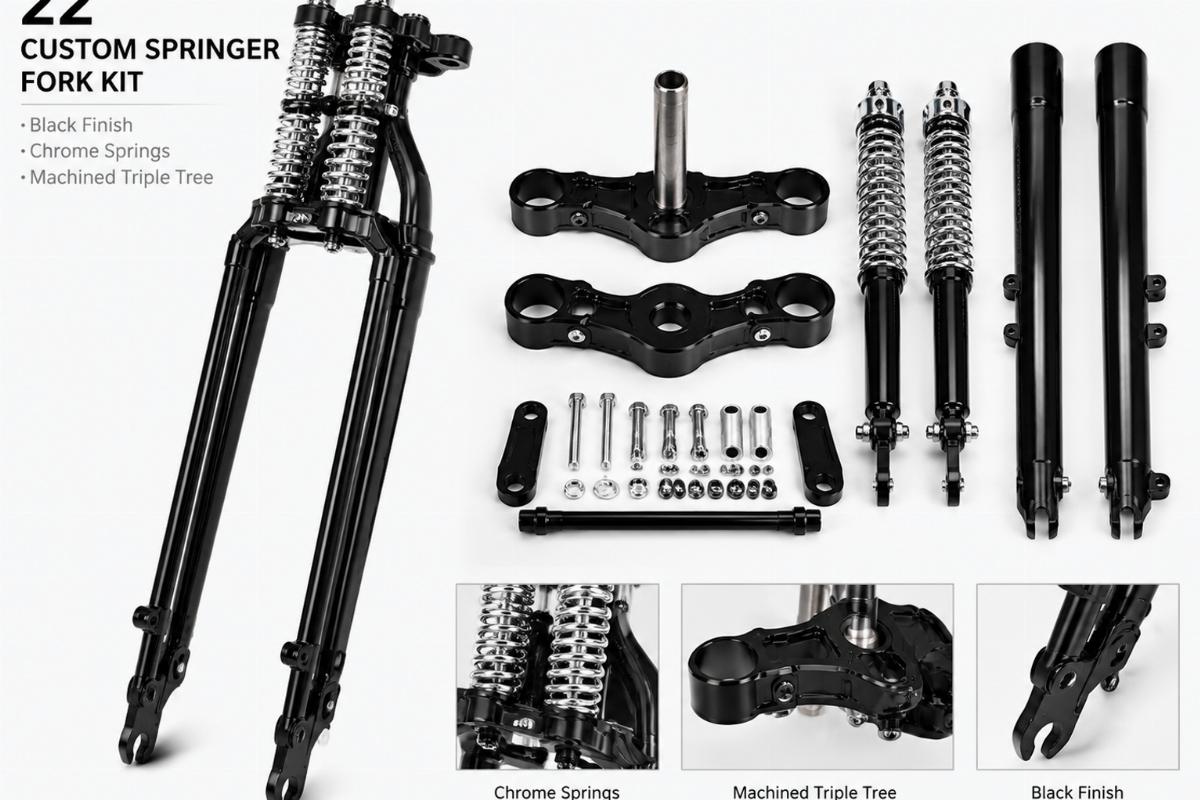

In-house springer production — We manufacture complete springer assemblies and verify every dimension, from triple tree spacing to rocker offset, before this 22″ custom springer fork kit leaves our facility.
Product Specification
Part Type | Custom Springer Fork Kit
| Parameter | Value |
|---|---|
| Finish | Black (kit), Chrome (springs, top triple tree) |
| Length | 22″ |
| Thread | 1/2″ x 20 (legs) |
| Axle Assembly | 3/4″ |
| Bearing Type | 1″ taper (available separately) |
| Top Triple Tree | Machined chrome design without ears |
| Rockers | Right rocker is NOT offset |
| Kit Contents | Spring fork kit, 3/4″ axle assembly |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| Not stated | Not stated | For custom brake and spool wheel installation; confirm exact frame geometry and rocker offset requirements. |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Resolving Rocker Offset and Length Confusion in Over-Stock Kits
Always confirm the right rocker offset and exact 22″ length impact on frame geometry before ordering.
Custom springer forks offered over stock frequently lack clear statements on overall length and rocker alignment, leaving builders unable to judge ride height or wheel centering [NEED_CITE: frame geometry specifications for custom springer installations]. A builder once ordered a 22-inch over-stock springer kit but only provided the model, not the year. We shipped a kit with an offset right rocker, and when it arrived, the custom spool wheel and brake mount would not align because the frame required a non-offset rocker. That mistake taught us to verify the exact year range and rocker offset before quoting any 22″ custom springer fork kit, ensuring the 1/2″ x 20 leg threads and triple tree spacing actually work on the bike.
Confirming Triple Tree Spacing and Axle Alignment
When evaluating a 22″ custom springer fork kit for a custom build, the machined chrome top triple tree without ears dictates the handlebar mounting options and overall front-end profile. You must verify that the 3/4″ axle assembly included in the kit matches your custom wheel hub width. Using spacers for the axle is often required to center the wheel properly within the fork legs, and failing to account for this spacing can lead to severe alignment issues with the brake caliper mounts.
Checking Thread Pitch and Bearing Compatibility

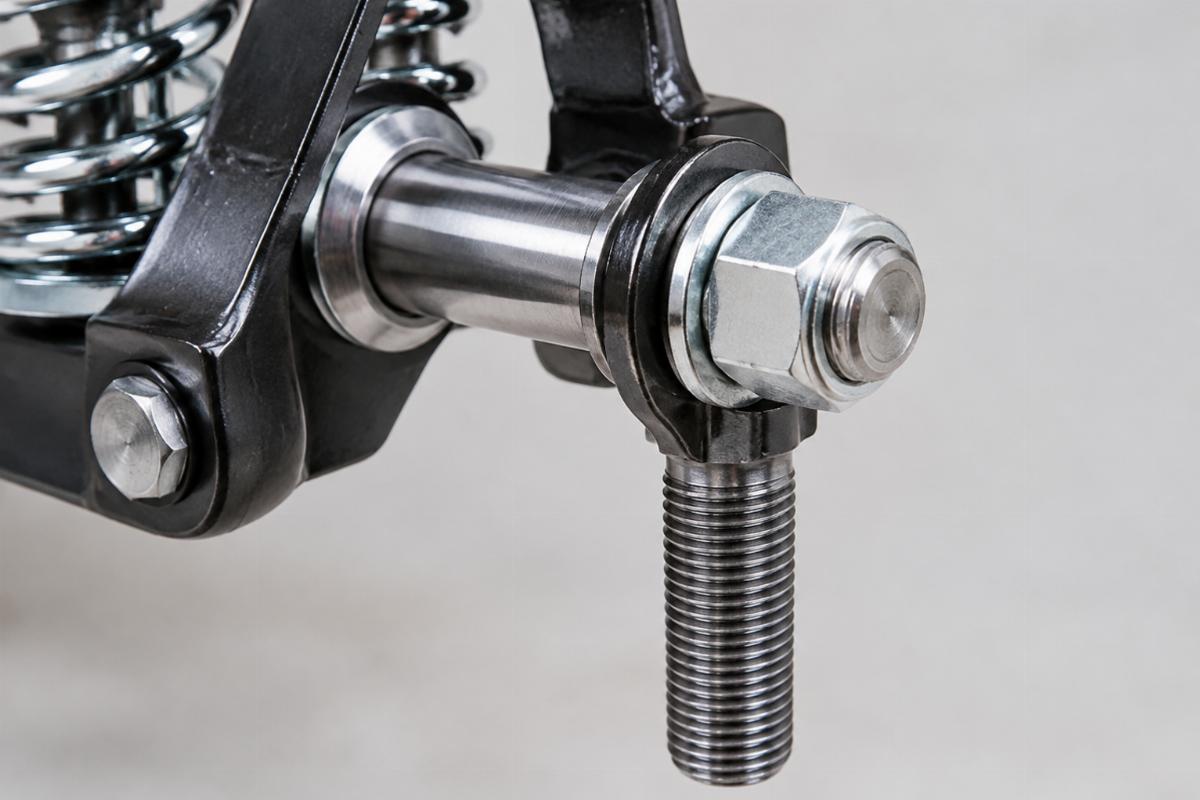

The 1/2″ x 20 thread on the fork legs is a critical dimension for attaching the custom brake mounts and fender hardware. If your build requires a different steering stem setup, note that the 1″ taper bearing kit is available separately and is not included in the base spring fork kit contents [NEED_CITE: steering head bearing cross-reference charts by frame year]. Ensuring the bearing type matches your frame’s neck dimensions prevents premature wear and guarantees the front end rotates smoothly without binding.
The Hidden Cost of Unverified Front-End Dimensions
Ordering a front end without confirming the rocker offset or triple tree width often results in the bike sitting on the shop floor, unable to be assembled. When a non-offset right rocker is required but an offset one is shipped, the wheel cannot be centered, and the brake caliper will not line up with the rotor. This forces the builder to halt the project, return the kit, and wait for the correct 22″ custom springer fork kit, delaying the build timeline and increasing labor costs [NEED_CITE: shop workflow delays caused by incorrect front-end fitment].
Sourcing Verified Front-End Components
We produce front-end and chassis parts in our own facility, allowing us to control the dimensions of every 22″ custom springer fork kit from the raw materials to the final assembly. Our catalogue offers front-end depth, combining complete springer assemblies with multiple over-stock lengths and specific finish options like the black kit with chrome springs. We provide a cross-reference against Harley-Davidson OEM numbers marked reference only, and we support a minimum order from one piece, making it easy for a shop building a single custom bike to get the exact parts needed.
Documentation and Fitment Records
- Fitment sheet stating applicable platforms and year ranges verified before quotation
- Cross-reference sheet with OEM numbers marked reference only for identification
- Key dimensions including 22″ fork length, 3/4″ axle size, and 1/2″ x 20 thread
- Finish specification detailing the black kit and chrome spring components
- Quality inspection record confirming the right rocker is non-offset
- Packing photographs showing the included 3/4″ axle assembly and hardware
Pre-Installation Inspection and Verification
- Verify the 22″ overall length and confirm the right rocker is non-offset for your frame
- Check the 1/2″ x 20 leg threads for damage before mounting custom brake hardware
- Inspect the black finish on the kit and chrome finish on the springs for consistency
- Confirm the 3/4″ axle assembly slides freely and matches your wheel hub spacing
- Ensure the machined chrome top triple tree without ears aligns with your riser setup
- Store the 1″ taper bearing kit in a dry environment if it is not immediately installed
Requesting a Fitment Check and Quote
Send your exact model, year, and a photograph of your current front end or frame neck to verify if this 22″ custom springer fork kit fits your geometry. Provide the required axle width and confirm if you need the 1″ taper bearing kit included in the shipment. Let us know if you require a sample for fitment confirmation before placing a bulk order for your shop.
Frequently Asked Questions
Q: How do I confirm if this 22″ springer fork kit fits my specific custom frame?
A: You must verify the required rocker offset and triple tree spacing for your frame. Since platform and year ranges are not pre-assigned for this custom kit, send us your frame measurements and a photograph. We will check the 22″ length impact on your geometry and confirm if the non-offset right rocker matches your brake and spool wheel setup before quoting.
Q: Does this 22″ custom springer fork kit include the steering head bearings?
A: No, the 1″ taper bearing kit is available separately and is not included in the base kit contents. The kit includes the spring fork assembly, 3/4″ axle assembly, and the machined chrome top triple tree. You must verify your frame’s neck dimensions and order the correct bearing kit separately to ensure proper steering stem fitment.
Q: Can I order a single 22″ custom springer fork kit for a one-off build?
A: Yes, we support a minimum order from one piece. You do not need to meet a high minimum quantity to purchase this kit for a single custom project. We will still verify the fitment dimensions, provide a fitment sheet, and supply the necessary documentation to ensure the black and chrome components match your build requirements.
Q: What dimensions must I measure to ensure the custom wheel centers correctly?
A: You need to measure your custom wheel hub width to confirm it matches the included 3/4″ axle assembly. You must also account for axle spacers required to center the wheel between the fork legs. Additionally, verify that the 1/2″ x 20 leg threads align with your custom brake mount and fender hardware to prevent alignment issues during assembly.
