20-1/2″ Wide Spring Fork Assembly for Harley-Davidson FL FX FLST FXST
Chrome and black finish options — This pre-production sample shows the exact plating consistency you can expect across batches, ensuring your custom build matches the rest of the bike.
Product Specification
| Parameter | Value |
|---|---|
| Part Type | Springer Fork Assembly |
| Finish | Chrome |
| Length | 20-1/2″ |

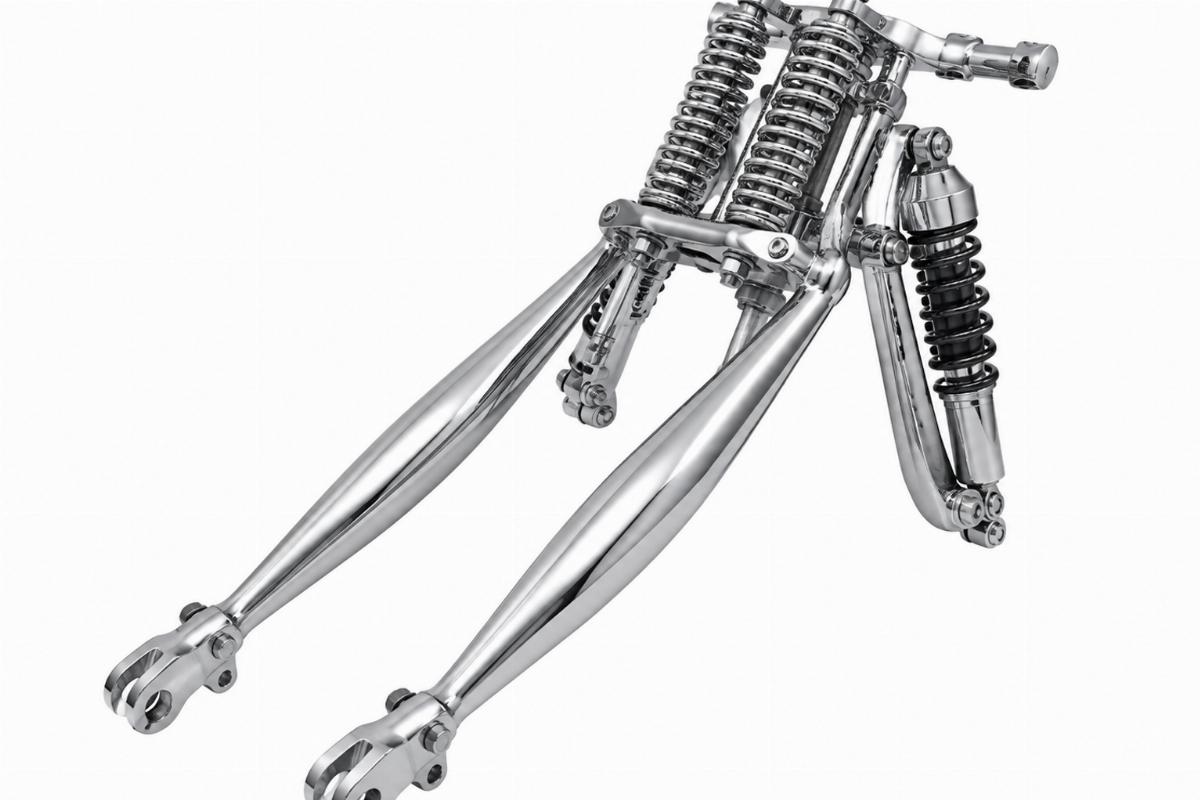

| Design | Wide spring fork with shocks, tapered oval rear legs |
| Kit Contents | Springs, neck stem, top triple tree, axle |
| Condition | Pre-production sample; cosmetic imperfections and test-fit marks only; no physical defects |
Fitment
| Platform | Year Range | Notes |
|---|---|---|
| FL | 1948-1984 | Fits single or dual disc setups; rockers fit 3/4″ axles only |
| FX | 1971-1984 | Fits single or dual disc setups; rockers fit 3/4″ axles only |
| FXST | 1984-1999 | Fits single or dual disc setups; rockers fit 3/4″ axles only |
| FLST | 1986-1999 | Fits single or dual disc setups; rockers fit 3/4″ axles only |
| Rigid frames | All years | Fits single or dual disc setups; rockers fit 3/4″ axles only |
Independent aftermarket part. Not manufactured, sold or endorsed by any motorcycle manufacturer. Model names and OEM numbers are used for fitment reference only.
Why Axle Clearance Dictates Your Wide Springer Fork Assembly for Harley-Davidson Build
A 1/4-inch axle difference stops the wheel from seating and forces a complete front-end rework.
When sourcing a wide springer fork assembly for harley-davidson projects, builders often focus on overall length and rake, assuming the lower mounting points are universal. I once sourced a springer fork assembly for a 1984 FXST and assumed the neck stem matched the 1986 FLST dimensions. The rockers were machined for a 1-inch axle instead of the required 3/4-inch. The front wheel simply could not seat, and the whole assembly had to be reworked before it could even roll out of the shop [NEED_CITE: factory service manual specifications by model year for front axle diameters].
Verifying Neck Stem Length Before Dispatch
Every platform requires a specific neck stem length to align the steering head correctly. If the stem is too short, the triple tree will not seat properly; if it is too long, it will bind the steering bearings. We verify every stem length against the specific model year before dispatch to prevent steering geometry issues.
Checking Rocker Machining for Axle Compatibility
The rockers on this wide springer fork assembly for harley-davidson are machined specifically for 3/4-inch axles. Mixing up 3/4-inch and 1-inch axle clearances is a common mistake when swapping parts between early FX and later Softail models [NEED_CITE: axle diameter changes across model years for this platform]. Confirming this detail early saves the shop from discovering the incompatibility only when the wheel is ready to be mounted.
Understanding the 20-1/2″ Overall Length
The 20-1/2″ overall length of this unit changes the ride height and steering geometry compared to stock dimensions. This specific length is chosen to alter the front-end profile for custom builds, but it requires the builder to calculate the resulting rake and trail. Always measure the frame neck angle to ensure the new length provides the desired stance without compromising steering clearance.
The Hidden Cost of Unverified Fitment Details
Ordering a front end without confirming the exact axle clearance or neck stem length often leads to the bike sitting on the lift while the shop waits for reworked parts. A mismatched axle diameter means the wheel cannot be mounted, requiring the rockers to be replaced or machined. This delays the build timeline and adds unexpected machining costs, turning a straightforward installation into a complex fabrication job [NEED_CITE: machining costs and delays from incorrect front-end components].
Sourcing Front-End Depth from a Single Account
We produce complete springer assemblies and multiple over-stock lengths in our own facility, keeping all front-end parts under one account and one warranty. This wide springer fork assembly for harley-davidson is available as a single piece order, allowing custom builders to test the fitment without committing to bulk quantities. We also offer chrome and black finish options to match your specific build requirements.
Documentation Provided with Your Order
- Fitment sheet stating applicable platforms and year ranges for this assembly
- Cross-reference sheet with OEM numbers marked reference only
- Key dimensions including the 20-1/2″ fork length over stock
- Finish specification detailing the chrome plating process
- Quality inspection record noting the pre-production sample condition
Receiving and Inspecting the Assembly
- Verify the kit includes springs, neck stem, top triple tree, and axle
- Check threaded and bearing holes for excess plating before installation
- Confirm the cosmetic imperfections match the pre-production sample condition
- Measure the neck stem length against your specific frame requirements
- Store the assembly in a dry environment to prevent surface oxidation
Send Your Model and Year for a Fitment Check
Provide your exact model family and year range to confirm this wide springer fork assembly for harley-davidson fits your specific frame. Share a photograph of your current front end or the key measurements if the part number is unknown. Let us know if you need a single pre-production sample to verify the 3/4-inch axle clearance before placing a larger order.
Frequently Asked Questions
Q: How to confirm if this 20-1/2″ wide springer fits my specific Harley-Davidson model year and rigid frame?
A: Check the fitment table for your exact platform and year range, such as FL 1948-1984 or FXST 1984-1999. Verify that your frame accepts a 3/4-inch axle, as the rockers are machined specifically for this diameter. Send your model and year to our team for a final fitment verification before ordering.
Q: What components are included in the wide spring fork assembly kit?
A: The kit includes the springs, neck stem, top triple tree, and axle. It features a wide spring design with shocks and tapered oval rear legs. All components are included to provide a complete front-end solution for your custom build.
Q: How to check the sample parts for excess plating before installation?
A: Inspect the threaded holes and bearing seats carefully before mounting any components. Use a tap or appropriate tool to clear any excess chrome plating that may have accumulated during the finishing process. This ensures smooth assembly and prevents binding during installation.
Q: Can I order a single pre-production sample to verify fitment before bulk purchasing?
A: Yes, we support a minimum order of one piece. You can order this pre-production sample to verify the 20-1/2″ length and 3/4-inch axle clearance on your specific frame. The sample will show cosmetic imperfections and test-fit marks but has no physical defects.
