· Rocker grease fittings
· Fully assembled with a forged in-line top bracket without a built-in rake
· The standard length Springer (24" measured from the bottom bearing to the axle center) is comparable to a standard length FXST front end
· 1" O.D. steering stem designed for Timken® type bearings
· Both rear legs are threaded for right or left brakes
· Forged rockers for superior strength
· Rear legs are 1 piece from the rocker to the top tree
· The 3/4" O.D. axle kit includes a brake mount pivot with thrust washer and hub spacers (custom spacers may be required depending on the wheel used)
· Measures 9 1/4" between rockers
· Riser mounts are on 4 3/4" centers and threaded 1/2-20
HARDBODY

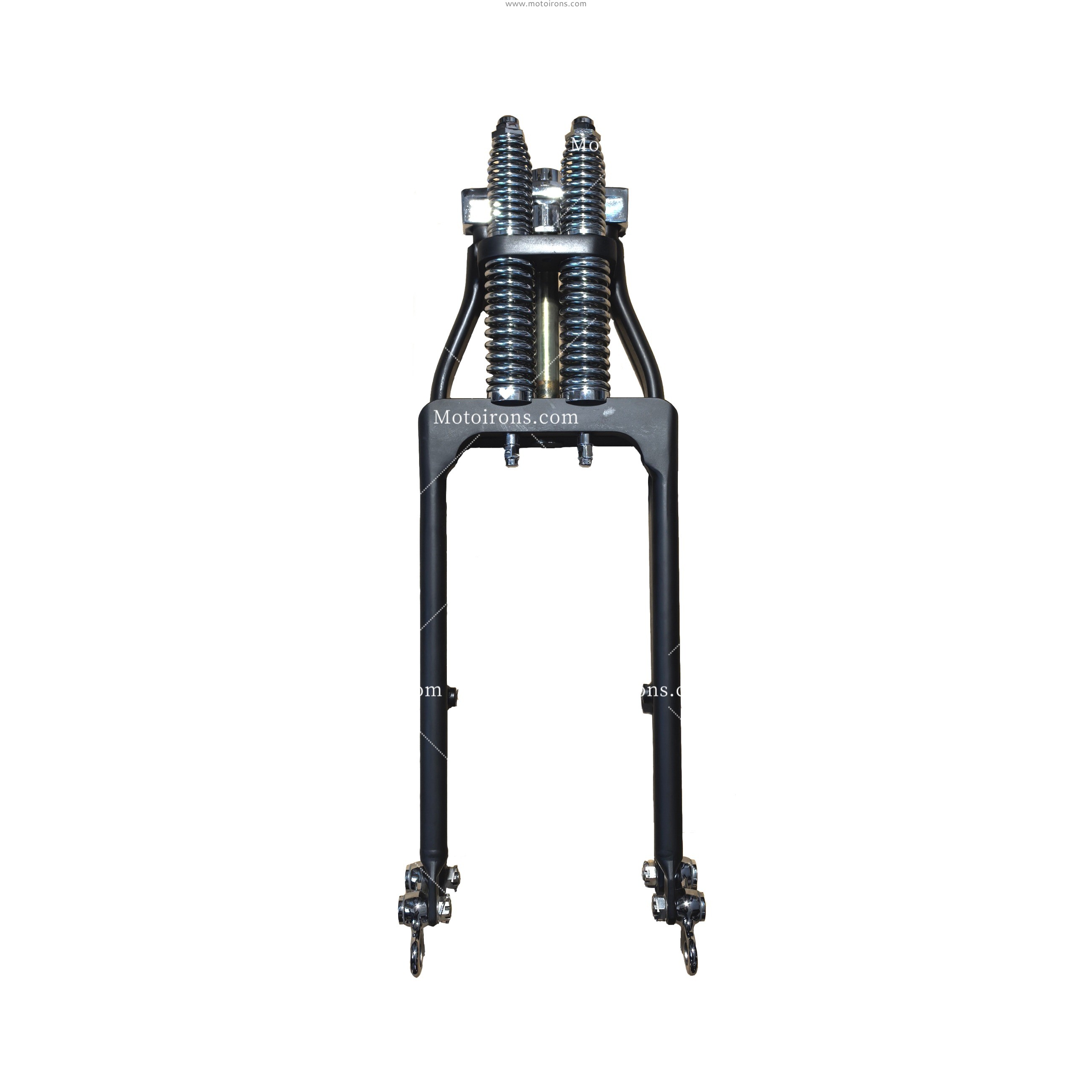

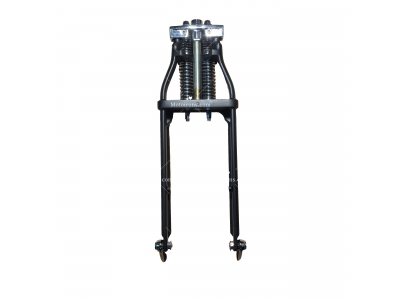

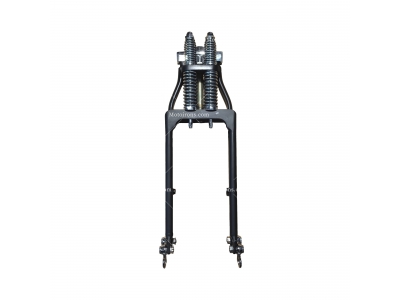

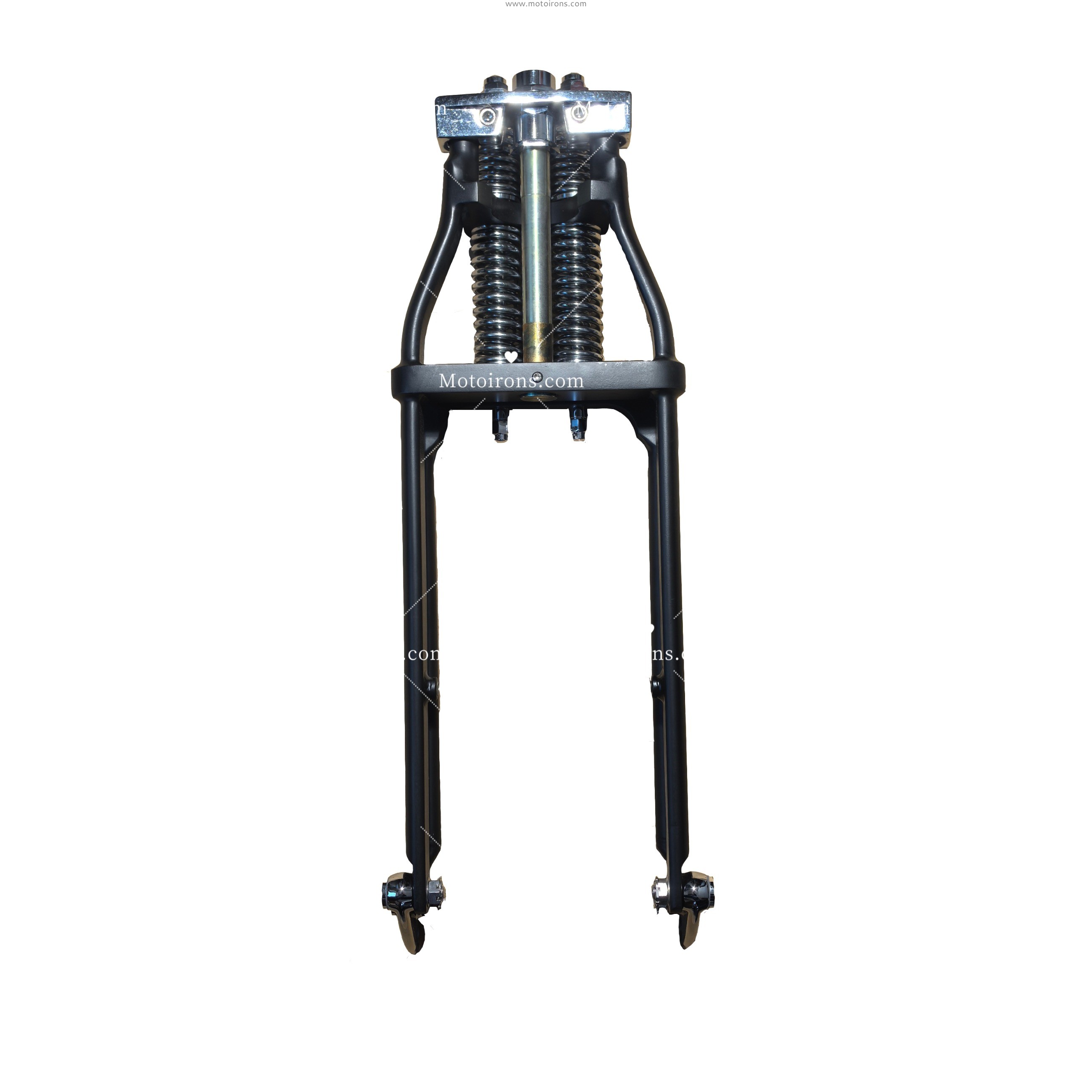

Black Springer
-4" Length, 19" Dimensions
