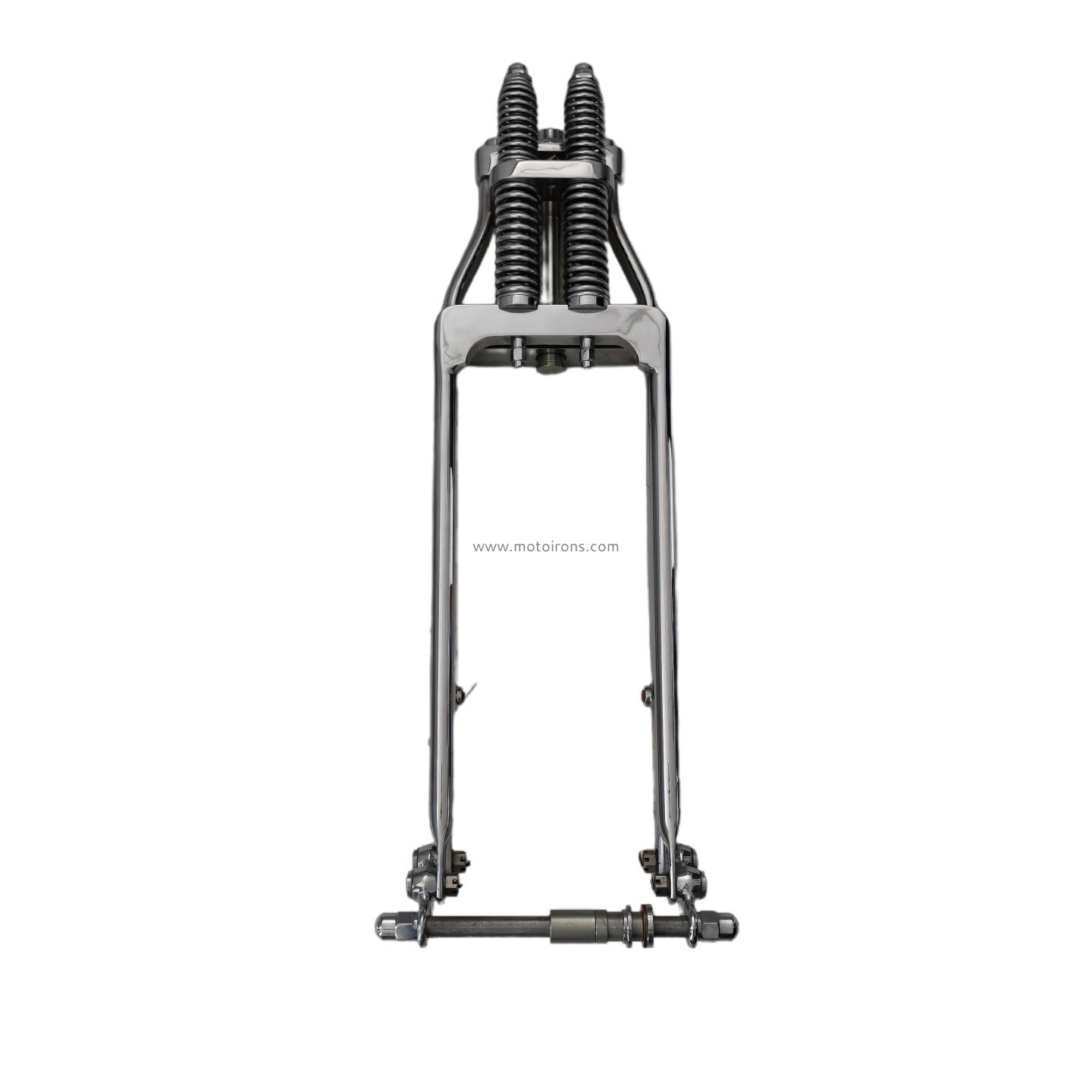

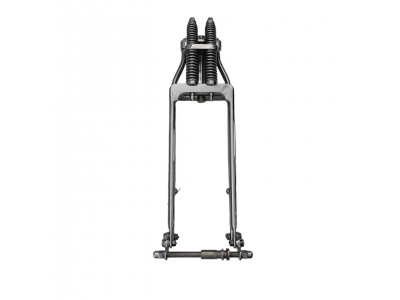

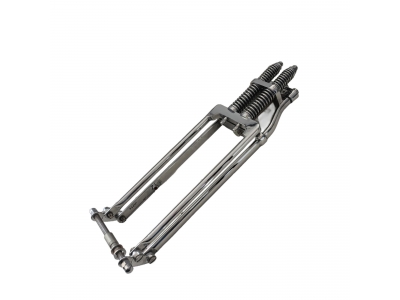

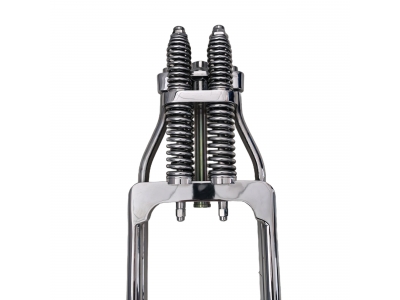

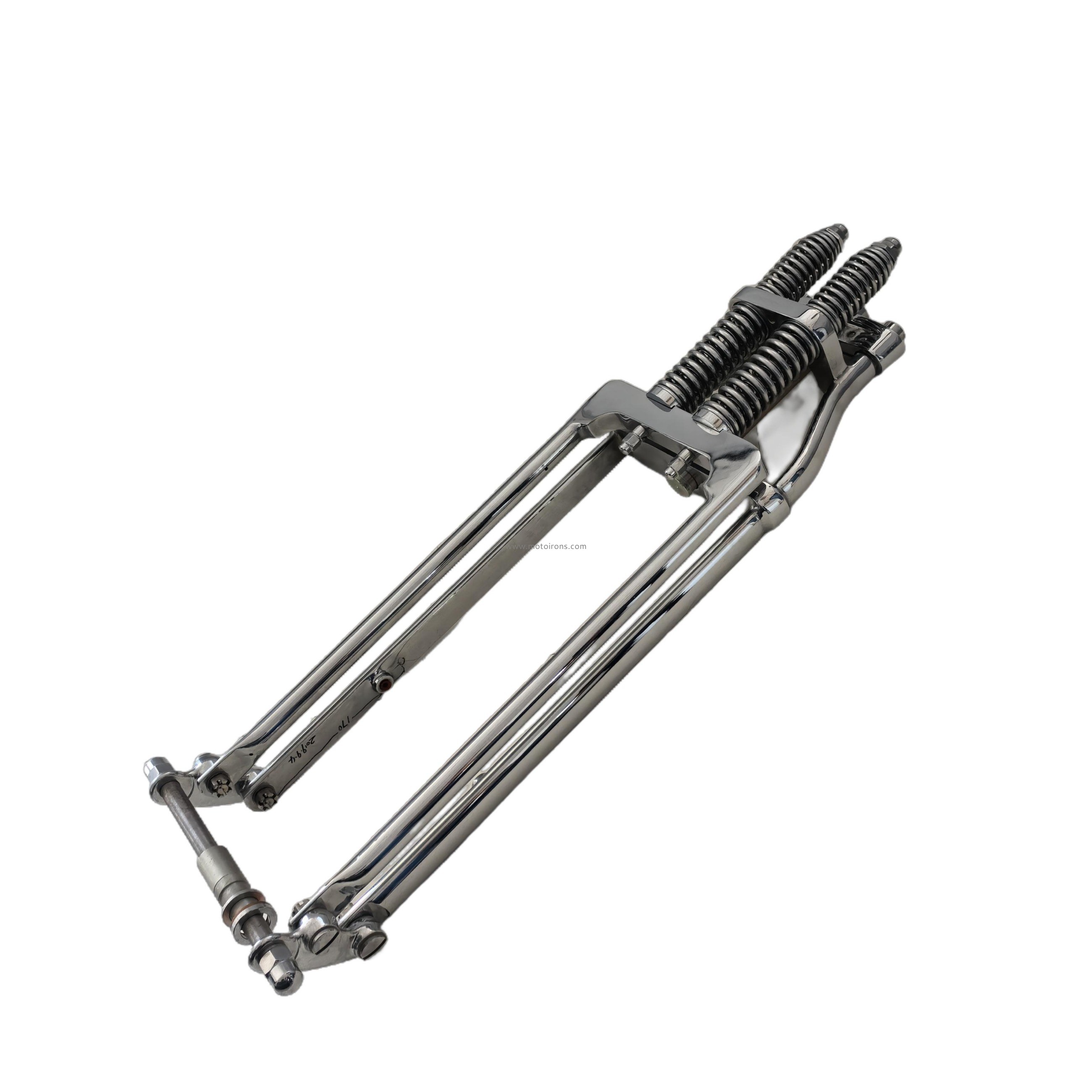

These springers rear legs for added strength. Available in chrome or black in standard length as well as -2, and +2, lengths for custom applications.
· Rocker Grease Fittings

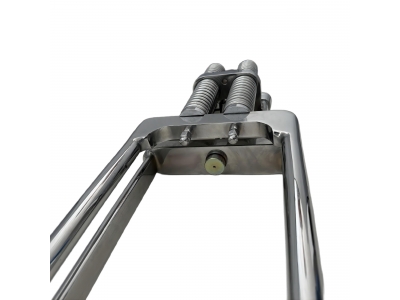

· Fully Assembled With A Forged In-Line Top Bracket Without A Built-In Rake
· The Standard Length Springer (24" Measured From The Bottom Bearing To The Axle Center) Is Comparable To A Standard Length Front End
· 1" O.D. Steering Stem Designed For Timken Type Bearings
· Both Rear Legs Are Threaded For Right Or Left Brakes

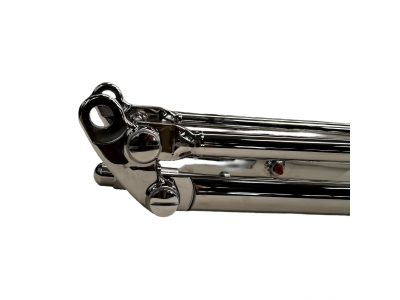

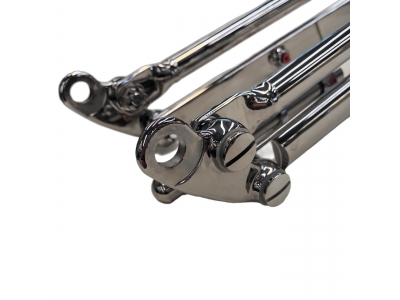

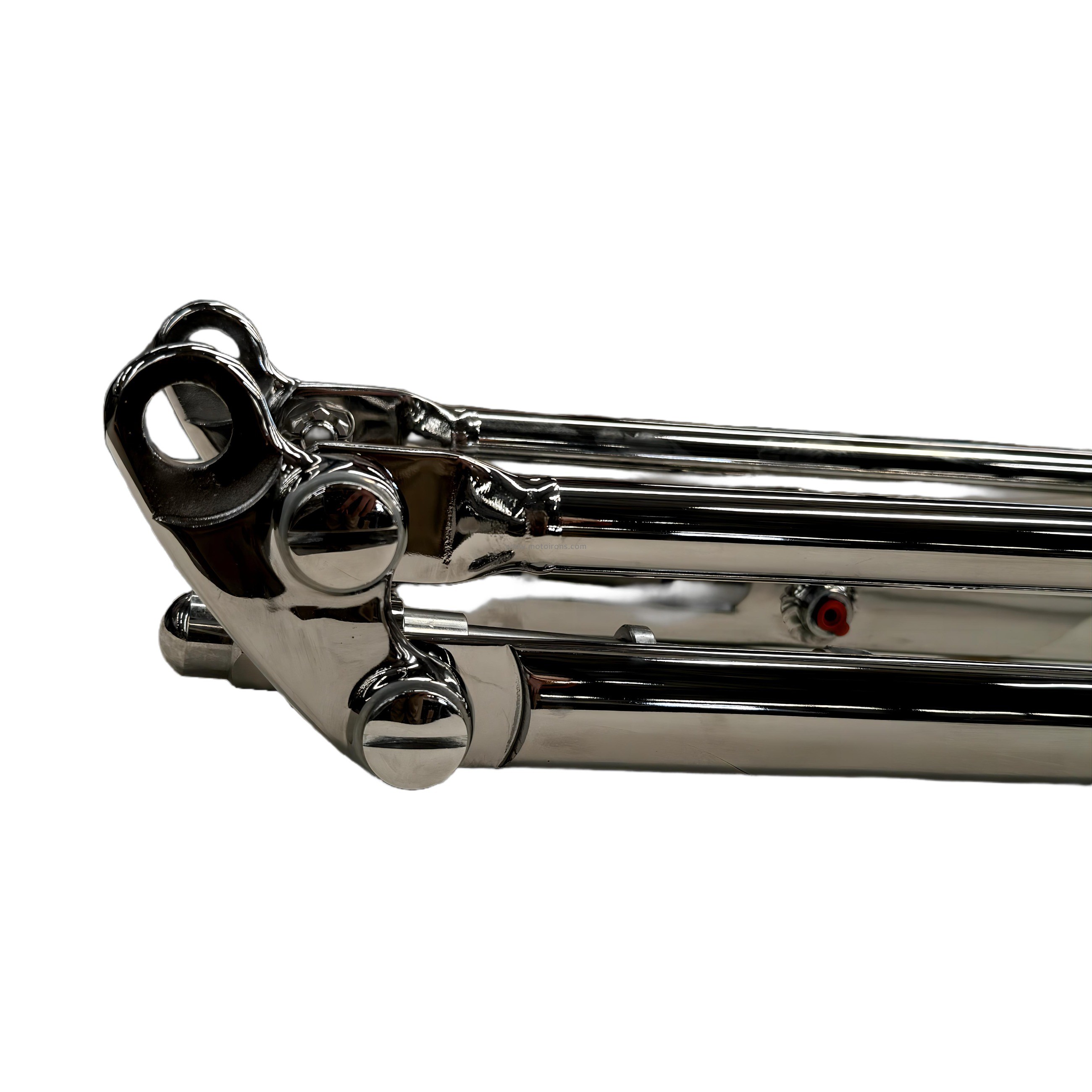

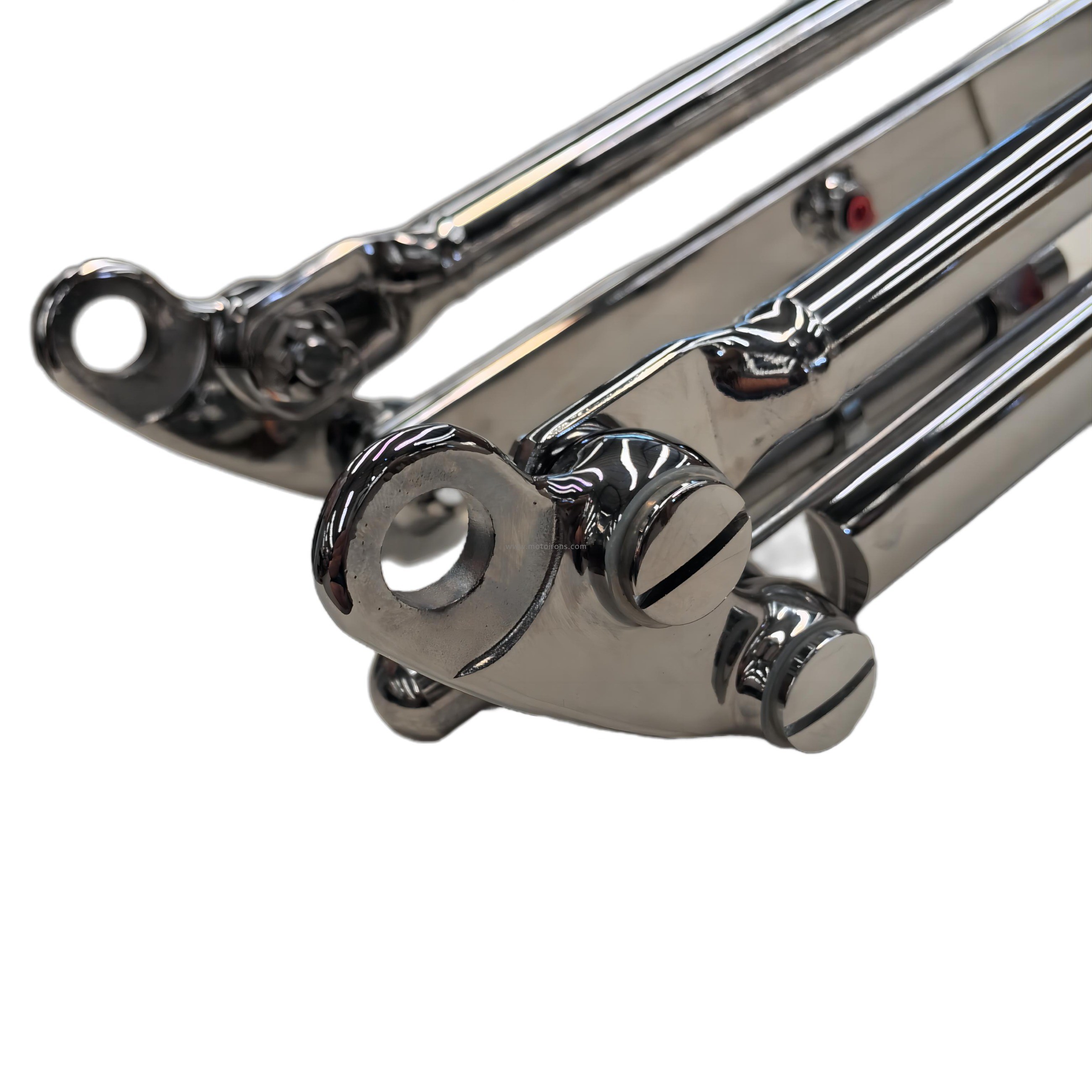

· Forged Rockers For Superior Strength
· Rear Legs Are 1 Piece From The Rocker To The Top Tree
· The 3/4" O.D. Axle Kit Includes A Brake Mount Pivot With Thrust Washer And Hub Spacers (Custom Spacers May Be Required Depending On The Wheel Used)
· 3/8”-24 Threaded Blind Hole On Fork Leg For A Brake Stay
· Measures 9 1/4" Between Rockers
· Riser Mounts Are On 4 3/4" Centers And Threaded 1/2-20
· Standard Length 24"
NOTE: This springer will NOT fit Harley-Davidson Dyna models, or 2004 & later Sportster models due to the design of the frame neck and turning radius issues.
